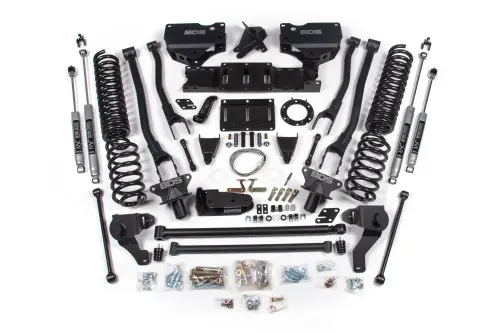

BDS1727H | BDS Suspension 8 Inch Lift Kit With 4 Link For Ram 2500 4WD (2019-2024) | Diesel | NX2 Nitro Series Shocks

8 Inch Lift Kit With 4 Link For Ram 2500 4WD (2019-2024) | Diesel | NX2 Nitro Series Shocks

BDS1727H
Pricing: $4,975.66
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Go big with the BDS Suspension engineered 8-inch lift kit with 4-Link conversion for your 2019-2024 RAM 2500 diesel powered truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 40" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied.

In the rear, careful consideration was taken to design the system for load carrying capacity, handling, and ride quality. To do this, BDS engineered new coil bucket seats to mount them outboard the frame rail similar to a leaf spring style truck. The new upper and lower coil seats require only minor drilling for mounting hardware. The new position allows for a much shorter and more stable coil spring design. This virtually eliminates any chance of coil bowing and ensures the coils react predictably throughout the full range of travel.

In addition to the coil springs/mounts, a new track bar relocation system is included to properly set the rear roll-center height and center the axle under the vehicle. The rear track bar relocation includes a new heavy duty adjustable track bar. Finishing out the rear this kit utilizes extended sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Features & Benefits

  • Heavy duty 4-link arms improve strength, handling and caster control
  • High strength progressive rate coil springs for a great ride on any terrain
  • Track bar relocation brackets to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Recommended Tires & Wheels

(Trimming may be required)

  • 38 x 15.5 with 20 x 10 and 5.5 in. Backspace
  • 40 x 13.5 with 20 x 9 and 5.5 in. Backspace

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. Aftermarket driveshaft is required
  2. For use on diesel models only
  3. Fits rear coil sprung models only (will not fit air-ride models)
  4. This kit requires the use of an aftermarket front driveshaft (not provided) in addition to the (provided) indexing ring kit - BDS122624 (6-bolt). Both must be installed, however due to variations between truck configurations we recommend installing the kit prior to taking measurements for the aftermarket front driveshaft to ensure correct length. Vehicle can be driven without front driveshaft. Kit was tested with a Drive Line Plus flange and driveshaft, however other high angle driveshaft options can be used

Installation

Est. Install Time :

8-10 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Drill / Bit Set, Pitman Arm Puller, Welding Equipment

Specification

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Coil Springs
  • Shocks Included : Yes
  • Front Lift Height : 8"
  • Rear Lift Height : 6"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2019Ram2500Big Horn4WDDIESELALLALL
2019Ram2500Laramie4WDDIESELALLALL
2019Ram2500Laramie Limited4WDDIESELALLALL
2019Ram2500Laramie Longhorn4WDDIESELALLALL
2019Ram2500Limited4WDDIESELALLALL
2019Ram2500Lone Star4WDDIESELALLALL
2019Ram2500Tradesman4WDDIESELALLALL
2020Ram2500Big Horn4WDDIESELALLALL
2020Ram2500Laramie4WDDIESELALLALL
2020Ram2500Laramie Limited4WDDIESELALLALL
2020Ram2500Laramie Longhorn4WDDIESELALLALL
2020Ram2500Limited4WDDIESELALLALL
2020Ram2500Lone Star4WDDIESELALLALL
2020Ram2500Tradesman4WDDIESELALLALL
2021Ram2500Big Horn4WDDIESELALLALL
2021Ram2500Laramie4WDDIESELALLALL
2021Ram2500Laramie Longhorn4WDDIESELALLALL
2021Ram2500Limited4WDDIESELALLALL
2021Ram2500Limited Longhorn4WDDIESELALLALL
2021Ram2500Lone Star4WDDIESELALLALL
2021Ram2500Tradesman4WDDIESELALLALL
2022Ram2500Big Horn4WDDIESELALLALL
2022Ram2500Laramie4WDDIESELALLALL
2022Ram2500Limited4WDDIESELALLALL
2022Ram2500Limited Longhorn4WDDIESELALLALL
2022Ram2500Lone Star4WDDIESELALLALL
2022Ram2500Tradesman4WDDIESELALLALL
2023Ram2500Big Horn4WDDIESELALLALL
2023Ram2500Laramie4WDDIESELALLALL
2023Ram2500Laramie Longhorn4WDDIESELALLALL
2023Ram2500Limited4WDDIESELALLALL
2023Ram2500Limited Longhorn4WDDIESELALLALL
2023Ram2500Lone Star4WDDIESELALLALL
2023Ram2500Rebel4WDDIESELALLALL
2023Ram2500Tradesman4WDDIESELALLALL
2024Ram2500Big Horn4WDDIESELALLALL
2024Ram2500Laramie4WDDIESELALLALL
2024Ram2500Laramie Longhorn4WDDIESELALLALL
2024Ram2500Limited4WDDIESELALLALL
2024Ram2500Limited Longhorn4WDDIESELALLALL
2024Ram2500Lone Star4WDDIESELALLALL
2024Ram2500Rebel4WDDIESELALLALL
2024Ram2500Tradesman4WDDIESELALLALL

Component List

1 BDS012434 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2
1 BDS012627 2019-2024 Ram 2500 6" Rear Box Kit
1 BDS012811 2019-2024 Ram 2500 / 2019-2024 Ram 3500 8" 4- Link Front Box Kit 1 of 2
1 BDS032619 2014-2024 Ram 2500 Rear 6" Coil Box Kit
2 BDS032802 2013-2024 Ram 3500 8" Front Coil-Dsl (Single Coil Only)
1 BDS122624 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel
2 BDS85754 Shock - 29.43 x 17.24 x 2-3/8 - S50/EB2
2 BDS85763 Shock- 29.8 x 17.6 x 2-3/8 - Special/EB1

Tires & Wheels

(Trimming may be required)
38 x 15.5 with 20 x 10 and 5.5 in. Backspace
40 x 13.5 with 20 x 9 and 5.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
