BDS1749FS | BDS Suspension 8 Inch Lift Kit Long Arm For Ram 2500/3500 4WD (2008-2008) | Diesel | Manual Transmission, Rear Lift Leaf Springs With 3.5 Inch Axle, Fox 2.0 Performance Series Shocks
8 Inch Lift Kit Long Arm For Ram 2500/3500 4WD (2008-2008) | Diesel | Manual Transmission, Rear Lift Leaf Springs With 3.5 Inch Axle, Fox 2.0 Performance Series Shocks
Description
Built to outperform, BDS Suspension engineered a 8-inch lift kit with long arm conversion for your 2008 Dodge RAM 2500 and 3500 diesel powered truck that maximizes performance on and off road. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires. BDS built the long lower control arms to reduce caster change through wheel travel which creates a more controlled feeling in the steering wheel. This long arm long arm system retains the factory triangulation of the arms which adds to the stability of the suspension system.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, all four control arms plus mounting bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Features & Benefits
- Tubular long arms reduce caster change and create more controlled feeling on and off road
- Heavy duty control arm brackets maintain proper suspension geometry
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front track bar relocation bracket to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
Recommended Tires & Wheels
(Trimming may be required)
- 38 x 13.5 with 17 x 9 and 4.5 in. Backspace
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Rear Lift Option
The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.
Block Kit
- Blocks are made from cast iron for strength.
- Tapered for correct pinion angle.
- Steel pin and hole are offset to restore axle position.
Leaf Springs
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Important Notes
- Measure rear axle tube before ordering. Some 4" axle models with dual overloads will require UBT4068.
- Rear lift options will not fit dually applications.
- If driveline vibration occurs, order either transfer case drop. NOTE: 122606 transfer case drop kit will only replace the OE bracket #52121938AA
- Additional front driveline modification may be required.
- Exhaust modification will be required for dual rear shock kit 122009.
- 2500 Gas models will require modification to the front exhaust crossover pipe on driver side for proper clearance when a transfer case indexing ring kit is installed
- If your Truck has had the steering gear box changed and the sector shaft diameter measures ~1-1/2"-1-5/8" you will need to add part # BDS082404 to your kit.
Installation
Est. Install Time :
8 hrsDifficulty Level :
ModerateSpecialty Tools Needed :
Cut Off Wheel or Equiv., Grinder/Sanding Disc, Pitman Arm Puller, Welding Equipment
Specification
- Front Lift Method : Coil Spring
- Rear Lift Method : Leaf Spring
- Shocks Included : Yes
- Front Lift Height : 8"
- Rear Lift Height : 5"
Application List
| Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
|---|---|---|---|---|---|---|---|
| 2008 | Dodge | Ram 2500 | Laramie | 4WD | DIESEL | ALL | ALL |
| 2008 | Dodge | Ram 2500 | SLT | 4WD | DIESEL | ALL | ALL |
| 2008 | Dodge | Ram 2500 | SLT Big Horn | 4WD | DIESEL | ALL | ALL |
| 2008 | Dodge | Ram 2500 | SLT Sport | 4WD | DIESEL | ALL | ALL |
| 2008 | Dodge | Ram 2500 | ST | 4WD | DIESEL | ALL | ALL |
| 2008 | Dodge | Ram 2500 | SXT | 4WD | DIESEL | ALL | ALL |
| 2008 | Dodge | Ram 3500 | ALL | 4WD | DIESEL | ALL | ALL |

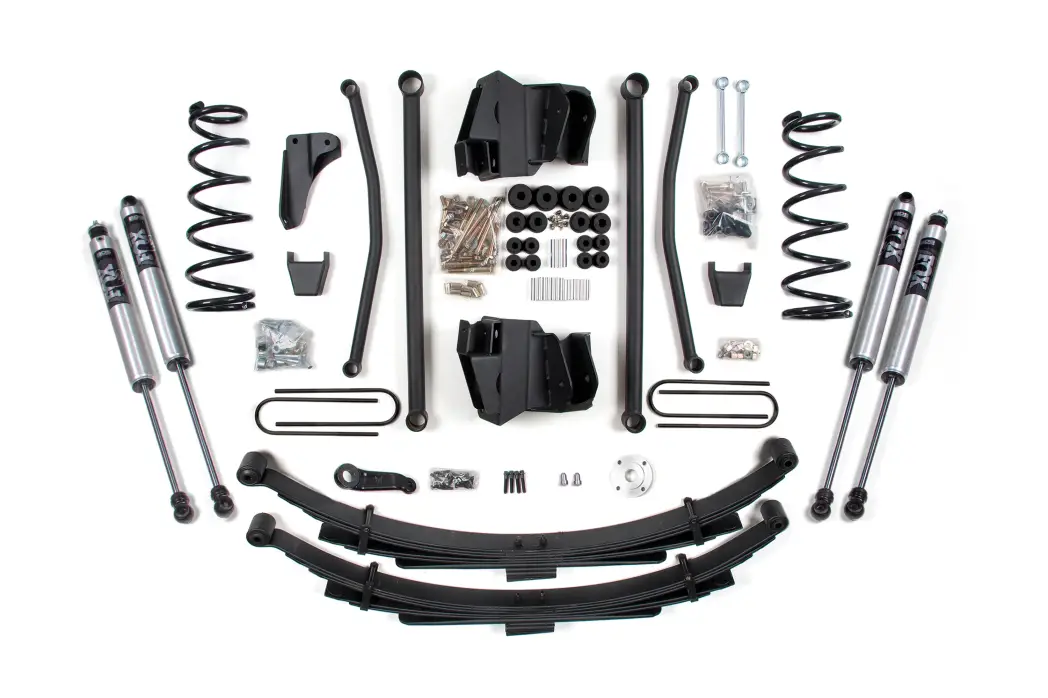

Component List
1 BDS012801 Dodge Control Arm Mounts
1 BDS012802 Dodge Control Arm Box Kit
1 BDS012804 08 Dodge Ram Long Arm Box Kit
1 BDS032801 Dodge 8in Coil spring
1 BDS122802 03-12 Dodge 2500 T-Case Index Kit (Man)
2 FOX98224751 Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
2 FOX98224761 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
4 UBT4064 Automotive Axle U-Bolt - Round
Tires & Wheels
38 x 13.5 with 17 x 9 and 4.5 in. Backspace
Details
- BDS1749FS
- BDS1749FS
- 840416408393
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L36.0000”
- Free Ground Shipping | Exclusions Apply*
