BDS1820H | BDS Suspension 4.5 Inch Lift Kit For Chevrolet Silverado / GMC Sierra 2500 HD / 3500 HD 4WD (2011-2019) | Rear Lift 3 Inch Block Kit Lift With Overload, NX2 Nitro Series Shocks
4.5 Inch Lift Kit For Chevrolet Silverado / GMC Sierra 2500 HD / 3500 HD 4WD (2011-2019) | Rear Lift 3 Inch Block Kit Lift With Overload, NX2 Nitro Series Shocks
Description
Improve the stance, performance, and capability of your 2011-2019 Chevy Silverado and GMC Sierra 2500 HD 4WD with a BDS 4.5-inch lift kit. For maximum ground clearance, BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member. This kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar links, bump stop extensions, stainless steel brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers replacement lift blocks to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear is a u-bolt flip kit for max clearance and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.
Features & Benefits
- High Clearance design w/ no torsion bar drop maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
- Choice of NX2 or FOX 2.0 gas shocks for improved performance
Recommended Tires & Wheels
(Trimming may be required)
- 35 x 12.5 with 17 x 8 and 4.625 in. Backspace
- 35 x 12.5 with 18 x 9 and 4.625 in. Backspace
- 35 x 12.5 with 20 x 9 and 6 in. Backspace
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function.
Rear Lift Option
Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Important Notes
- Torsion Bar Tool required to load/unload the torsion bars.
- Stock 17" & 18" wheels cannot be reinstalled.
- Stock 20" wheels cannot be reinstalled on 2015-2019 models
- Factory dually wheels cannot be reinstalled.
- Models with two-piece rear driveshaft may require #121612.
- Top mounted rear overload spring-equipped models require a different kit than non-overload equipped models. Be sure to select the correct option for your truck.
- Depending on the specific wheel and tire combination trimming may be required for 35x12.50s
Installation
Est. Install Time :
8-10 hrsDifficulty Level :
DifficultSpecialty Tools Needed :
Cut Off Wheel or Equiv., Reciprocating Saw, Torsion Bar Unloading Tool
Specification
- Front Lift Method : Cross-Member
- Rear Lift Method : Block
- Shocks Included : Yes
- Front Lift Height : 4.5"
- Rear Lift Height : 3"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2011 | Chevrolet | Silverado 2500 HD | ALL | ALL | ALL | ALL | ALL |
2011 | Chevrolet | Silverado 3500 HD | ALL | ALL | ALL | ALL | ALL |
2011 | GMC | Sierra 2500 HD | ALL | ALL | ALL | ALL | ALL |
2011 | GMC | Sierra 3500 HD | ALL | ALL | ALL | ALL | ALL |
2012 | Chevrolet | Silverado 2500 HD | ALL | ALL | ALL | ALL | ALL |
2012 | Chevrolet | Silverado 3500 HD | ALL | ALL | ALL | ALL | ALL |
2012 | GMC | Sierra 2500 HD | ALL | ALL | ALL | ALL | ALL |
2012 | GMC | Sierra 3500 HD | ALL | ALL | ALL | ALL | ALL |
2013 | Chevrolet | Silverado 2500 HD | ALL | ALL | ALL | ALL | ALL |
2013 | Chevrolet | Silverado 3500 HD | ALL | ALL | ALL | ALL | ALL |
2013 | GMC | Sierra 2500 HD | ALL | ALL | ALL | ALL | ALL |
2013 | GMC | Sierra 3500 HD | ALL | ALL | ALL | ALL | ALL |
2014 | Chevrolet | Silverado 2500 HD | ALL | ALL | ALL | ALL | ALL |
2014 | Chevrolet | Silverado 3500 HD | ALL | ALL | ALL | ALL | ALL |
2014 | GMC | Sierra 2500 HD | ALL | ALL | ALL | ALL | ALL |
2014 | GMC | Sierra 3500 HD | ALL | ALL | ALL | ALL | ALL |
2015 | Chevrolet | Silverado 2500 HD | ALL | ALL | ALL | ALL | ALL |
2015 | Chevrolet | Silverado 3500 HD | ALL | ALL | ALL | ALL | ALL |
2015 | GMC | Sierra 2500 HD | ALL | ALL | ALL | ALL | ALL |
2015 | GMC | Sierra 3500 HD | ALL | ALL | ALL | ALL | ALL |
2016 | Chevrolet | Silverado 2500 HD | ALL | ALL | ALL | ALL | ALL |
2016 | Chevrolet | Silverado 3500 HD | ALL | ALL | ALL | ALL | ALL |
2016 | GMC | Sierra 2500 HD | ALL | ALL | ALL | ALL | ALL |
2016 | GMC | Sierra 3500 HD | ALL | ALL | ALL | ALL | ALL |
2017 | Chevrolet | Silverado 2500 HD | ALL | ALL | ALL | ALL | ALL |
2017 | Chevrolet | Silverado 3500 HD | ALL | ALL | ALL | ALL | ALL |
2017 | GMC | Sierra 2500 HD | ALL | ALL | ALL | ALL | ALL |
2017 | GMC | Sierra 3500 HD | ALL | ALL | ALL | ALL | ALL |
2018 | Chevrolet | Silverado 2500 HD | ALL | ALL | ALL | ALL | ALL |
2018 | Chevrolet | Silverado 3500 HD | ALL | ALL | ALL | ALL | ALL |
2018 | GMC | Sierra 2500 HD | ALL | ALL | ALL | ALL | ALL |
2018 | GMC | Sierra 3500 HD | ALL | ALL | ALL | ALL | ALL |
2019 | Chevrolet | Silverado 2500 HD | ALL | ALL | ALL | ALL | ALL |
2019 | Chevrolet | Silverado 3500 HD | ALL | ALL | ALL | ALL | ALL |
2019 | GMC | Sierra 2500 HD | ALL | ALL | ALL | ALL | ALL |
2019 | GMC | Sierra 3500 HD | ALL | ALL | ALL | ALL | ALL |

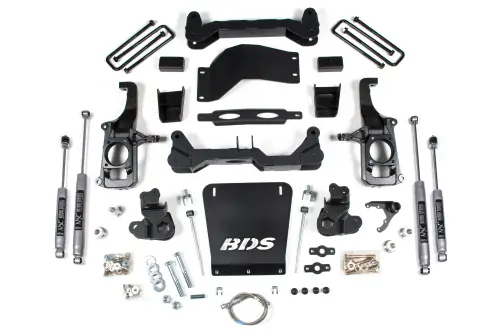

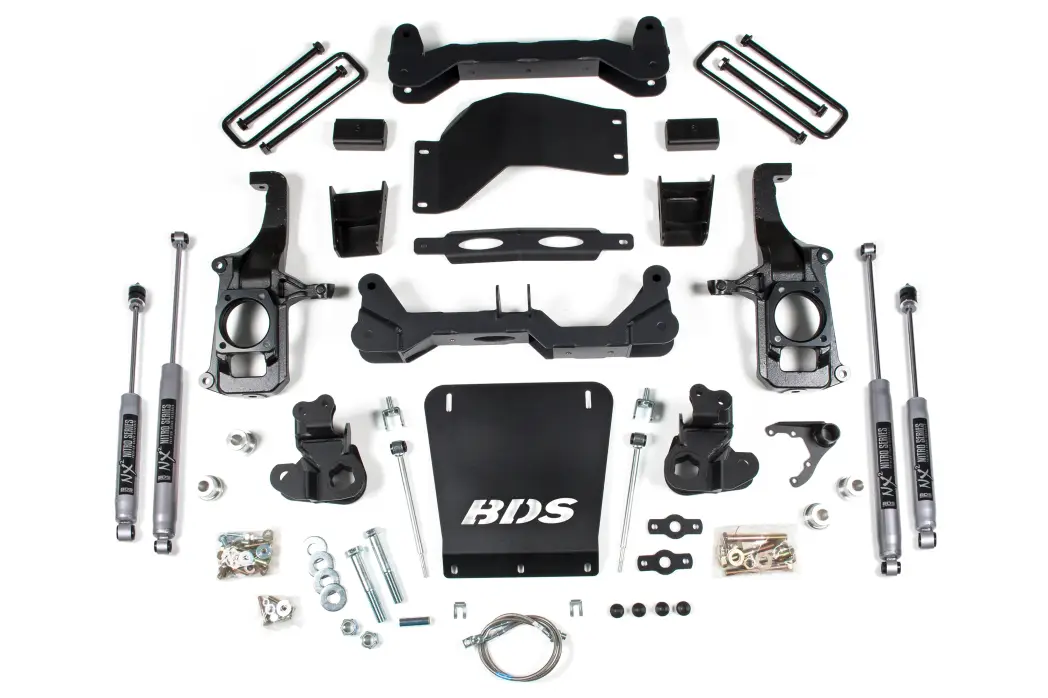

Component List
1 BDS021650 11 GM HD 4.5-6.5in System (1of4)
1 BDS021651 11 GM HD 4.5-6.5in System (2of4)
1 BDS021652 11 GM HD 4.5-6.5in System (3of4)
1 BDS021653 11 GM HD 4.5-6.5in System (4of4)
1 BDS121650 2001-2019 GM HD Front Skid Plate Box Kit
2 BDS85613 Shock- 22.20 x 13.35 x 2 - S50/EB1
1 BDS011317 11 HD 3in Rear w/Top Overload
2 BDS85769 Shock- 30.95 x 18.15 x 2-3/8 - EB1/EB1
Tires & Wheels
35 x 12.5 with 17 x 8 and 4.625 in. Backspace
35 x 12.5 with 18 x 9 and 4.625 in. Backspace
35 x 12.5 with 20 x 9 and 6 in. Backspace
Details
- BDS1820H
- BDS1820H
- 840416410068
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
