CS-FLVL-COM-CS-23-GAS | Carli Suspension 3.0" Lift Commuter Leveling System With Carli Spec 2.0 IFP Front & Rear Shocks For Ford F-250/F-350 Super Duty (2023-2024) | Gas
3.0" Lift Commuter Leveling System With Carli Spec 2.0 IFP Front & Rear Shocks For Ford F-250/F-350 Super Duty (2023-2024) | Gas
Description
Base Kit SKU: CS-FLVL-COM-CS-23-GAS - Ford Leveling Commuter System, Carli SPEC
3" Lift - 2023-2024 F250/350 4x4 7.3L Gas
1" Lift - 2023-2024 F250/350 4x4 7.3L Gas Tremor

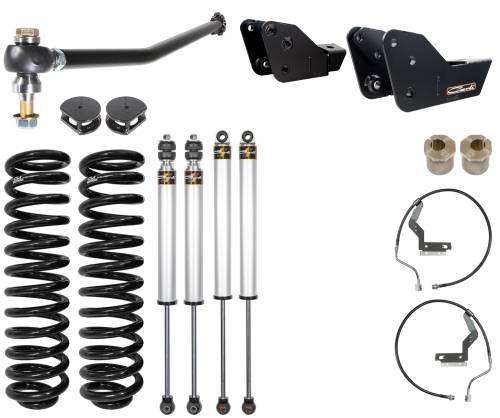

Base Kit Includes:

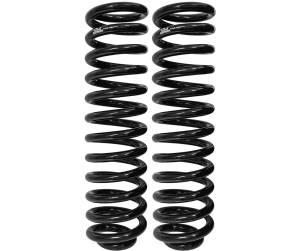

| CS-FLC-11-GAS | Front Leveling Coils |

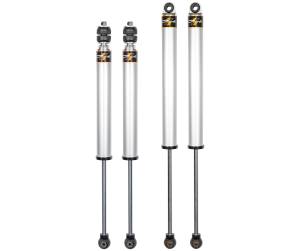

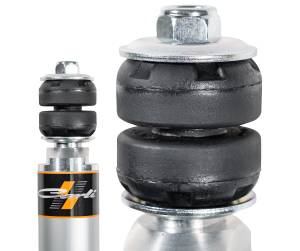

| AS-FLVLSPKG-CS20IFP-C | Carli SPEC 2.0" GAS Internal Reservoir (IFP) Shocks |
| CS-FORDBBL-LVL-17-F | Front Brake Lines |
| CS-FCASTERSHIM-45 | 1° Caster Shims |
| CS-FBDF-25-17 | High Clearance Bump Stop Drops, Front |
| CS-FATB-17 | Track Bar |

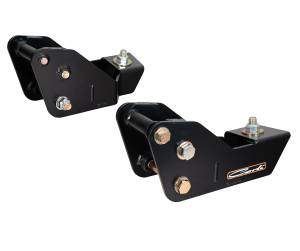

| CS-FRAD-LVL-23 | Radius Arm Drops, LVL |
Sway Bar Option
*REQUIRED* - The Commuter System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Drops or Extended Link Kit is only recommended for customers with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.
Rear Leaf Spring Options
*REQUIRED* - The Commuter System has been optimized for use with the Full Progressive Leaf Springs. This system is also compatible with the Progressive Add-a-Packs but there will be a notable ride quality difference on and off-road. Add-a-Packs are NOT recommended for the F350 (or any F250 equipped with the High Capacity Tow or Tremor Package). More information can be found in the description at the bottom of this page.More information is available in the long description at the bottom of this product page. Selecting "NO Rear Leaf Spring Selection" will result in an unknown ride quality and height result as all Carli Systems are optimized to either the Add-a-Pack or Progressive Leaf Springs.
Leaf Spring Shackle
*Optional* - Much of the jarring ride of the Super Duty rear can be attributed to the factory vulcanized bushings in the leaf spring pack and shackle. The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.
2° Pinion Shim
*OPTIONAL BUT RECOMMENDED* When modifying the rear leaf springs (add-a-pack or Full Spring Pack) of the 2017+ Super Duty platform, there's a small chance you'll induce a driveline vibration around 70mph when under power from the rear driveline. These pinion shims will correct the angle to 4°-5°, ideal for our lifted applications. Although these will not be "required" on every truck, we've found the 4°-5° spec to be superior in our applications and these are FAR easier to install initially than correctively.
Adjustable Radius Arms
*OPTIONAL* - Icing on the cake, these arms have been completely redesigned for the 23+ Super Duty. They boast Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Constructions, Serviceable 17-4 Stainless Spherical Bearings and Adjustable Caster Correction up to 3.5° over stock specs to leave Death-Wobble in the rear-view.
Low Mount Steering Stabilizer
*OPTIONAL* - Bolt in steering stabilizer which compliments a Carli, or factory, high mount stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.
High Mount Steering Stabilizer
*OPTIONAL* - Bolt in replacement for the factory stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains.
Trophy Hitch
*OPTIONAL* - Get your over-sized spare out of your bed - crank it into the factory location and secure it with our 3-way tie-down with the Carli Trophy hitch. Boasting 16,000lbs. of capacity via the 3" hitch receiver, direct bolt in installation, and up to a 38" spare tire in the factory location!
Application List
2023-2024 Ford F-250 Super Duty
Details
- CS-FLVL-COM-CS-23-GAS
- CS-FLVL-COM-CS-23-GAS
- 883584167099
- Carli Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W13.0000” x H37.0000” x L12.0000”
- Free Ground Shipping | Exclusions Apply*
