28002 | VIAIR 280C Dual Performance Value Pack Air Compressor 12 Volt In Black On Silver | 150 PSI, Max Air Tank Size 5.0 Gallon

280C Dual Performance Vale Pack Air Compressor 12 Volt In Black On Silver | 150 PSI, Max Air Tank Size 5.0 Gallon | Universal - Check Specification Before Ordering

28002
Pricing: $391.93
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The VIAIR 280C Dual Pack is ideal for lighter air suspension systems, capable of providing a maximum of 150 PSI and a 30% duty cycle.

The kit features two 12-volt Silver on Black 280C air compressors, two 40-amp relays and a 110 PSI cut-on, 145 PSI cut-off heavy-duty pressure switch.

Each 280C Dual Performance Value Pack also comes with remote mountable air filter assemblies and mounting hardware.

Please Note:

  • Use thread sealant for proper installation.
  • Thread tape is not recommended.
  • Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
  • Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

  • PN: 28002
  • CFM: 2.96 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 30% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Combined Max. Amp Draw: 38-Amps
  • Ingress Protection Rating: IP54
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 7.13″L x 3.95″W x 6.35″H (Each Unit)
  • Net Weight: 17.50 lbs.

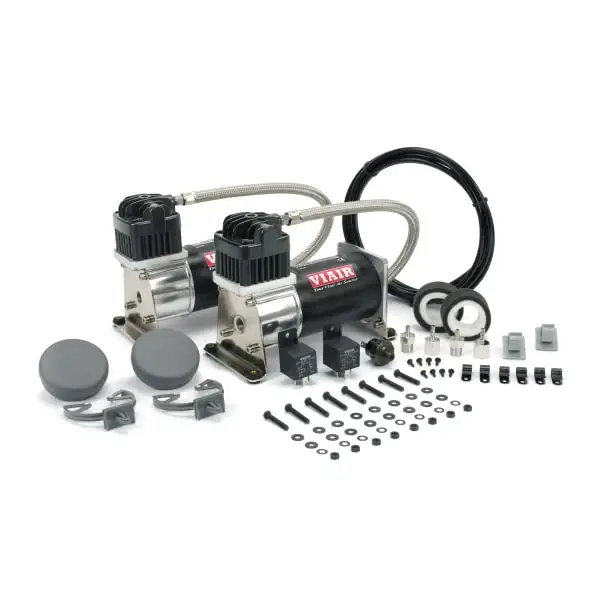

FEATURES:

  • (2) 280C (Black on Silver) Air Compressors
    w/Thermal Overload Protectors
  • (2) Air Filter Assemblies
  • (2) Remote Mount Brackets
  • (2) Sets of Remote Mount Fittings
  • (2) Sets of Spare Air Filter Elements
  • (2) Leader Hose Clips
  • (6) Air Line Clips with Included Hardware
  • (8) Sets of Nuts, Bolts, Washers and Lock Washers
  • (2) 40-Amp Relays
  • (1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)
  • (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
  • Air Line (For Remote Mount Filter Installation)

FILL RATES

12-VOLT COMPRESSOR

  • 2.0 GALLON TANK FILL RATE
    • 0 to 145 PSI 1 min. 34 sec. (± 10 sec.)
    • 110 to 145 PSI 29 sec. (± 05 sec.)
  • 2.5 GALLON TANK FILL RATE
    • 0 to 145 PSI 1 min. 44 sec. (± 10 sec.)
    • 110 to 145 PSI 31 sec. (± 05 sec.)
  • 5.0 GALLON TANK FILL RATE
    • 0 to 145 PSI 3 min. 54 sec. (± 15 sec.)
    • 110 to 145 PSI 1 min. 11 sec. (± 10 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 2.96 21 0 84.0 21
10 2.78 24 1.0 75.5 25
20 2.58 26 2.0 69.0 28
30 2.38 28 3.0 62.5 30
40 2.27 29 4.0 56.5 31
50 2.13 31 5.0 51.5 32
60 1.97 31 6.0 47.0 32
70 1.88 32 7.0 43.5 32
80 1.74 32 8.0 39.5 32
90 1.62 32 9.0 36.0 32
100 1.56 32 10.0 33.5 32
110 1.46 32
120 1.37 32
130 1.29 32
140 1.23 32
150 1.16 32



Application List

Universal - Check Specification Before Ordering
