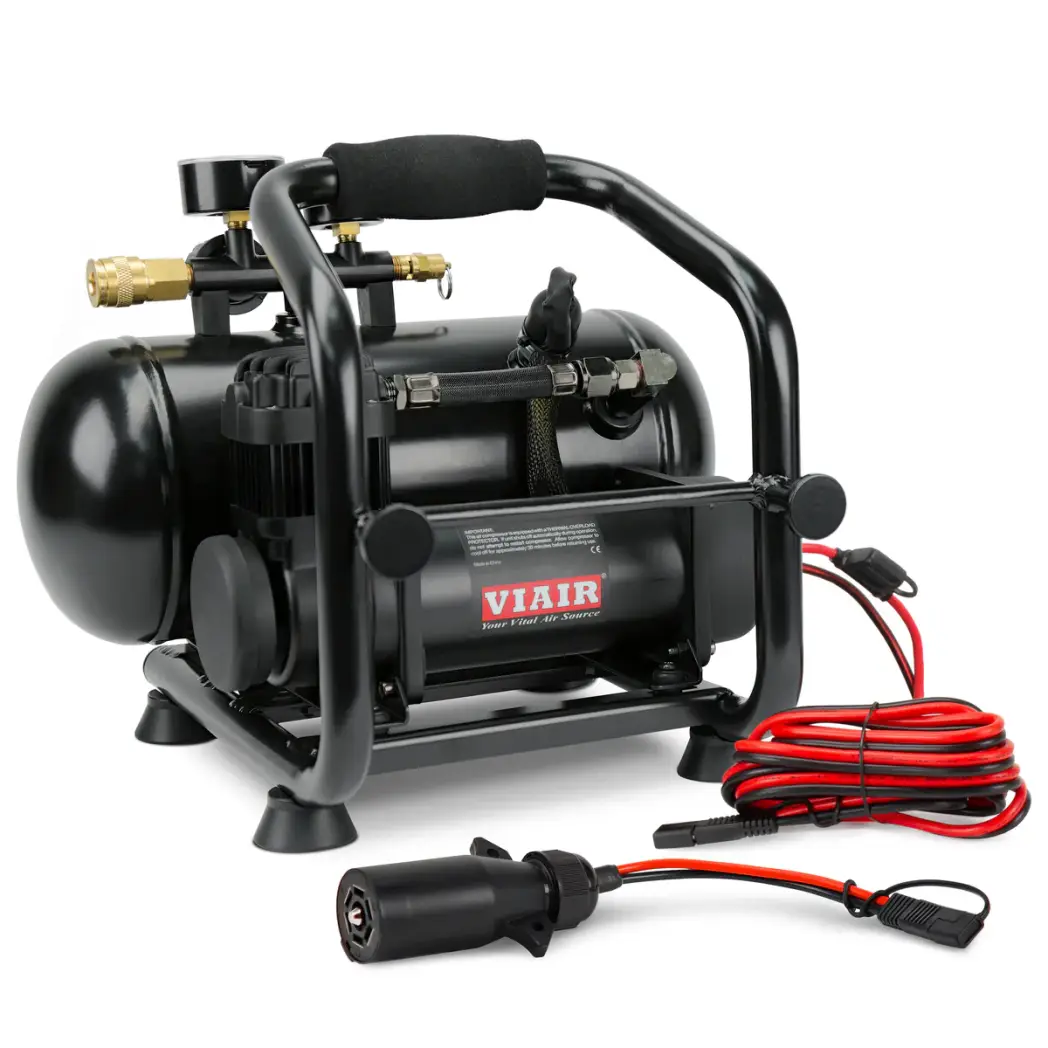

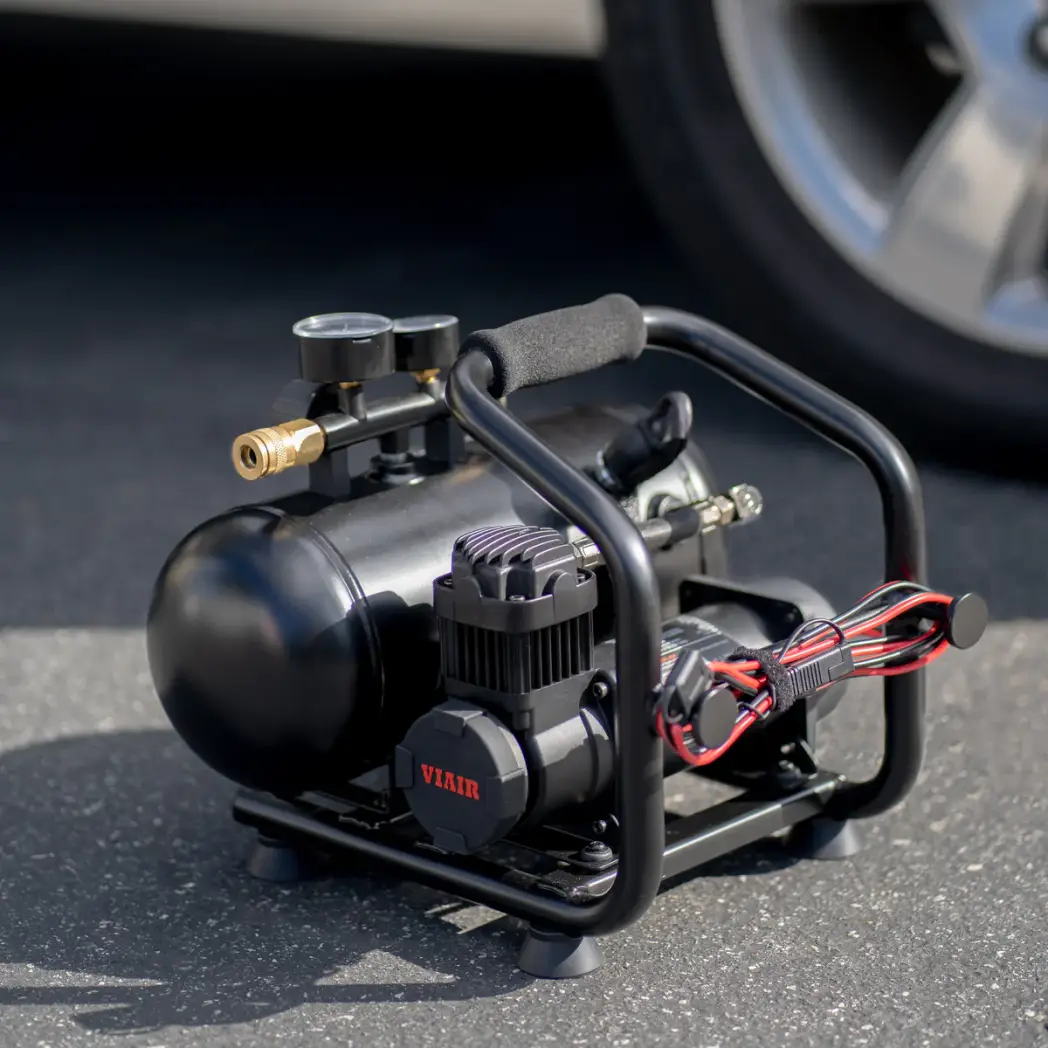

38035 | VIAIR 200 PSI Plug N Play On Demand Air Compressor Kit 12 Volt | 7 Way Trailer Plug, Includes 1.5 Gallon Air Tank

200 PSI Plug N Play On Demand Air Compressor Kit 12 Volt | 7 Way Trailer Plug, Includes 1.5 Gallon Air Tank | Universal - Check Specification Before Ordering

38035
Pricing: $442.33
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The 200 PSI Plug-N-Play On-Demand Portable is the optimal solution for any enthusiast who needs tire inflation and performs multiple pneumatic tasks on the go.

Please Note:

  • Filling tires and other inflatable items: Adjust the regulator to the highest output pressure (200 PSI) for maximum airflow *

SPECIFICATIONS

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
  • Max. Working Pressure: 200 PSI
  • Max. 12V Amp Draw: 23-Amps
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 14”L x 14″W x 12”H
  • Net Weight: 23.25 lbs.

FEATURES:

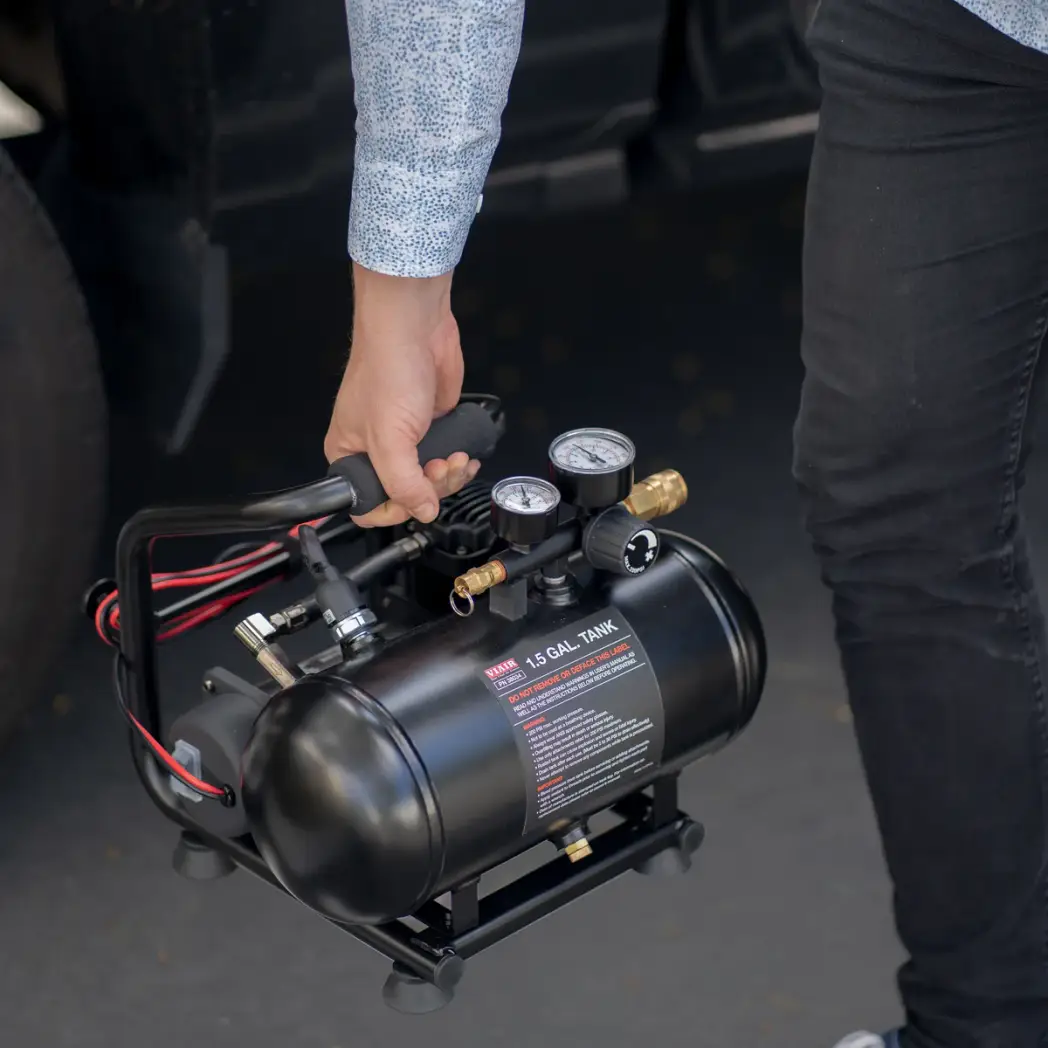

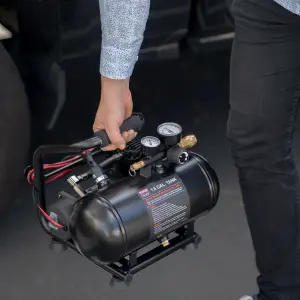

  • 1.5 Gallon Air Tank (200 PSI)
  • 380C Stealth Black Compressor w/ Thermal Overload Protector
  • Sealed Pressure Switch
    (165 PSI on, 200 PSI off)
  • 0-200 PSI Pressure Regulator
  • 200 PSI Tank Pressure Gauge
  • 2-Pin SAE Connector to Alligator Clamp (P/N 38034) or 7-Way Power Access (P/N 38035)
  • 1/4” Drain Cock
  • 1/4” Auto Quick Connect Coupler
  • Air Filter
  • Safety Valve (250 PSI)

FILL RATES

TIRE FILL RATE

  • 225/60R18 FILL RATE
    • 20 to 30 PSI 6 sec. (± 03 sec.)
    • 30 to 40 PSI 12 sec. (± 03 sec.)
  • 33″ X 12.5R20 FILL RATE
    • 27 to 36 PSI 18 sec. (± 03 sec.)
    • 37 to 44 PSI 13 sec. (± 03 sec.)

TANK FILL RATE

  • 1.5 GALLON TANK FILL RATE
    • 0 to 200 PSI 3 min. 41 sec. (± 10 sec.)
    • 165 to 200 PSI 57 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 1.58 12 0 44.7 12
10 1.45 13 1 38.1 13
20 1.22 14 2 33.3 15
30 1.17 15 3 30.6 16
40 1.09 16 4 29.1 17
50 1.06 17 5 27.1 18
60 1.02 17 6 25.3 19
70 0.97 18 7 24.0 20
80 0.92 18 8 22.4 21
90 0.88 19 9 21.0 23
100 0.85 20 10 19.5 21
110 0.81 21 11 18.2 20
120 0.78 22 12 16.7 19
130 0.74 23 13 15.2 19
140 0.71 21 14 13.5 18
150 0.67 20
160 0.64 20
170 0.60 19
180 0.57 19
190 0.53 19
200 0.49 18



Application List

Universal - Check Specification Before Ordering
