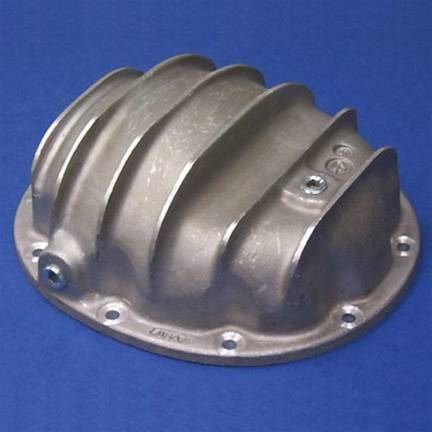

PML As Cast Dana 35 Rear

Volume: quart over stock

Dimensions: Outside depth is 4 1/8 inches, 3 inches inside

This differential cover fits the rear Dana 35 differential on the following Jeep models from 1984 to 2001:

• 87-95 YJ Wrangler
• 97-01 TJ Wrangler
• 84-01 XJ Cherokee & Wagoneer
• 93-98 ZJ Grand Cherokee

If you have a 91-01 Cherokee or Wagoneer, the Chrysler corporate 8.25 differential was also used. The perimeter of the Dana 35 cover is nearly round where the Chrysler 8.25 has a flat at the top and bottom.

Note: Wrangler owners, check carefully to be sure there is room for a larger cover. This cover may contact your gas tank skidplate.

• Increased oil capacity for cooler temperatures
• Sand-cast aluminum with raised fins
• Thick wall construction to add strength to differential housing
• Thick gasket flange will not bend when bolts are tightened
• Machined gasket surface for a secure seal using RTV or factory reusable gasket
• Oil changes without removing the cover
• All hardware provided, including magnetic drain plug
