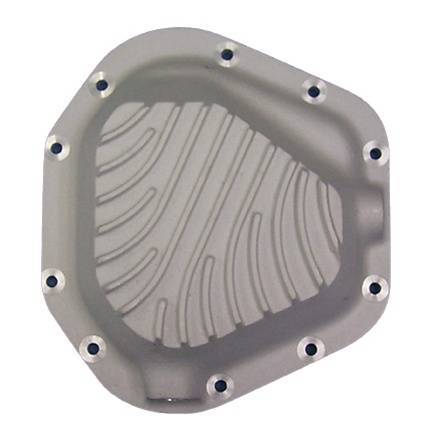

PML As Cast Dana 50/60 Front, 10 Bolt, 2005 & Newer Fords & Dodges

Volume: 0.6 qt. over stock

On Ford F250 and F350 trucks, this front end differential cover is slightly deeper than the stock covers for added fluid capacity.

For Dodge Ram 2500 and 3500 vehicles, please check the cover dimensions and look at your trackbar bracket before ordering. Also, if your stock cover has a vent fitting (instead of having a vent on the differential housing), this differential cover cannot be used.

This part is shallower than our Dana 60/70 rear cover for more steering linkage clearance.

PML has discontinued an older version of this cover, part number 9866, which is slightly different in shape on the top.

For 1997 and older F250/350 trucks, this part will not clear the ring gear. Our Dana 60, 70 (P/N 9426) rear cover will clear the ring gear but you will need to check your vehicle for steering linkage clearance with this deeper cover.

This diff cover has drain and fill/level check holes.

PML Differential Cover Features:

• Increased oil capacity for cooler temperatures
• Sand-cast aluminum with raised fins
• 3/16-inch thick wall construction to add strength to differential housing
• 3/8-inch thick gasket flange will not bend when bolts are tightened
• Machined gasket surface for a secure seal using RTV or factory reusable gasket
• Oil changes without removing the cover
• All hardware provided, including magnetic drain plug
