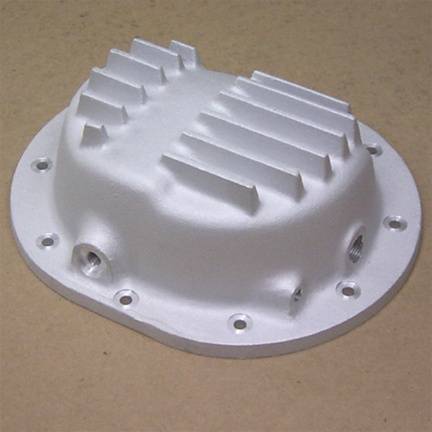

PML As Cast Dodge Corporate 8.25 RG, 10 Bolt

Volume: 0.75 qt. over stock

This cover fits the rear differential on the following vehicles:

• 1991-2001 Jeep XJ Cherokee & Wagoneer (also see Dana 35 cover)
• Jeep Liberty
• 1990-current Dodge Dakota (also see Corporate 9.25 cover - count your bolts to see which differential you have)
• 1990-2004 Dodge Durango (also see Corporate 9.25 cover - count your bolts to see which differential you have)
• Chrysler Fifth Avenue, Imperial, and New Yorker

If you have a Liberty with a gas tank skid plate, use the dimensions provided below to check for clearance. The skid plate can often be loosened and shifted away from the differential.

This cover features fill/level check and drain holes for easier maintenance. It also has an undrilled boss for a temperature sensor. The option to have boss drilled and tapped will need to be ordered over the phone, not on-line.

PML Differential Cover Features

• Increased oil capacity for cooler temperatures
• Sand-cast aluminum with raised fins
• 3/16-inch thick wall construction to add strength to differential housing
• 3/8-inch thick gasket flange will not bend when bolts are tightened
• Machined gasket surface for a secure seal using RTV or factory reusable gasket
• Oil changes without removing the cover
• All hardware provided, including magnetic drain plug
