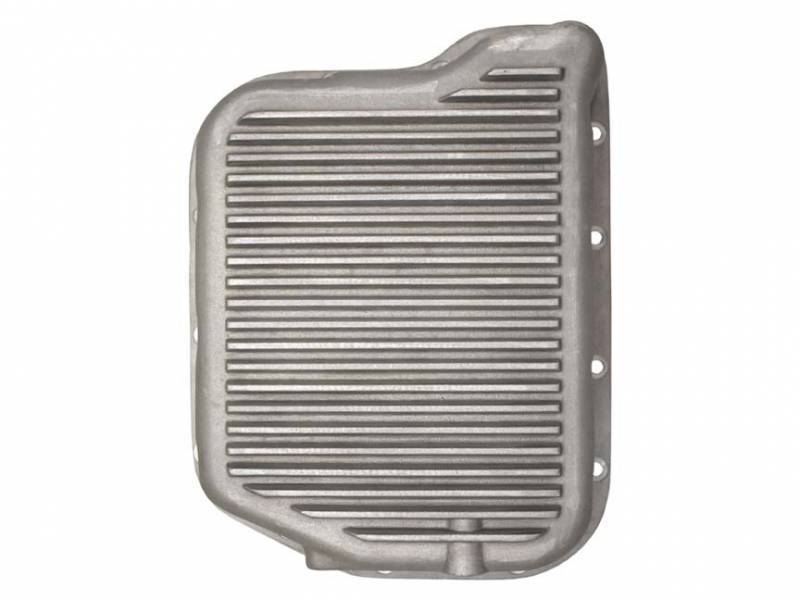

9393-AC | Chrysler, Dodge 727, 518 (46Rh, 46RE) | 618 (46Rh, 47RE) | 48RE Deep Transmission Pan | As Cast Finish

Volume: 2 quarts over stock

Dimensions: See Image for dimensions.

Number of Bolts: 14

PML designed this pan to work with a variety of vehicles with these Dodge TorqueFlite transmissions.

Benefits:

Extra capacity
Fins for cooling
One inch deeper than the stock pan to maintain clearance on most vehicles
Drain hole and magnetic drain plug
Heavy duty sand cast aluminum construction
Machined gasket surface for sealing securely to the housing
Works with stock filter and gasket so no custom parts needed
This transmission pan works with these Dodge TorqueFlite transmissions

518, A518 (46RH, 46RE)
618, A618 (47RH, 47RE)
727, A727 (36RH, 37RH,48RE)

Filter and Gasket Information
PML designed this pan to work with the stock filter and gasket.
A filter extension is not needed. This pan is one inch deeper than stock. There is plenty of mixing of fluid when the engine is running to to prevent a stagnant layer at the bottom of the pan.
The filter pick up and fluid level are at the same location with the PML pan as with the stock pan.
PML recommends a cork or cork composite gasket with this pan.

Drain
The drain is on the driver side of the vehicle. A magnetic drain plug is included with the pan.
A hole for a temperature sending unit can optionally be machined also on the driver's side a few inches toward the rear of the vehicle from the drain plug.
The picture shows drain hole and the optional NPT drilled and tapped on the pan.
The drain hole is larger and close to the bottom of the pan.
