68230 | 4 Inch Jeep Suspension Lift Kit (07-18 Wrangler JK)

Jeep | 2007-2018 JK Wrangler 4wd | Does NOT fit 4-door models

68230
Pricing: $698.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Give your Jeep a total transformation with Rough Country’s 4in Suspension Lift! This all-inclusive kit comes with everything you need to give your vehicle aggressive good looks and improved off-road performance!

This kit features lifted coil springs and coil correction plates, providing lift height and impeccable vibration dampening on any terrain.

Best of all, this kit features Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body, this shock offers up to 36kN Tensile Strength for a long lifespan of impressive vibration dampening. Features natural rubber bushings and an eye-catching metallic silver paint.

FEATURES
Easy bolt-on installation
Increased ground clearance
Coil correction plates correct the rear coil spring angle by 10 degrees, allowing them to function more effeciently.

NOTES - IMPORTANT
Does NOT fit 4-door (Unlimited) models.
2012-up models require exhaust modifications to clear the front driveshaft. (#1030) - Available below or here
On Automatic equipped vehicles; due to use of an oversize driveshaft from the factory and inadequate factory clearance it may be possible for the front driveshaft to come in contact with the automatic transmission pan tearing the factory boot and rubbing on the shaft. Generally this occurs during heavy articulation when front sway bar links are disconnected and longer shocks are installed. If this is found to occur, the proper procedure would be to replace the oversize factory shaft with an aftermarket smaller diameter shaft to increase clearance between the transmission and front driveshaft. Rough Country does offer this driveshaft if needed.

SPECS
SKU 68230
Est. Install Time 4-6 hours
Recommended Tire Size 35x12.50 R17
Recommended Wheel Backspacing 4.5" - 4.75"

Vehicle Applications

2007 - 2018 Jeep Wrangler JK

NOTES - IMPORTANT
Does NOT fit 4-door (Unlimited) models.
2012-2018 models require exhaust modifications to clear the front driveshaft (#1030) On Automatic equipped vehicles

DETAILS

due to use of an oversize driveshaft from the factory and inadequate factory clearance it may be possible for the front driveshaft to come in contact with the automatic transmission pan tearing the factory boot and rubbing on the shaft.
Generally this occurs during heavy articulation when front sway bar links are disconnected and longer shocks are installed.
If this is found to occur, the proper procedure would be to replace the oversize factory shaft with an aftermarket smaller diameter shaft to increase clearance between the transmission and front driveshaft.
Rough Country does offer this driveshaft if needed.

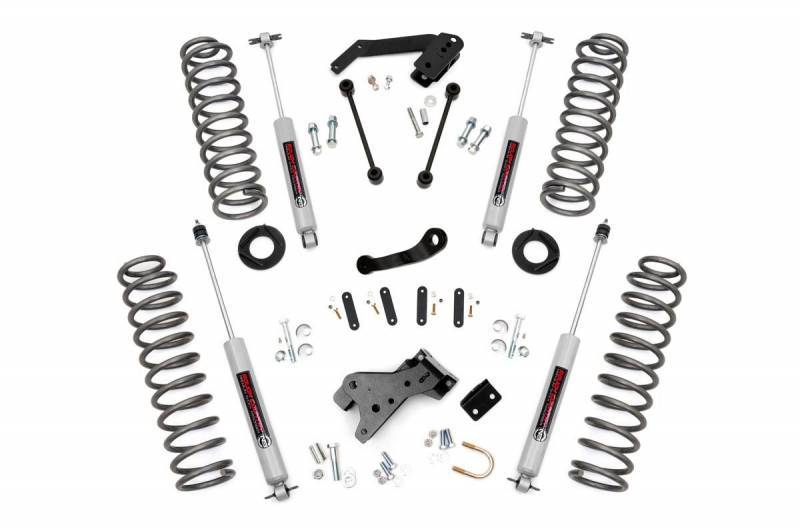

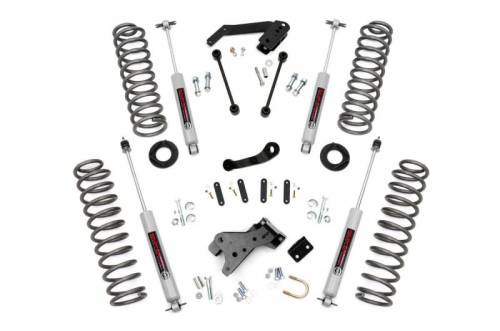

Components

FRONT
Lifted coil springs
Track bar drop bracket
Pitman arm
Brake line relocation brackets
Shock relocation brackets
Cam bolts
Hardware

REAR
Lifted coil springs
Extended sway-bar links
Coil correction plates
Track bar drop bracket
Brake line relocation brackets
Hardware

SHOCKS
(4) Premium N3 Series

Details

  • 68230
  • 68230
  • 843030171155
  • Rough Country
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 94.0 lbs.
  • W24.0000” x H12.0000” x L36.0000”
  • Free Ground Shipping | Exclusions Apply*
