733.20 | 4-5 Inch Toyota Suspension Lift Kit (Ext. Cab)

Toyota | 1986-1989 4 Runner 4wd | 1986-1995 Pickup (Ext Cab) 4wd

SKU: 733.2

Pricing: $977.95

Description
Vehicle Applications
Components
Details
Shipping
Documents

Description

The IFS front lift is achieved by dropping the lower control arms with front and rear crossmember drop brackets. The upper control arms remain in their factory location and new lifted cast knuckles connect the upper and lower control arms. The front differential is also lowered to maintain proper CV angles.

FEATURES
Easy bolt-on installation
Increased ground clearance
Levels the front with the rear of the vehicle

SPECS
SKU 733.20
Est. Install Time 6-8 hours
Recommended Tire Size 33x12.50
Recommended Wheel Backspacing 3.75"

Vehicle Applications

1986 - 1995 Toyota 4 Runner
1986 - 1995 Toyota Pickup

NOTES - IMPORTANT
Due to u-bolt dimensions this kit will fit 1986-1988 Standard Cab Pickups.
1989-1995 Standard Cab models will need to use SKU: 734.20 .

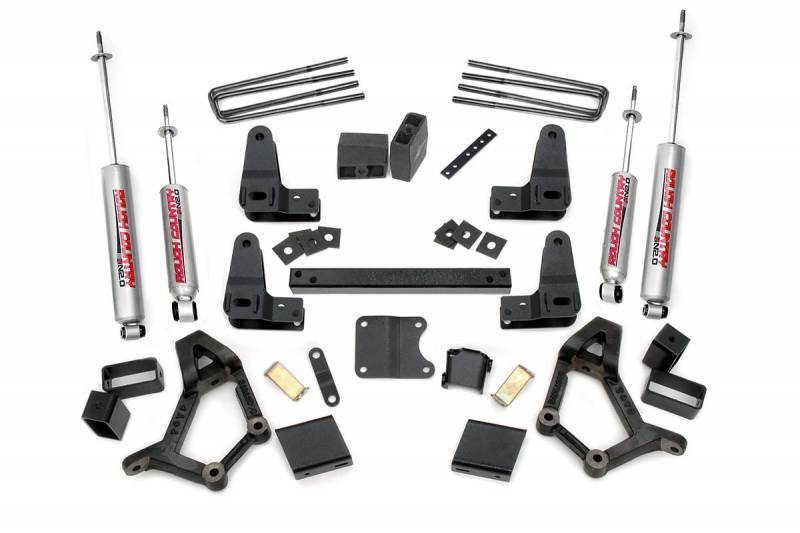

Components

Front
Knuckle adapters
Differential drop brackets
Front crossmember brackets
Rear crossmember brackets
Bumpstop brackets
Sway-bar brackets
Brake line brackets
Hardware

Rear
4" lift blocks
U-bolts
Bumpstop brackets
Proportioning valve bracket
Hardware

Shocks
(4) Premium N2.0 Series
