FTSK4047 | Fabtech 3 Inch Sport System With Performance Shocks (2007-2018 Wrangler JK 4WD 2 Door)
2007-2018 Jeep Wrangler JK 4WD
Description

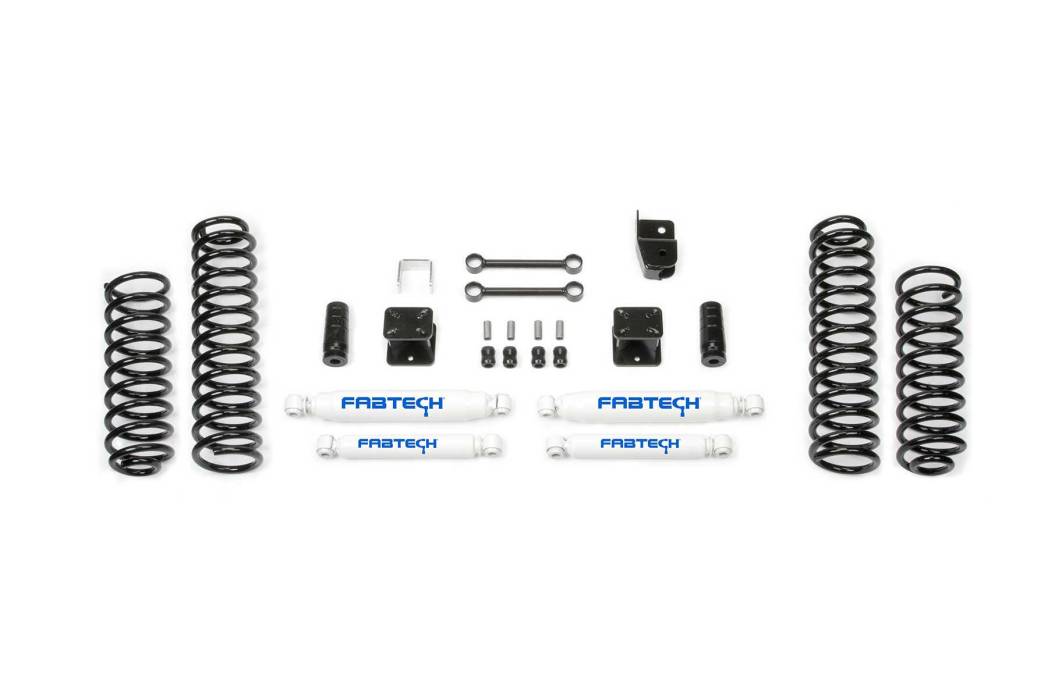

3″ SPORT SYSTEM W/ PERFORMANCE SHOCKS – K4047
2007-18 JEEP JK 4WD [2-DOOR]
This system provides increased ride height for oversized tires without stepping into a full Link Arm system. The Fabtech Standard coil springs will provide additional performance to the suspension for both on and offroad use.
System can be upgraded in the future with Fabtech’s Short Arm Links or Long Arm conversion.
FEATURES
- Standard Front & Rear Coil Springs
- Front Sway Bar LInks
- Rear Track Bar Bracket
- Rear Brake Line Drop Bracket
- E-brake Bracket
- Front Urethane Bump Stops
- Rear Bump Stop Brackets
PART NUMBERS
OTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS24095 | COMPONENT BOX W/ PERFORMANCE SHOCKS |
FOOTNOTES
148. Exhaust Spacer (FTS24126) required on all 2012-17 Jeep Wranglers.
249. For heavy offroad use, front driveshaft is required. Order FTS94057.
250. For heavy offroad use, rear driveshaft is required. See a quality driveline supplier to order.
Application List
Tires & Wheels
Tire Size – 35/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/minor trimming
Tire Size – 35/12.50R17 Wheel Size – 18X9 w/ 4.5in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18X9 w/ 4.5in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20X9 w/ 5in BS w/minor trimming
Tire Size – 325/60R20 Wheel Size – 20X9 w/ 5in BS w/minor trimming
TUBE FENDERS
Tire Size – 37/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/cutting
Tire Size – 37/12.50R18 Wheel Size – 18X9 w/ 4.5in BS w/cutting
Tire Size – 37/12.50R20 Wheel Size – 20X9 w/ 5in BS w/cutting
Details
- K4047
- K4047
- 674866036703
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 89.0 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
