63330 | 4.5 Inch X-Series Jeep Suspension Lift Kit w/ Premium N3 Shocks

Jeep | 1984-2001 XJ Cherokee 4wd

63330
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $1,466.95
Qty:

Description

The new 4.5in X-Series N2 features a transfer case drop kit, forged adjustable track bar, stainless steel brake lines, and sway-bar disconnects. A set lifted coil springs and all-new rear lifted leaf springs help your XJ gain a total of 4.5in in lift - plenty of clearance for 32in tires. This X-Series kit features Rough Country's X-Flex Control arms in the front upper and lower position. X-Flex Arms are fully adjustable, and feature a ball-in joint, massive 2.5in diameter body, and huge 1.25in threads. X-Flex Control Arm Joints have long offered considerable range, strength, and safety for off-road applications - but it doesn't stop there. X-Flex Joints now feature Adjustable Retainer Rings, allowing you to preload the bushings by compressing them prior to install. These NEW bushings are fitted with interlocking grooves that completely encase the ball joint for a firm grip. Made of high-quality 88 Durometer Urethane, these bushings retain the memory of their original shape, are weather resistant, and offer a much longer lifespan. Improve your on and off-road ride quality with Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body, this shock offers up to 36kN Tensile Strength for a long lifespan of impressive vibration dampening. So if you're looking for longevity and an uncompromised ride, look no further. Rough Country's X-Series N3 features the best of the best in off-road hardware.

FEATURES
Easy bolt-on installation
Increased ground clearance
Levels the front with the rear of the vehicle
Quick disconnects quickly and easily store out of the way when not in use.
Front adjustable track bar is made of forged solid steel for unsurpassed strength and durability
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
X-Flex control arm features:
Clevite brand OEM style rubber bushings.
Flex joints are fully rebuildable.
Flex joints feature a massive 2.5" diameter body and 1.25" thread.
Fully greasable.
Adjustable retainer ring.
Upper joints pivot up to 20 degrees.
Lower joints pivot up to 35 degrees.

NOTES - IMPORTANT
A Slip Yoke Eliminator with CV Driveshaft are highly recommended to avoid driveline vibration.

SPECS
SKU 63330
Est. Install Time 5-6 hours
Recommended Tire Size 32x11.50 R15
Recommended Wheel Backspacing 3.75"

Vehicle Applications

1984 - 2001 Jeep XJ Cherokee

NOTES - IMPORTANT
Does NOT fit models with AX5 transmission.
A Slip Yoke Eliminator with CV Driveshaft are highly recommended to avoid driveline vibration.
Rough Country's NP231 SYE available here! SKU: 50-7907 Rough Country's replacement cv driveshaft available here! SKU: 5076.1

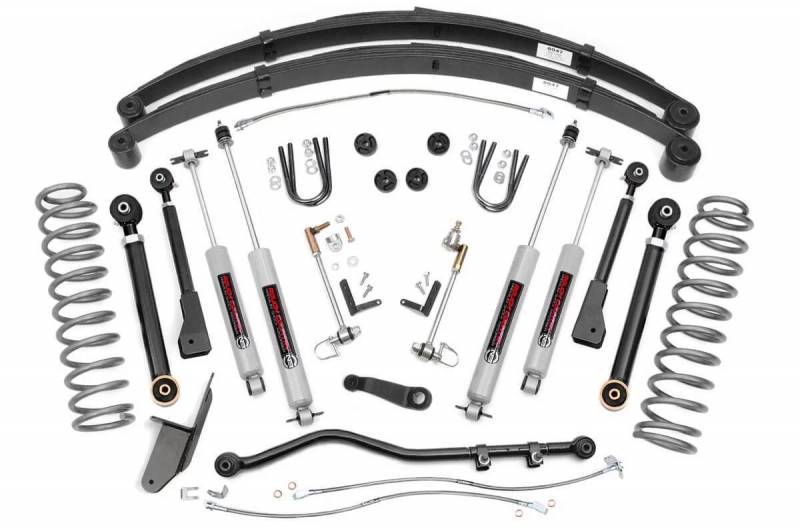

Components

FRONT
Lifted coil springs
Adjustable upper control arms
Adjustable lower control arms
Transfer case drop kit
Forged adjustable track bar
Track bar bracket
Drop pitman arm
Sway-bar quick disconnects
Stainless steel braided brake lines
Hardware

REAR
Lifted leaf springs
Stainless steel braided brake line
U-bolts
Hardware

SHOCKS
(4) Premium N3 series

Details

  • 63330
  • 63330
  • 843030146047
  • Rough Country
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 125.0 lbs.
  • W24.0000” x H12.0000” x L4.0000”
  • $50.00
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
