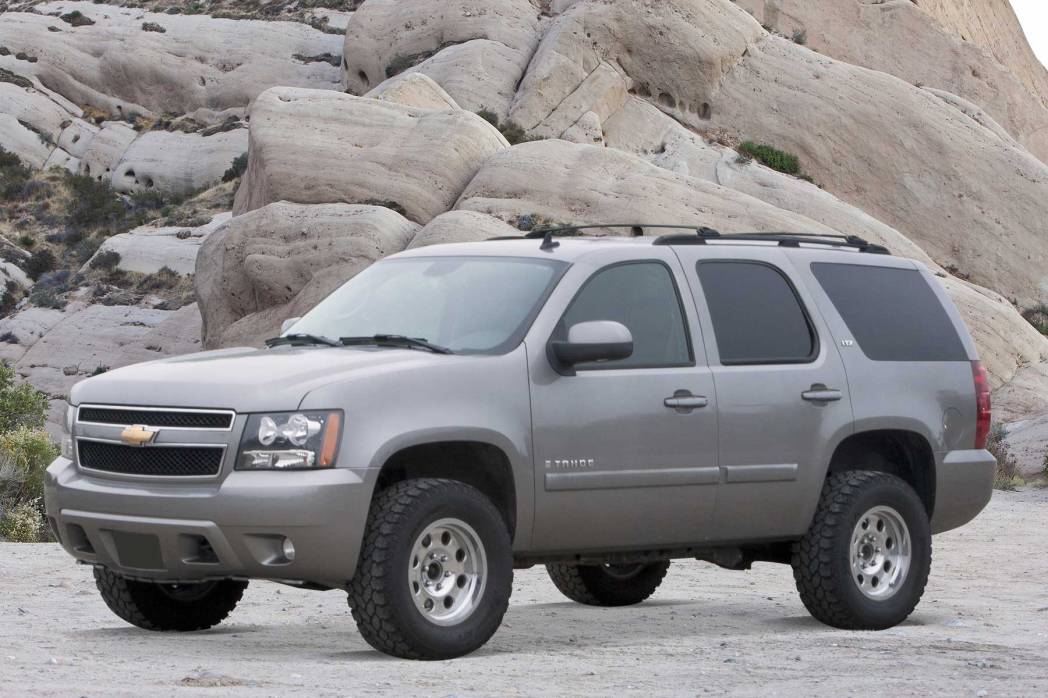

The 3” Budget System for GM C/K1500 SUV’s provides a mild lift height with a supple ride for use with 33” tall tires for the value minded enthusiast.

Fabtech’s replacement DOM upper tubular control arms feature heavy duty extended range ball joints that provide additional strength to the front suspension. The new ball joints provide unrestricted movement throughout the suspension travel range for smooth operation. On 4WD models the front differential housing is relocated to keep CV angles proper with the new ride height while a 1/ 4” thick steel skid plate protects the front diff. The rear lift comes from a 2" Coil Spacer system.

The 3” Budget is available with two shock configurations. One utilizes the stock front Coilover shocks with upper spacers along and rear Performance Shocks. The second option for increased damping is the high end Dirt Logic 2.5 Coilovers for the front and Dirt Logic 2.25 shocks on the rear.

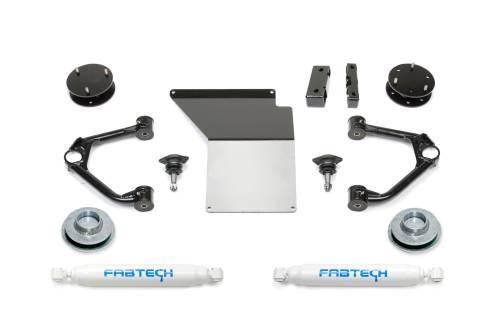

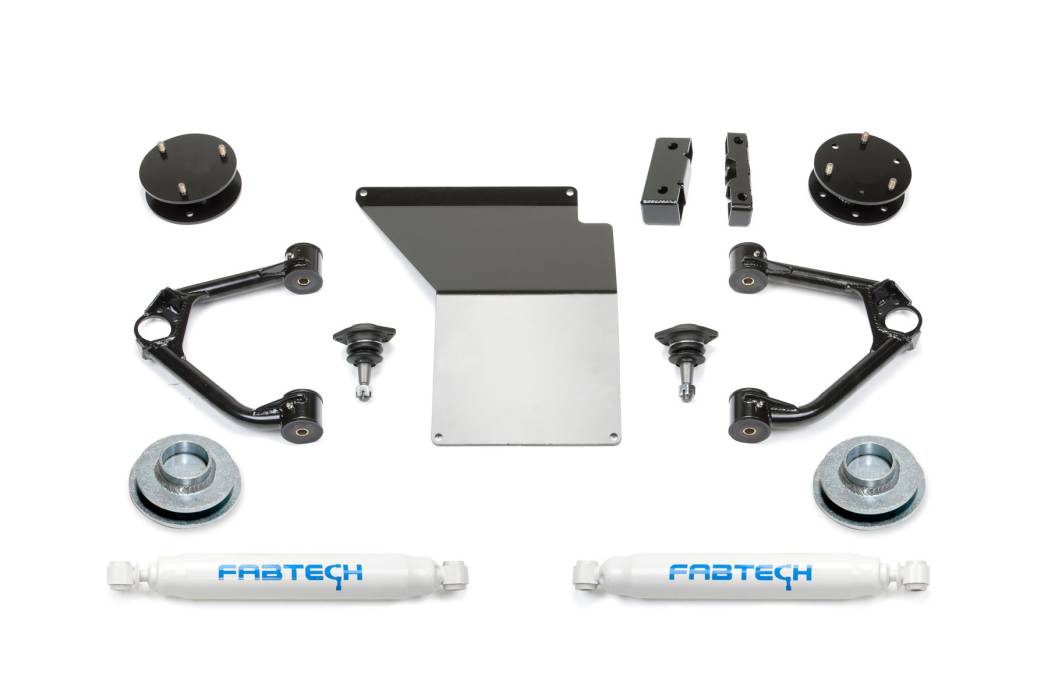

FEATURES

• Replacement DOM Upper Tubular Control Arms
• Extended Range Ball Joints
• Front Differential Skid Plate
• Rear Coil Spacer Kit

PART NUMBERS

FOOTNOTES

1. Will not fit models with Factory AutoRide shocks.
14. Cannot use OEM wheel and tire.
132. Will not fit 2WD Suburban models.
