639P | 4 Inch Jeep X Series Suspension Lift Kit w/ Premium N3 Shocks

Jeep | 1999-2004 WJ Grand Cherokee 4wd

639P
Pricing: $1,257.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

FEATURES
Easy bolt-on installation
Increased ground clearance
Levels the front with the rear of the vehicle
Lower control arms provide proper offset to allow for wider tires.
Kit maintains stock alignment for precise high speed handling and proper caster/pinion alignment.
Rear shock relocation keeps shocks clear from the tires.
X-Flex control arm features:
Flex joints feature a massive 2.5" diameter body and 1.25" thread.
Fully greasable.
Lower joints pivot up to 35 degrees.

NOTES - IMPORTANT
Does NOT fit AWD models.
Models equipped with a CV style front driveshaft may result in driveshaft vibration. If this occurs, replacing the driveshaft, axle yoke and / or transfer case yoke will need to be performed to rid the vehicle of driveline vibration.
CV Driveshaft Example

SPECS
SKU 639P
Est. Install Time 6-8 hours
Recommended Tire Size 265/75 R16
Recommended Wheel Backspacing Factory

Vehicle Applications

1999 - 2004 Jeep WJ Grand Cherokee

NOTES - IMPORTANT
Does NOT fit V8 models.
Does NOT fit AWD models.
Models equipped with a CV style front driveshaft may result in driveshaft vibration.
If this occurs, replacing the driveshaft

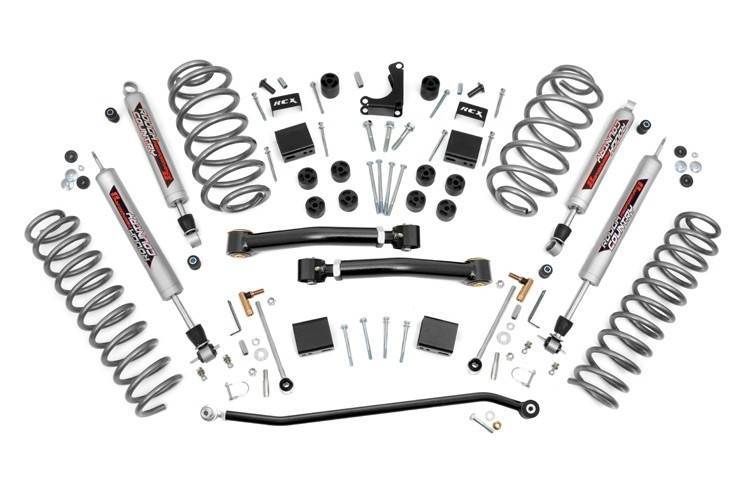

Components

FRONT
Lifted coil springs
Adjustable lower control arms
Sway-bar quick disconnects
Adjustable track bar
Bumpstop extensions
Transmission crossmember spacers
Hardware

REAR
Lifted coil springs
Upper control arm bracket
Sway-bar brackets
Bumpstop extensions
Shock relocation kit
Hardware

SHOCKS
(4) Premium N3 Series

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 125.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
