525.20 | 6 Inch Ford Suspension Lift Kit w/ Premium N3 Shocks

1980-1996 Ford Bronco 4WD | 1980-1996 Ford F150 Pickup 4WD

525.2
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Pricing: $1,466.95
Qty:

Description

Give your Ford an aggressive look from front to rear with Rough Country’s 6" Ford Suspension Lift Kit! This easy-to-install leveling kit raises the front of your vehicle to be equal height with the rear for a leveled, flush look that gives a better ride height and more aggressive appearance.

This kit features a set of front, durable coil springs allowing you gain additional ride height without sacrificing ride quality or performance. A set of radius arm and axle drop brackets are provided to keep everything at optimum angles for a factory-like ride, even after lifting. Our fabricated rear blocks offer considerably more strength than their cast iron counterparts.

A set of Rough Country's premium N3 shocks are also included in this kit. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.

Get the wheels you want! Rough Country's 6" Ford Suspension Lift Kit comes with everything you need to fit up to a 35" tire with proper wheel backspacing.

Best of all, Rough Country's 6" Ford Suspension Lift Kit is backed by our Lifetime Replacement Warranty.

FEATURES
Increased ground clearance
Levels the front with the rear of the vehicle


OPTIONAL LEAF SPRINGS
Leaf springs are double tapered with teflon pad inserts for a softer ride quality.
Maintains smooth, factory-like ride.
5 year warranty.

NOTES - IMPORTANT

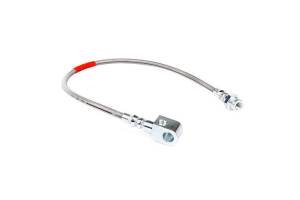

Extended brake lines are recommended.

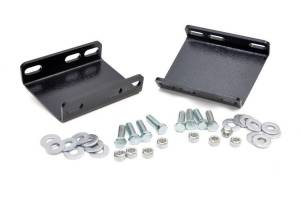

If vehicle is equipped with a front sway-bar, drop brackets are recommended. (SKU: 1018)
Vehicles with factory quad shocks (2 front shocks per side) will simply use a single aftermarket shock.

SPECS
SKU 525.20
Est. Install Time 6-8 hours

Vehicle Applications

1980 - 1996 Ford Bronco
1980 - 1996 Ford F-150 Pickup

NOTES - IMPORTANT
Extended brake lines are recommended.
If vehicle is equipped with a front sway-bar, drop brackets are recommended.
(SKU: 1018) Vehicles with factory quad shocks (2 front shocks per side) will simply use a single aftermarket shock.

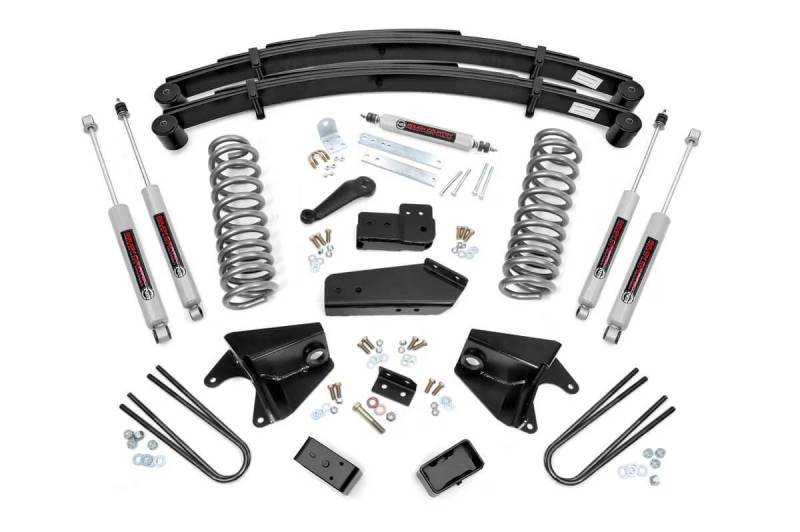

Components

FRONT
Lifted coil springs
Radius arm drop brackets
I-beam drop brackets
Power steering pitman arm
FREE steering stabilizer
Hardware

REAR
Lifted Leaf Springs
Rear Lift block
U-bolts
Hardware

SHOCKS
(4) Premium N3 Series

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W12.0000” x H12.0000” x L48.0000”
  • $75.00
  • Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
