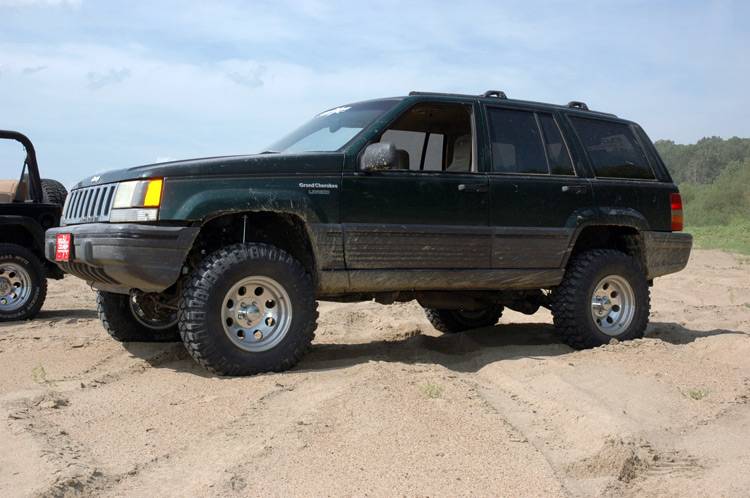

68820 | 4 Inch Jeep X Series Suspension Lift Kit w/ Premium N3 Shocks

Jeep | 1993-1998 ZJ Grand Cherokee 4wd

68820
Pricing: $1,396.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

FEATURES
Easy bolt-on installation
Increased ground clearance
Levels the front with the rear of the vehicle
Includes application valved N2.0 series shock absorbers which offer the best in balanced performance for on and off-road use.
X-Flex control arm features:
Clevite brand OEM style rubber bushings.
Flex joints feature a massive 2.5" diameter body and 1.25" thread.
Fully greasable.
Upper joints pivot up to 20 degrees.
Lower joints pivot up to 35 degrees.

NOTES - IMPORTANT
Does NOT fit AWD models.
Models equipped with a CV style front driveshaft may result in driveshaft vibration. If this occurs, replacing the driveshaft, axle yoke and / or transfer case yoke will need to be performed to rid the vehicle of driveline vibration.
CV Driveshaft Example

SPECS
SKU 68820
Est. Install Time 4-6 hours
Recommended Tire Size 31x10.50 R15
Recommended Wheel Backspacing Factory

Vehicle Applications

1993 - 1998 Jeep ZJ Grand Cherokee

NOTES - IMPORTANT
Does NOT fit AWD models.
Models equipped with a CV style front driveshaft may result in driveshaft vibration.
If this occurs, replacing the driveshaft

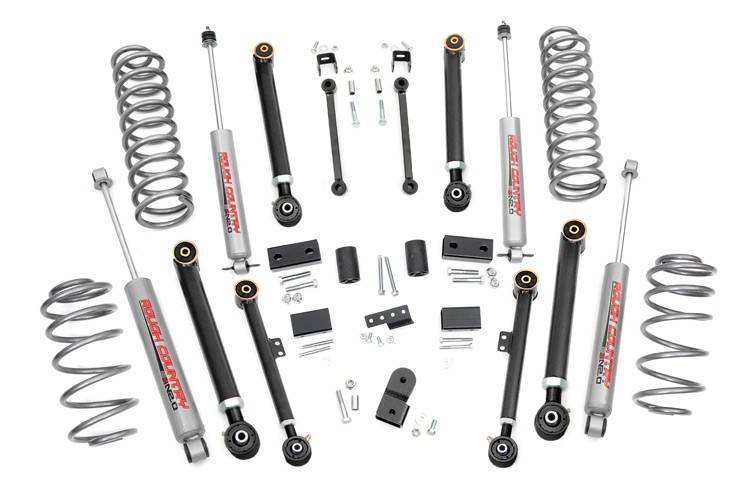

Components

FRONT
Lifted coil springs
Adjustable lower control arms
Extended sway-bar links
Bumpstop extensions
Hardware

REAR
Lifted coil springs
Adjustable upper control arms
Adjustable lower control arms
Sway-bar brackets
Bumpstop brackets
Brake line brackets
Track bar bracket
Hardware

SHOCKS
(4) Premium N3 Series

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 125.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
