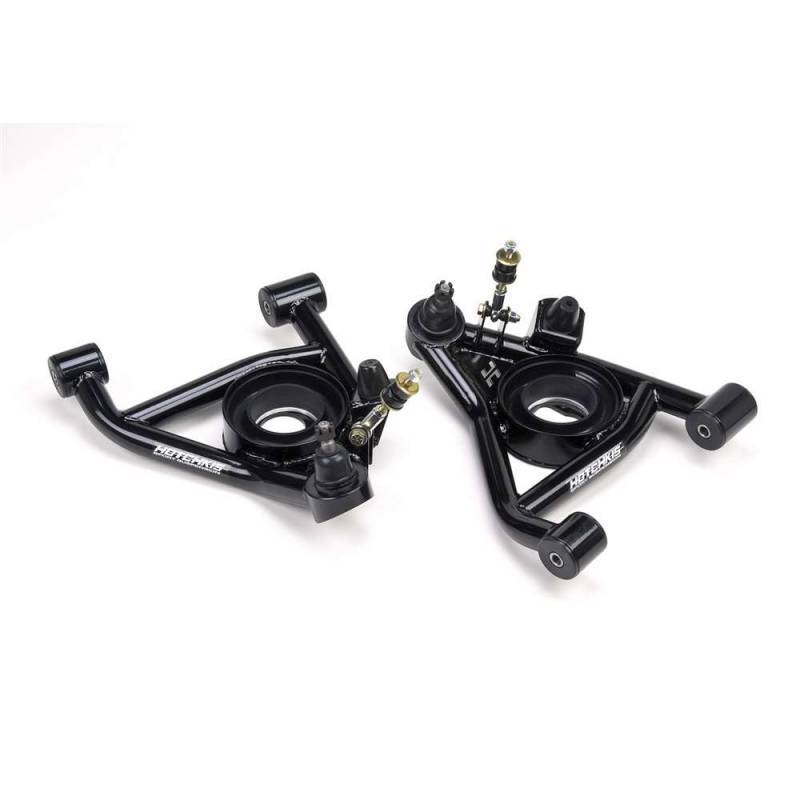

1114L 1978-1988 GM A/G-Body Lower Control Arms

1114L
Hotchkis Sport Suspension 1114L Lower A-Arms for 78-88 Chevrolet Monte Carlo 78-83 Chevrolet Malibu 78-87 Chevrolet El Camino 78-87 Buick Grand National & Regal 79-81 Oldsmobile Cutlass 78-88 Pontiac Grand Prix 78-81 Pontiac LeMans and 78-87 GMC Caballero
Please Call for Availability
1-800-606-3767
Shipping: Free Ground Shipping Unavailable | This Product Does Not Qualify*

Description

Install Hotchkis Sport Suspension's Tubular Lower A-Arms on your 1978-1988 GM A/G Body Car for vastly improved handling and control thanks to revised suspension geometry. These TIG welded bolt-on arms have repositioned ball joints that increase caster, improve the camber curve and resulting in enhanced stability and traction. Adjustable shims offer ride height adjustment, regardless of engine and transmission combinations. Smooth operating Delrin bushings allow the arms to move easily throughout the travel arc. Finished in gloss black powder coat, the arms are ready to install and are complete with ball joints, bump stops, ride height shims, polyurethane coil spring locators and Delrin bushings. Provides exceptional sports-car handling performance when combined with the Hotchkis Sport Suspension geometry corrected Tubular Upper AArms.

Additional Information:

Features:

  • Revised geometry for superior handling performance
  • +4 degrees of positive caster built in.
  • 100% TIG welded 1.5" tubular steel construction.
  • CNC machined inset spring cup.
  • Precision aluminum ride height adjustment shims and polyurethane coil spring isolators.
  • Easy to lubricate Delrin bushings.
  • Lower ball joint installed.
  • Laser cut "Hotchkis" logo
  • Gloss black powder coat finish.

Benefits:

  • CAD designed and analyzed by FEA software for maximum strength and efficiency.
  • Increased structural rigidity due to CNC machined inset spring cup.
  • Aluminum shims allow " - " ride height adjustment. Additional shims available separately.
  • Delrin bushings allow smooth operation with minimal deflection through travel range.



Details

Categories

Shipping Information

  • Item Requires Shipping
  • 60.0 lbs.
  • Free Ground Shipping Unavailable | This Product Does Not Qualify*
