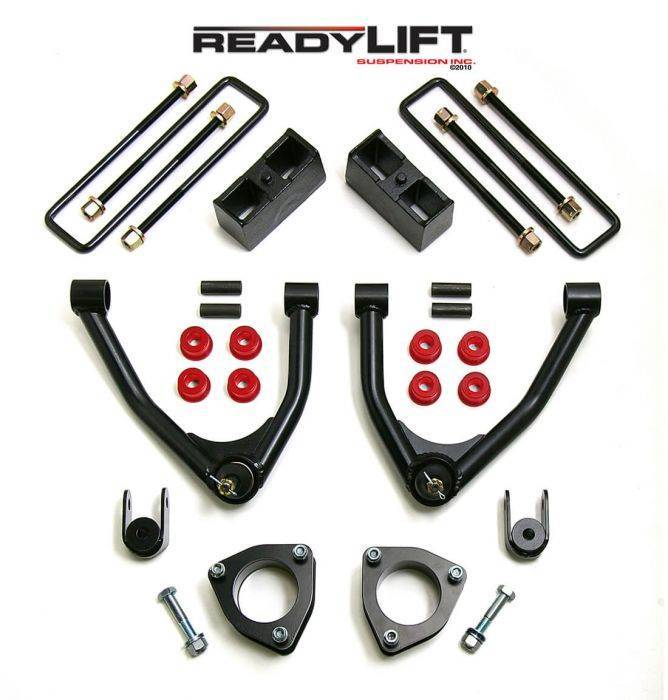

69-3285 |ÊReadyLiftÊ4 Inch SST Lift Kit 4.0 F / 1.75 R For Chevrolet Silverado / GMC Sierra | 2007-2020

Chevrolet, GMC: 2007-2020 Silverado 1500 2WD / 2007-2020 Sierra 1500 2WD

69-3285
Shipping: Free Ground Shipping Unavailable | This Product Does Not Qualify*
Pricing: $1,221.94
Qty:
Free Ground Shipping | Exclusions Apply*

Description

ReadyLIFT is proud to offer an SST Lift Kit system for the 2007-2017 1500-series Silverado/Sierra 6-lug 2WD Trucks. Increased requests from customers wanting a true 4.0" Lift Kit for their new body style Silverado trucks encouraged ReadyLift research and development to engineer the only 4.0" completely bolt-on lift kit on the market today. We call the 69-3285 4.0" SST Lift Kit System our "stage three" kit for the late model Silverado/Sierra pickups. ReadyLift currently offers 1.5" and 2.25" front leveling systems for the 2007-2017 GM 1500 trucks. With the development of the 69-3425 4.0" SST Lift Kit we now a lift solution for every Silverado owner.

Note: Some 2016 models are coming with a New Hydro Form (Stamped) UCA and LCA that are not allowing for installation of the 4" SST kits. These models can be identified with a build code of "AVV". This lift kit is not recommended for these models with stamped steel Control Arms,Shop All Parts at this time.

The 69-3285 4.0" SST Lift Kit, just like the 69-3485 4WD version, is the result of over six months of extensive product development followed by rigorous on and off road testing. This system significantly increases ground clearance while allowing for tire sizes up to 33" on aftermarket wheels. The most common tire size for this application is 33x11.50. 22x9.5 with 5.5" backspacing requires no fender modifications. 17x9 +0 offset on a 285/70R17 will fit with no rubbing. With a 295/70r17 minor trimming/modification required. Note: This kit is designed for use with aftermarket wheels.

Customers can now have the lift they have wanted but wasn't available - until now!

For information about tire and wheel sizes please visit the ReadyLift Tire Sizing and Calculator Page.

Note: This kit fits 2007-2013 2WD AND 2014-up 2WD 1500 trucks that have the steel upper control arm ONLY. Not for use on 2014-up trucks with aluminum upper Control Arms,Shop All Parts.

The ReadyLIFT 4.0" SST Lift Kit will raise the 2007-2017 Silverado/Sierra 1500 2WD trucks 4.0" in front thanks to tough trail-proven 4.0" powdercoated steel strut extensions that bolt directly to the top of the factory strut. Unlike some kits which require you to cut off your strut studs or break the top hat seal which are irreversible modifications, our rugged strut extensions require No Modifications to be made to the strut in order to install the extension. This guarantees the strut will maintain the factory integrity as well as drastically reducing installation time.

At the heart of the system is our all-new 100% DOM tubular upper control arm. This new heavy-duty control arm features OEM-style ball joints pre-pressed into a strong crown that retains OEM geometry throughout the suspension cycle and doesn't require any modifications to the spindle. That means no drilling or machining to make the ball joints fit the spindle. The new Control Arms,Shop All Parts include 90-degree grease fittings to insure the life of the new polyurethane bushings. Our new trail-tested Control Arms,Shop All Parts will provided additional clearance and correct geometry to allow for increased suspension travel.

To lift the rear of the Silverado/Sierra pickups this lift system includes 3.0" OEM-style cast iron rear lift blocks and u-bolts. Our 3.0" rear lift blocks include the correct pinion angle correction and axle locating ears for perfect fit and performance. This block replaces the factory 1.25" rear block for an increase of 1.75" which will provide approximately .5" of rear to front rake. A slight rake is helpful for towing or hauling.

Completing this great new lift system are a set of steel rear shock extensions. No need to replace your great-riding factory rear shocks with inferior aftermarket shocks. These new shock extension brackets keep the rear shocks in the factory mounting position which means your truck will ride great! And that's important!

Speaking of riding great, it is ReadyLIFT's philosophy that every lift system we manufacture should maintain and/or improve the factory ride when installed and used as recommended. The ReadyLift 69-3285 4.0" SST Lift Kit will make your truck ride and handle great while providing the raised height you have been wanting. Every one of our test vehicle owners have commented on how great the truck rides both on and off road with this system.

Like all ReadyLIFT products, the 69-3285 SST Lift Kit System is protected by our Limited Lifetime Warranty.

NOTE: The ReadyLIFT 4" SST Lift Kit is designed for use with Aftermarket Wheels with a backspacing of 5.25". If you intend to run the stock wheels with an aftermarket larger tire, a wheel spacer is required to prevent the tire from touching the control arm at full locked turn. ReadyLift has developed a CNC-machined billet aluminum wheel spacer 10-3485 for use with factory wheels which have the stud pockets cast into the wheel next to the lug holes on the back side of the wheel.

To run the OE/Factory wheels AND tires, you will need to use the"ReadyLIFT 1/2" Billet Wheel Spacers for use with OE/Factory wheels and tires".

NOTE: Some 2016 models are coming with a New Hydro Form (Stamped) UCA and LCA that is not allowing for installation of the 4" SST kits. These models can be identified with a build code of "AVV". This lift kit is not recommended for these models with stamped steel Control Arms at this time. This kit fits 2007-2013 2WD AND 2014-16 2WD 1500 trucks that have the steel upper control arm ONLY. Not for use on 2014-up trucks with Aluminum upper Control Arms.

NOTE: Not for use for off-roading purposes.

Features & Benefits:
Keeps your factory ride - Guaranteed
Will never wear, break or fail - Guaranteed
Toughest finish – Guaranteed
Safest way to lift - Guaranteed
Allows for up to 33" tires on aftermarket wheels
Allows for up to a 22x9.5 wheel with 5.5" of backspacing
17x9 +0 offset on a 285/70R17 will fit with no rubbing. With a 295/70r17 minor trimming/modification required.
Limited Lifetime Warranty
Reduced Installation Time - Save An Hour Or More On Installation Compared to Other Similar Kits

Vehicle Applications

2007-2020 Chevrolet Silverado 1500 2wd
2007-2020 GMC Sierra 1500 2wd

Tires & Wheels

33" Maximum tire diameter
33x11.50 for no rub on a 9" wide wheel with +6 offset
18" - 295/65R18
20" - 285/60R20
22" - 285/50R22

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 43.0 lbs.
  • W8.0000” x H12.0000” x L18.0000”
  • Free Ground Shipping | Exclusions Apply*
  • Free Ground Shipping Unavailable | This Product Does Not Qualify*
