369.20 | Dodge 5 Inch Suspension Lift Kit w/ Coil Spacers, Premium N3 Shocks
Ram | 2013-2015 3500 Pickup 4wd
369.2
Pricing:
$1,676.95
Description

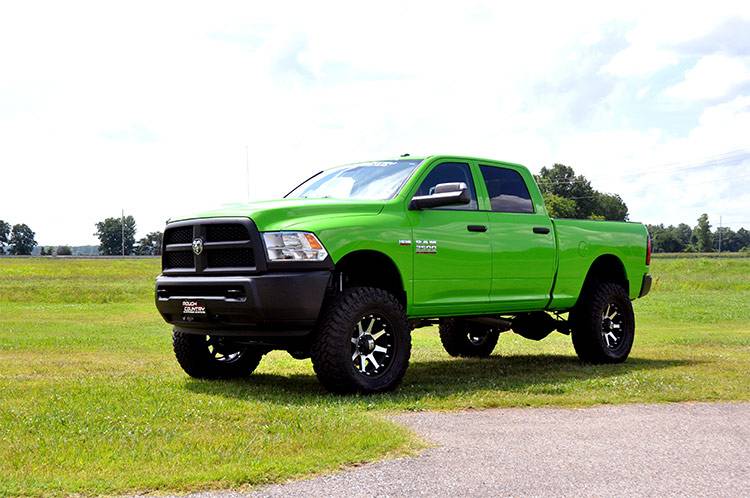

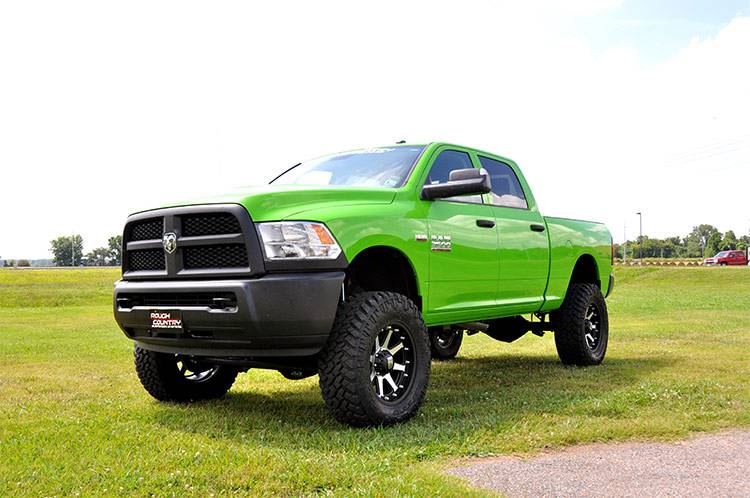

Compliment your RAM 3500's aggressive, good looks with Rough Country's new 5-inch Lift Kit. New model RAM Trucks come with a wealth of impressive features right from the factory. Rough Country's new 5-inch kit was engineered to retain these impressive factory specs while bumping up performance and durability where it's needed most. The result is an aggressive, lifted beast with an mean profile and lush ride-quality that'll make other RAM owners wonder where you got yours from!
When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's new 5-inch Suspension kit features a set of ultra-durable Radius Arms, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle. These beefy, upgraded Radius Arms also feature a durable, Clevite Rubber Bushing for maximum vibration absorption. In a further effort to preserve the truck's factory ride, this kit retains the factory progressive rate coil spring -- designed by Dodge specifically for the weight and ride quality of these new model trucks.
Get the look you really want for your truck with an easy-to-install kit, at an incredible price!
FEATURES
Increased ground clearance
Maintains factory progressive rate coil springs
Track bar bracket keeps the front axle properly centered.
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
NOTES - IMPORTANT
Requires minor drilling and cutting.
Does NOT fit Dually models.
Does NOT fit "Power Wagon" models.
Does NOT fit models with rear air suspension.
Models equipped with factory rear overload springs will need to remove the overload spring
On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing.
SPECS
SKU 369.20
Est. Install Time 4-6 hours
Recommended Tire Size 37x12.50
Recommended Wheel Backspacing 5"
When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's new 5-inch Suspension kit features a set of ultra-durable Radius Arms, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle. These beefy, upgraded Radius Arms also feature a durable, Clevite Rubber Bushing for maximum vibration absorption. In a further effort to preserve the truck's factory ride, this kit retains the factory progressive rate coil spring -- designed by Dodge specifically for the weight and ride quality of these new model trucks.
Get the look you really want for your truck with an easy-to-install kit, at an incredible price!
FEATURES
Increased ground clearance
Maintains factory progressive rate coil springs
Track bar bracket keeps the front axle properly centered.
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
NOTES - IMPORTANT
Requires minor drilling and cutting.
Does NOT fit Dually models.
Does NOT fit "Power Wagon" models.
Does NOT fit models with rear air suspension.
Models equipped with factory rear overload springs will need to remove the overload spring
On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing.
SPECS
SKU 369.20
Est. Install Time 4-6 hours
Recommended Tire Size 37x12.50
Recommended Wheel Backspacing 5"
Vehicle Applications
2013 - 2015 Ram 3500 Pickup
NOTES - IMPORTANT
Requires minor drilling and cutting.
Does NOT fit Dually models.
Does NOT fit "Power Wagon" models.
Does NOT fit models with rear air suspension.
Models equipped with factory rear overload springs will need to remove the overload spring On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing.
NOTES - IMPORTANT
Requires minor drilling and cutting.
Does NOT fit Dually models.
Does NOT fit "Power Wagon" models.
Does NOT fit models with rear air suspension.
Models equipped with factory rear overload springs will need to remove the overload spring On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing.

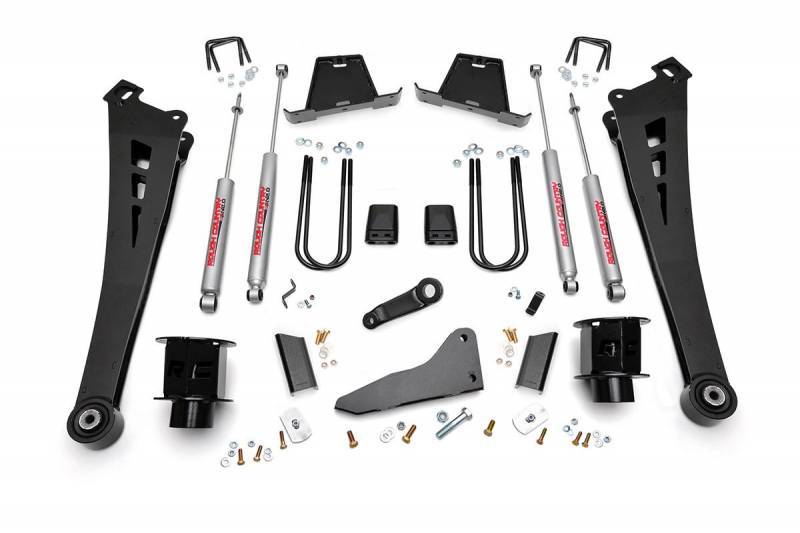

Components
FRONT
Coil spring spacers
Radius arms
Track bar bracket
Sway-bar brackets
Pitman arm
Hardware
REAR
4in fabricated lift blocks
U-bolts
Hardware
SHOCKS
(4) Premium N3 Series
Coil spring spacers
Radius arms
Track bar bracket
Sway-bar brackets
Pitman arm
Hardware
REAR
4in fabricated lift blocks
U-bolts
Hardware
SHOCKS
(4) Premium N3 Series
Details
- 369.2
- 369.2
- 843030126698
- Rough Country
- New
Categories
Shipping Information
- Item Requires Shipping
- 125.0 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
