FTSK2130 | Fabtech 6 Inch Basic System With Performance Shocks (2008-2016 F350, F450 Super Duty 4WD 8 Lug)

2008-2016 Ford F350 Super Duty 4WD | 2011-2016 Ford F450 Super Duty 4WD 8 Lug

K2130
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Pricing: $2,026.84
Qty:

Description

2008-16 FORD F350 4WD
2011-13 FORD F450 4WD [8 LUG]

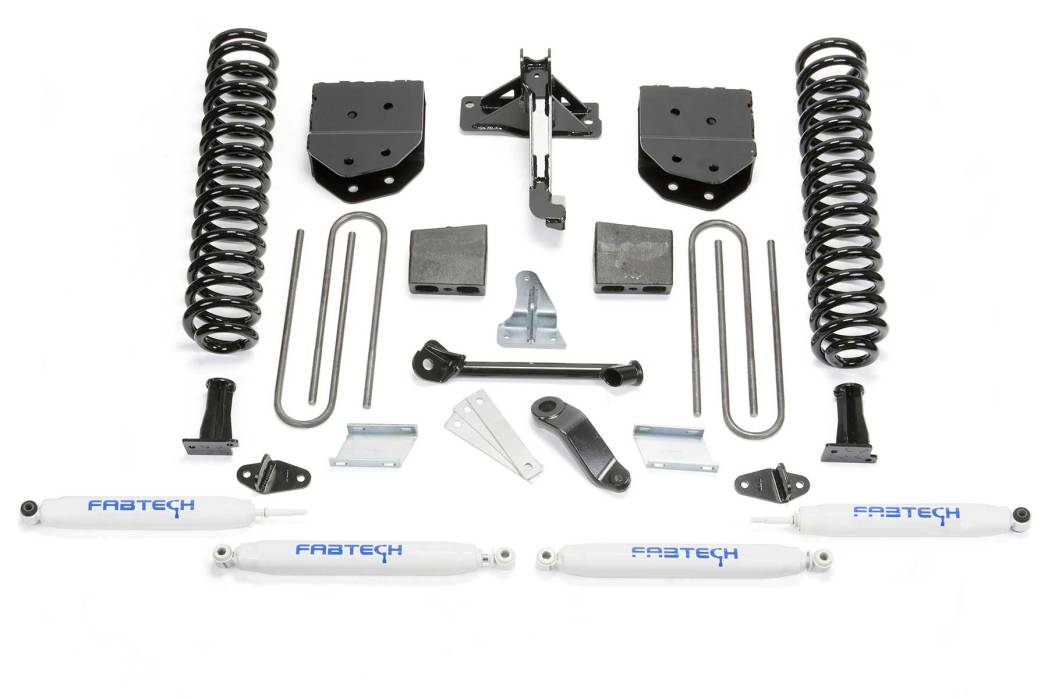

This system utilizes the factory Radius Arms with new heavy duty frame brackets for the budget minded offroader. Lift height is accomplished with Fabtech Performance Coil Springs in the front and a Block & U-bolt kit in the rear. Also included are a Trac Bar relocation bracket, Pitman Arm and Sway Bar brackets.

FEATURES

  • Fabtech Front Coil Springs
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Block & U-bolt

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22024BK COIL BOX KIT
1 FTS22138 COMPONENT BOX
1 FTS22103 REAR BLOCK KIT
2 FTS7188 FRONT PERFORMANCE SHOCKS
2 FTS7266 REAR PERFORMANCE SHOCKS

FOOTNOTES

3. Non dually models only.
27.Front diveshaft modification may be required to clear exhaust on gas motor.

Application List

2008-2016 Ford F350 Super Duty 4WD
2011-2016 Ford F450 Super Duty 4WD 8 Lug

Tires & Wheels

Tire Size – 315/70R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 221.5 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
