59930 | 4 Inch Ford Suspension Lift Kit w/ Strut Spacers, Premium N3 Shocks

Ford | 2009-2010 F-150 Pickup 4wd

SKU: 59930

Pricing: $1,536.95

Description
Vehicle Applications
Components
Details
Shipping
Documents

Description

FEATURES
Track width remains the same as factory
Increased ground clearance
Levels the front with the rear of the vehicle
Optional Lifted front struts help maintain smooth, factory-like ride
Optional Front struts are structurally engineered for lifted applications
Optional Front struts are lifted 4-inches, eliminating the need for strut spacers

NOTES - IMPORTANT
Requies minor cutting and drilling.
9-inch wide wheels are recommended.

SPECS
SKU 59930
Est. Install Time 8-10 hours
Recommended Tire Size 35x12.50 R18
Recommended Wheel Backspacing 4.5" - 5"

Vehicle Applications

2009 - 2010 Ford F-150 Pickup

NOTES - IMPORTANT
Requires minor cutting and drilling.
9" wide wheel is recommended.

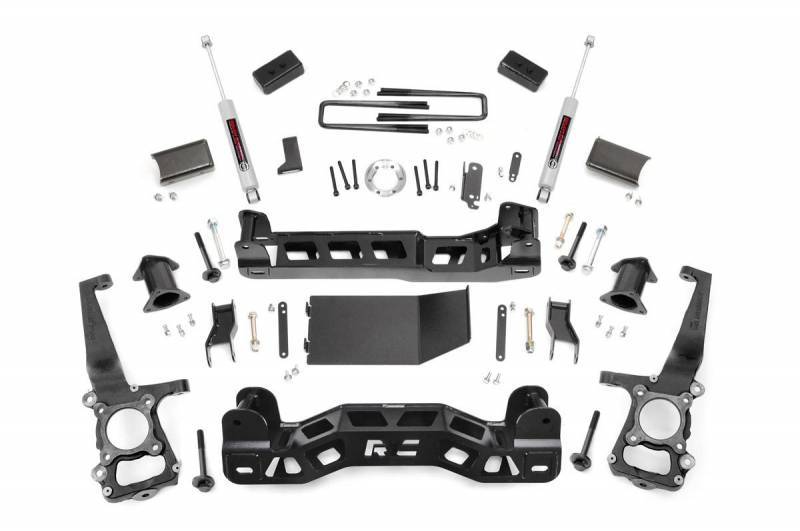

Components

FRONT
Lifted knuckles
Upper strut spacers
Front crossmember
Rear crossmember
Sway-bar drop brackets
Differential drop brackets
Brake line brackets
Driveshaft spacer
Hardware

REAR
2-inch lift blocks
Brake line relocation brackets
U-bolts
Hardware

SHOCKS
(2) Rear Premium N3 series
