68422 | 6 Inch Jeep X-series Suspension Lift Kit (07-18 Wrangler JK)

Jeep | 2007-2018 JK Wrangler 4wd | Does NOT fit 4-door models

68422
Pricing: $2,095.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

FEATURES
Easy bolt-on installation
Increased ground clearance
Levels the front with the rear of the vehicle
Front adjustable track bar is made of forged solid steel for unsurpassed strength and durability
Coil correction plates correct the rear coil spring angle by 10 degrees, allowing them to function more effeciently.
Includes our N3 series shock absorbers.
X-Flex control arm features:
Clevite brand OEM style rubber bushings.
Flex joints feature a massive 2.5" diameter body and 1.25" thread.
Fully greasable.

NOTES - IMPORTANT
Does NOT fit 4-door (Unlimited) models.
2012-up models require exhaust modifications to clear the front driveshaft. (#1030)
Front and rear driveshafts are REQUIRED to replace the factory limited travel driveshafts.

SPECS
SKU 68422
Est. Install Time 6-8 hours
Recommended Tire Size 37x12.50 R17
Recommended Wheel Backspacing 4.5" - 4.75"

Vehicle Applications

2007 - 2018 Jeep Wrangler JK

NOTES - IMPORTANT
Does NOT fit 4-door (Unlimited) models.
2012-2018 models require exhaust modifications to clear the front driveshaft (#1030) Front and rear driveshafts are REQUIRED to replace the factory limited travel driveshafts.

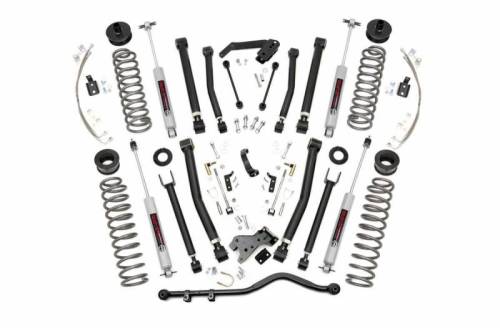

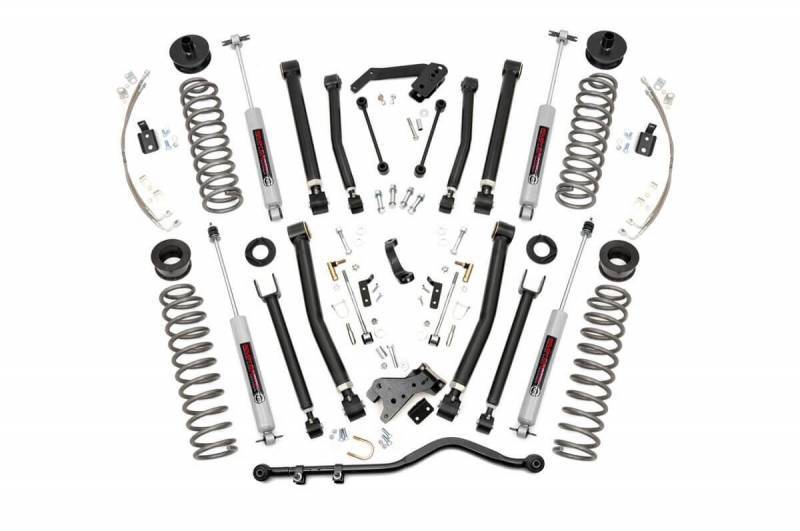

Components

Front
Lifted coil springs
Coil spring spacers
Upper adjustable control arms
Lower adjustable control arms
Sway-bar quick disconnects
Forged adjustable track bar
Track bar bracket
Pitman arm
Stainless steel braided brake lines
Shock relocation brackets
Hardware

Rear
Lifted coil springs
Coil spring spacers
Upper adjustable control arms
Lower adjustable control arms
Coil correction plates
Track bar drop bracket
Extended sway-bar links
Stainless steel braided brake lines
Hardware

Shocks
(4) Premium N3 Series

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 125.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
