FTSK2183 | Fabtech 4 Inch Basic System With Performance Shocks (2009-2013 F150 Pickup 4WD)

2009-2013 Ford F150 Pickup 4WD

K2183
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Pricing: $2,562.62
Qty:

Description

2009-13 FORD F150 4WD

Fabtech’s 4” F150 system utilizes their proven heavy duty construction and design features found in their 6” systems but with less lift and at a much lower price. This 4” System allows use of 35” tall tires and features high arched lower control arm crossmembers constructed of 1/4 “ thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration.

The Basic System includes heavy duty front Coilover shocks for increased dampening capacity while retaining the factory coil springs and Fabtech’s Performance rear shocks.

The 4” System allows use of 33” or 35” tires and is ESC (Electronic Stability Control) and Traction Control compliant.

FEATURES

  • Heavy Duty 1/4″ Thick, High Arched Crossmember
  • Ductile Iron Steering Knuckles
  • Front Coilover Spacers
  • Rear Block & U-bolt Kit

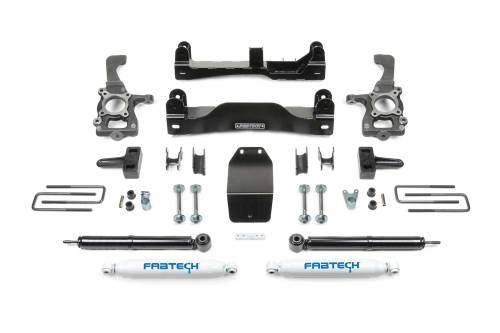

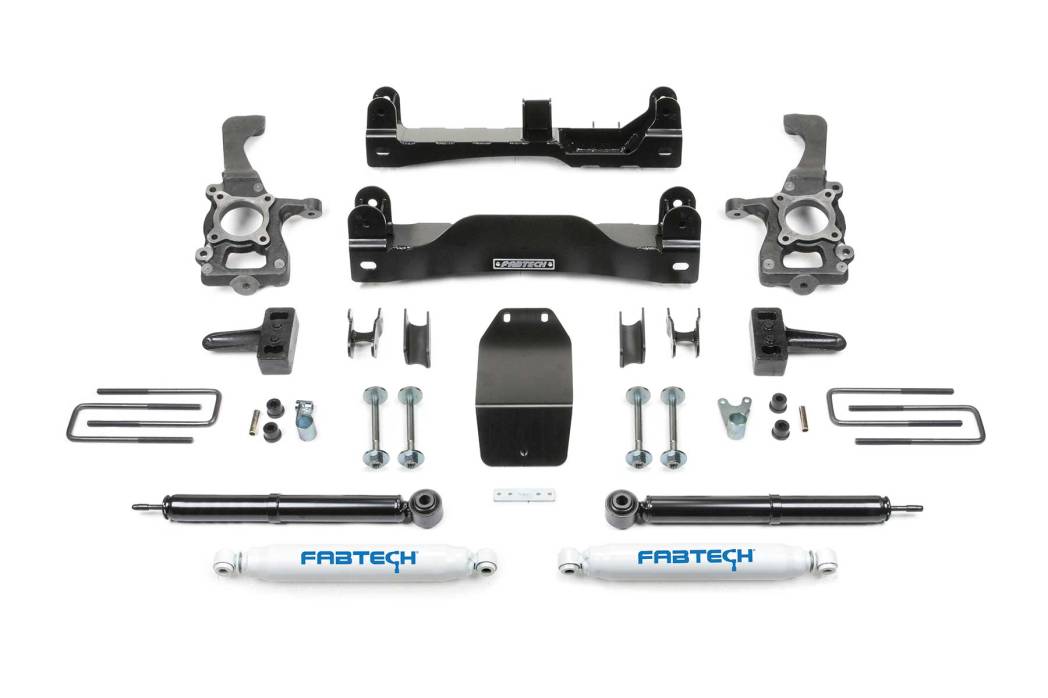

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22155 COMPONENT BOX 1
1 FTS22156 COMPONENT BOX 2
2 FTS7266 REAR PERFORMANCE SHOCK

FOOTNOTES

14. Cannot use OEM wheel and tire.
20. Does not fit Standard Cab.
123. Will not fit Raptor models.
124. Requires cutting of fenderwell sheetmetal for use with 35″ tires.

Application List

2009-2013 Ford F150 Pickup 4WD

Tires & Wheels

Tire Size – 35/12.50R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
Tire Size – 295/70R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 236.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
