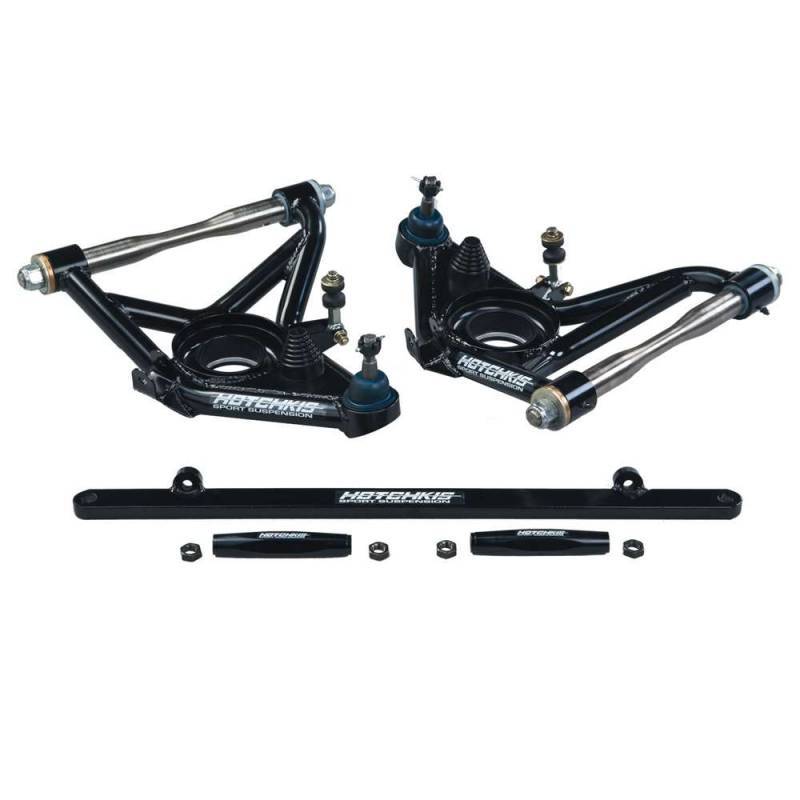

11390L 1963-1972 GM C-10 Truck Tubular Lower Control Arms

11390L
Hotchkis Sport Suspension 11390L 1963-1972 C-10 Tubular Lower Control Arms. Install the Hotchkis Sport Suspension Tubular Lower A-Arms on your 63-72 C-10 Pickup and gain vastly increased handling and control. These 100% TIG-welded control arms are packed with features to make your truck handle like a G-machine
Please Call for Availability
1-800-606-3767
Shipping: Free Ground Shipping Unavailable | This Product Does Not Qualify*

Description

Features & Benefits:

  • Redesigned to increase wheelbase by 1.8 and add up to +9 Caster
  • 100% TIG welded 1.5 tubular steel construction.
  • CNC machined inset spring cup with Polyurethane coil spring isolators.
  • Precision aluminum ride height adjustment shims
  • Gusset Reinforced Shock Mounts
  • 4130 CNC Machined Cross Shaft / w Bronze Bushing & Delrin Bushings
  • High quality Lower Ball Joints installed.
  • Semi-Gloss Black Powder Coat finish.
  • Includes Rod End style end links.
  • Includes fabricated center link and heavy duty tie rod sleeves that eliminate bump steer.

Install the Hotchkis Sport Suspension Tubular Lower A-Arms on your 63-72 C-10 Pickup and gain vastly increased handling and control. These 100% TIG welded; control arms are packed with features to make your truck handle like a G-machine. Completely re-engineered these arms extend the wheelbase 1.8 and add up to +9 Caster for precise handling and maximum front end grip. The arms also feature CNC machined inset spring cups with polyurethane spring seats, and a Hotchkis exclusive, shim system that allows fine tuning the ride height up or in increments for different wheel/tire combinations or motors. 4130 Chromoly cross shafts are also included along with a bronze rear bushing for maximum heat resistance and smooth operation. The front bushing is smooth operating Delrin and is greasable for maximum service life. To control bump steer weve included a specially engineered center link assembly and heavy duty tie rod sleeves. High articulation heim joint end links are included, as well as reinforced shock mounts and heavy duty ball joints. The arm is finished in gloss black powdercoat and comes complete and ready to install. You wont find a better quality, more thoroughly engineered arm from any other source. For even greater handling improvements combine with the Hotchkis Sport Suspension Tubular Upper AArms.

PROUDLY MADE IN THE USA.
