50720 | McGaughys 7 to 9 Inch Lift Kit, 2007-2013 GM Truck 1500 4WD

7″-9″ Premium Lift kit
Lift kit comes powder-coated silver

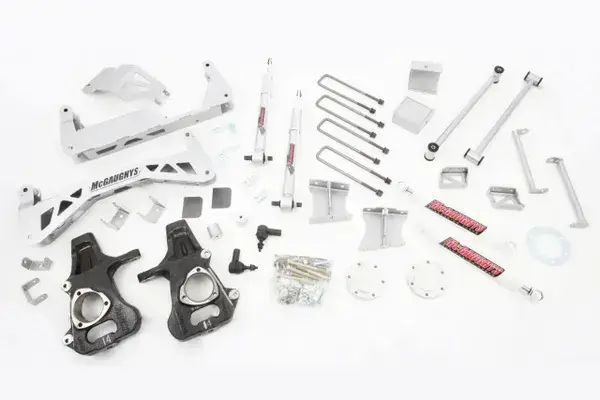

Kit Includes:
(2) Spindles
(1) Front Crossmember
(1) Rear Crossmember
(2) Compression Struts
(1) Skid Plate
(2) Lift Blocks W/ U-bolts & Hardware
(2) Lower A-frame Support Rods
(2) Differential Drops
(4) Compression Strut Brackets
(2) Sway Bar Drops
(2) Sway Bar Extenders
(1) Wheel Spacer
(2) Re-enforcement Plate
(2) Cv Axle Spacers
(2) Tie-rods
(2) Front Brake Line Brackets
(2) Rear Shocks
(2) Adjustable Lift Struts

Fitment
2007-2013 GM 1500 Trucks 4WD Models

Optional Add-Ons
MS50706 Upper Control Arms (sold separately)
MS51050 Billet Ball Joint Caps for Upgraded Upper Control Arms (sold separately)
MS50018 Traction Bars (sold separately)
MS51321 (BLACK) Billet Face Plates for Traction Bars (sold separately)
MS51323 (RAW) Billet Face Plates for Traction Bars (sold separately)
MS50115 Upgraded Boxed Compression Struts (sold separately)
MS50005 Rear Add-a-Leaf (sold separately)

Replacement Parts
MS3507 Front Strut
MS2950R ear Shock
MS50704 Outer Tie Rod End
MS50705 Rear Lift Blocks & U-Bolts

PLEASE NOTE:
If you are adjusting this kit to 8″ or 9″, you will need the Rear Add-a-Leaf #50005 (sold separately) to bring the rear of vehicle up

If running this kit at the 9″ position, we highly recommend using Upper Control Arms #50706 (sold separately) to help with bump stop clearance issues

Over-sized tires and heavier wheels can cause premature wear on factory and aftermarket components like ball joints, bushings, tie-rod ends, wheel bearings, idlers arms, drive-lines, etc… You may need to replace / install new components sooner than factory recommendations based on the wheels and tires you choose. Please note that the heavier and wider wheels and tires combined with aggressive driving (off-road and on highways) will cause more wear on ALL moving parts, factory and aftermarket. Especially when vehicle is in 4wd or Auto-4wd / AWD modes.

Spindles and u-bolts are shipped with protective coating on surface. This allows them to be delivered to you without rust. We recommend you clean and paint the parts before you install, to protect against any future rust. Remember, spindles and u-bolts are bare metal. And will rust without paint.
