FTSK1056DL | Fabtech 3.5 Inch Ultimate System With Dirt Logic Shocks (2011-2019 Silverado, Sierra 2500 HD, 3500 HD)

2011-2019 Chevrolet Silverado 2500 HD, 3500 HD 2WD/4WD | 2011-2019 GMC Sierra 2500 HD, 3500 HD 2WD/4WD

K1056DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $3,494.79
Qty:

Description

2011-19 CHEVY SILVERADO 2500HD/3500HD | GMC SIERRA 2500HD/3500HD 2WD/4WD

Our 3.5” System provides less lift than our 6” RTS™ system but still allows use of 33” or 35” tall tires with cutting for street and offroad use. We have developed this system utilizing replacement upper control arms constructed of 1.50” OD .120” thick wall DOM tubing that attaches to heavy duty Fabtech ductile iron steering knuckles. The factory torsion bars remain in the stock position and use new forged adjusting keys to provide the proper amount of lift.

This system will level the stance of the vehicle compared to the factory nose down rake with no change to the rear suspension. For those customers that require a factory nose down appearance an optional 1″ rear block kit is available (2500HD Part # FTS21110) or (3500HD Part # FTS21111).

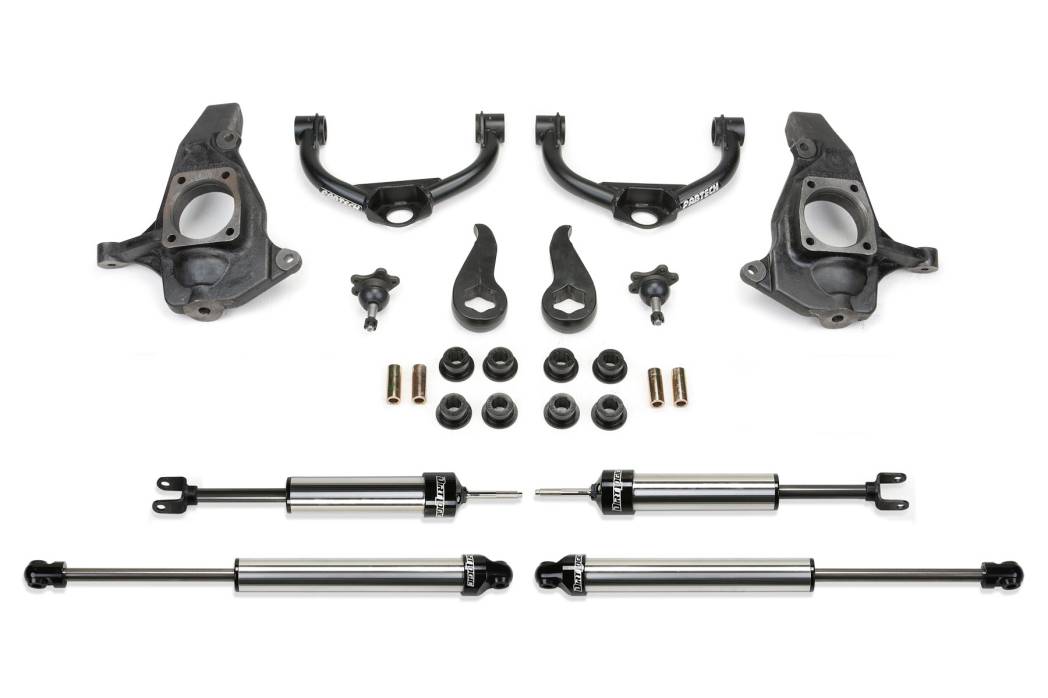

  • Upper Control Arms Built With Same Materials Found On Trophy Trucks
  • .120" Wall 4130 Chromoly Tubing. 1.50" OD
  • .250" wall DOM Bushing Barrels
  • Extended Range Ball Joints
  • Ductile Iron Steering Knuckles
  • Forged Torsion Bar Keys

PART NUMBERS

QTY PART # DESCRIPTION
1 FTS21199 COMPONENT BOX W/DIRT LOGIC SHOCKS

FOOTNOTES

20. Will not fit standard cab models.
114. Will not fit 17” wheels.
124. Requires cutting of fenderwell sheetmetal for use with 35” tires.
199. Does not fit GMC AT4 or Chevy Trail Boss models.

Application List

2011-2019 Chevrolet Silverado 2500 HD 2WD/4WD
2011-2019 Chevrolet Silverado 3500 HD 2WD/4WD
2011-2019 GMC Sierra 2500 HD 2WD/4WD
2011-2019 GMC Sierra 3500 HD 2WD/4WD

Tires & Wheels

Tire Size – 33/12.50R18 Wheel Size – 18×9 w/ 5 3/4in BS w/minor trimming
Tire Size – 33/12.50R20 Wheel Size – 20×9 w/ 5 3/4in BS w/minor trimming
Tire Size – 35/13.50R18 Wheel Size – 18×9 w/ 5 3/4in BS w/fenderwell cutting
Tire Size – 35/13.50R20 Wheel Size – 20×9 w/ 5 3/4in BS w/fenderwell cutting

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
