FTSK7019 | Fabtech 6 Inch Lift System With Performance Shocks For Toyota Tacoma 2WD/4WD (2005-2014) | 6 Lug
6 Inch Lift System With Performance Shocks For Toyota Tacoma 2WD/4WD (2005-2014) | 6 Lug
Description
Fabtech 6" Basic Lift System includes steel coilover shock spacers that utilize the stock front coilover shocks for a factory-like ride. This system also includes Fabtech's proven IFS technology with extended-length ductile iron steering knuckles and arched cross members for exceptional suspension ground clearance with a 1/4" thick differential skid plate, impact struts, heavy-duty tie rods, rear add-a-leafs and more.
Fits 2005 - 2014 model year Tacoma 6-Lug models only. Will not fit any 5-Lug trucks.
This kit is a revised Fabtech 6" Lift System compatible with Tacoma models equipped with VSC—Vehicle Stability Control! That's right, this lift will work with VSC and non-VSC-equipped trucks! This suspension lift system features Fabtech's proven IFS technology with extended-length steering knuckles and arched cross members for excellent on- and off-road performance.
Lift is accomplished via a steel coilover shock spacer system that helps retain the vehicle's stock ride characteristics. The rack and pinion remain in the factory location, reducing the time necessary to install the kit. Also included in this system are a 1/4-thick differential skid plate and impact struts.
Factory front shocks are reused when installing this lift. Fabtech offers two very different Rear Shock Absorbers for use with this 6" Suspension Lift System. The Fabtech Performance Series Shock are the least inexpensive shock Fabtech offers and includes them with the K7019 Kit. These "performance" shocks have been around and remain unchanged for almost 10 years.
The ride quality of the "Performance" series is adequate for street and light off-road use. The Fabtech Dirt Logic Series Shocks are Fabtech's newest shock design that are made in-house by Fabtech. The Dirt Logic Series Shocks are a race-quality shock that not only look better than the Performance Series but ride better, too! If you want the ultimate performance from your Tacoma, the Dirt Logic non-reservoir rear shock is the better choice. Selecting shocks for use with this kit is easy, simply click on the selection box located above this item description and select which shock absorber you want.

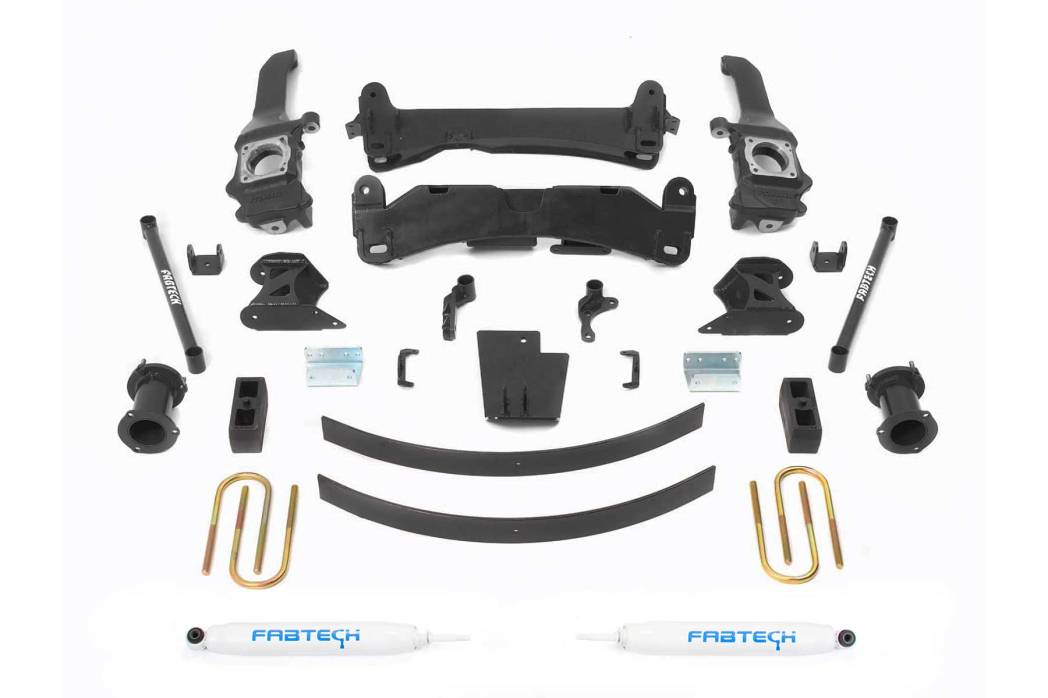

Features
- Heavy Duty 1/4" Thick, High Arched Crossmember
- Ductile Iron Steering Knuckles
- Heavy Duty 1/4" Thick Steel Skid Plate
- Front Coilover Spacers
- Impact Struts
- Rear Block & U-bolt Kit
- Rear Add-a-leaf Kit
PART NUMBERS
OTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS26026BK | COMPONENT BOX 1 |
1 | FTS26007BK | COMPONET BOX 2 |
1 | FTS26010BK | COILOVER SPACER BOX |
2 | FTS7181 | REAR PERFORMANCE SHOCKS |
Footnotes
- Does not fit Baja Series models.
- Lift kit is designed to clear a 315/70R17 tire.
- Wheel back space should not exceed 4 5/8 inches.
Application List
Details
- K7019
- K7019
- 674866023239
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H12.0000” x L48.0000”
