FTSK1045 | Fabtech 6 Inch RTS System With Performance Shocks(2001-2010 Silverado, Sierra 2500 HD, 3500 HD)
2001-2010 Chevrolet Silverado 2500 HD, 3500 HD 2WD/4WD | 2001-2010 GMC Sierra 2500 HD, 3500 HD 2WD/4WD
Description
2001-10 CHEVY SILVERADO 2500HD/3500HD | GMC SIERRA 2500HD/3500HD 2WD/4WD
The all new RTS® (Raised Torsion Suspension) system utilizes patent pending torsion bar brackets that keep the torsion bars raised up, in the stock location. This feature provides superior ground clearance at the frame as there is no torsion bars hanging down to become high centered on or damaged when offroading.
The RTS® system has been designed with unitized bracketry reducing the installation time and providing increased strength. Our signature high arched crossmembers are constructed of 1/4” thick steel and feature tubular cross braces with a 1/4” thick steel front differential skid plate. The construction of the crossmembers, using 1/4” thick steel, is an important part of this system. Only 1/4” thick steel provides the rigidity and strength necessary to relocate the torsion bars, bump stops and lower control arms properly.
Fabtech has performed rigorous on and offroad testing of this new RTS® system to establish the proper bump stop engagement, torsion bar location and shock valving for a superior performing suspension system. This industry leading system rewrites how an IFS suspension system should function for ultimate offroad use with great highway manners.

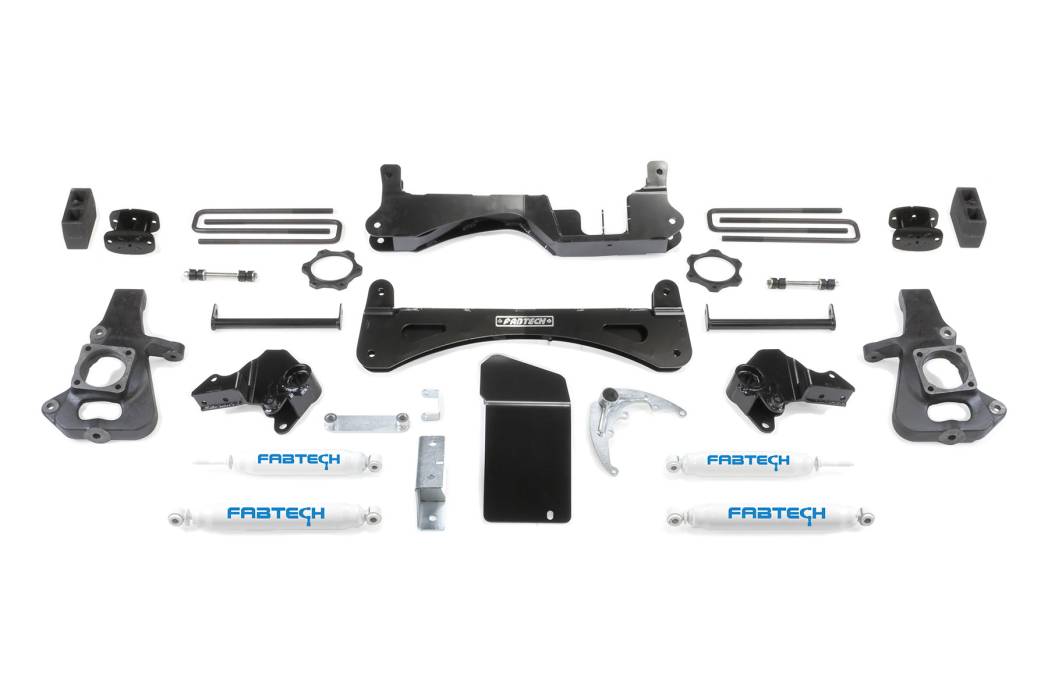

FEATURES
- Heavy Duty 1/4" Thick, High Arched Crossmember
- Front Differential Skid Plate
- Ductile Iron Steering Knuckles
- RTS® Torsion Bar Brackets
- Billet Sway Bar End Links
- Rear Block & U-bolt Kit
PART NUMBERS
QTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS21089 | COMPONENT BOX 1 |
1 | FTS21090 | COMPONENT BOX 2 |
2 | FTS7191 | FRONT PERFORMANCE SHOCKS |
2 | FTS7333 | REAR PERFORMANCE SHOCKS |
FOOTNOTES
4. Larger tires cannot be installed on OEM wheels.
12. Does not fit models with Quadrasteer.
15. Will experience some loss of turning radius.
50. Installation requires welding.
Tires & Wheels
Tire Size – 315/70R17 Wheel Size – 17×8 w/ 4 5/8in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18×8 w/ 5in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×8.5 w/ 4 3/4in BS w/minor trimming
Application List
2001-2010 Chevrolet Silverado 3500 HD 2WD/4WD
2001-2010 GMC Sierra 2500 HD 2WD/4WD
2001-2010 GMC Sierra 3500 HD 2WD/4WD
Details
- K1045
- K1045
- 674866029033
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 267.4 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
