FTSK1059M | Fabtech 3 Inch Budget System With Stealth Shocks (2007-2018 Silverado, Sierra 1500 2WD/4WD with OE Forged Steel Control Arms)
2007-2018 Chevrolet Silverado 1500 2WD/4WD | 2007-2018 GMC Sierra 1500 2WD/4WD | With OE Forged Steel Control Arms
Description
2007-18 CHEVY SILVERADO 1500 | GMC SIERRA 1500 2WD/4WD

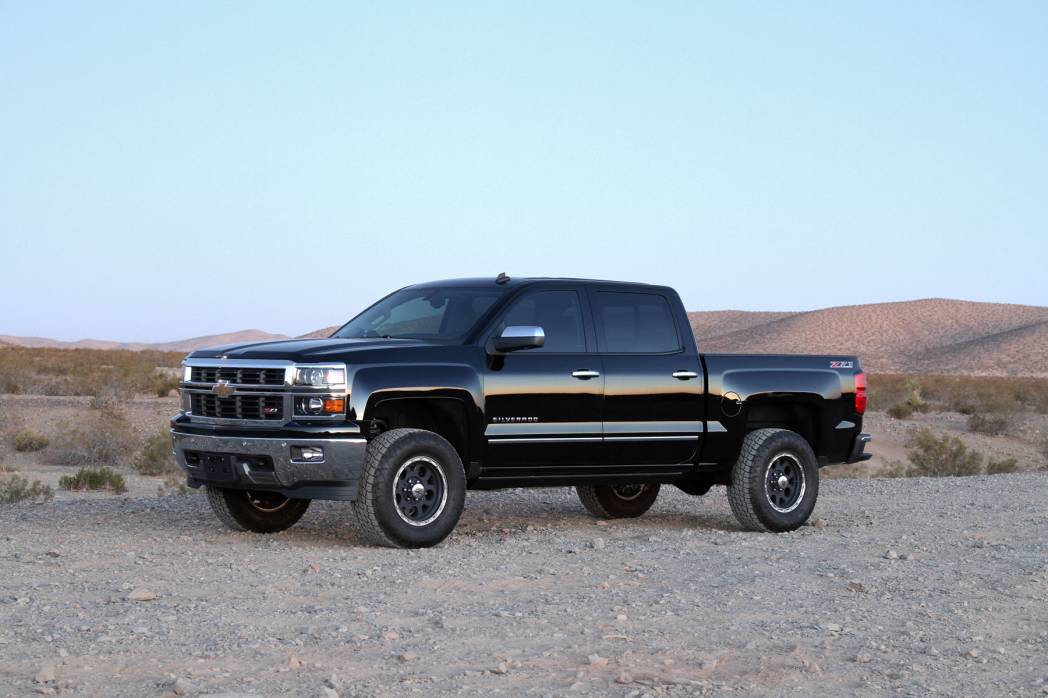

Designed for the value minded enthusiast, the 3.5” lift kit for GM C/K1500’s provides a mild lift height with a supple ride for use with 33” tall tires.
Fabtech’s replacement DOM upper tubular control arms feature heavy duty extended range ball joints that provide additional strength to the front suspension. The new ball joints provide unrestricted movement throughout the suspension travel range for smooth operation. The front differential housing is relocated to keep CV angles proper with the new ride height while a 1/ 4” thick steel skid plate protects the front diff. The rear lift comes from a 1 1/2" lift block and u bolt system.

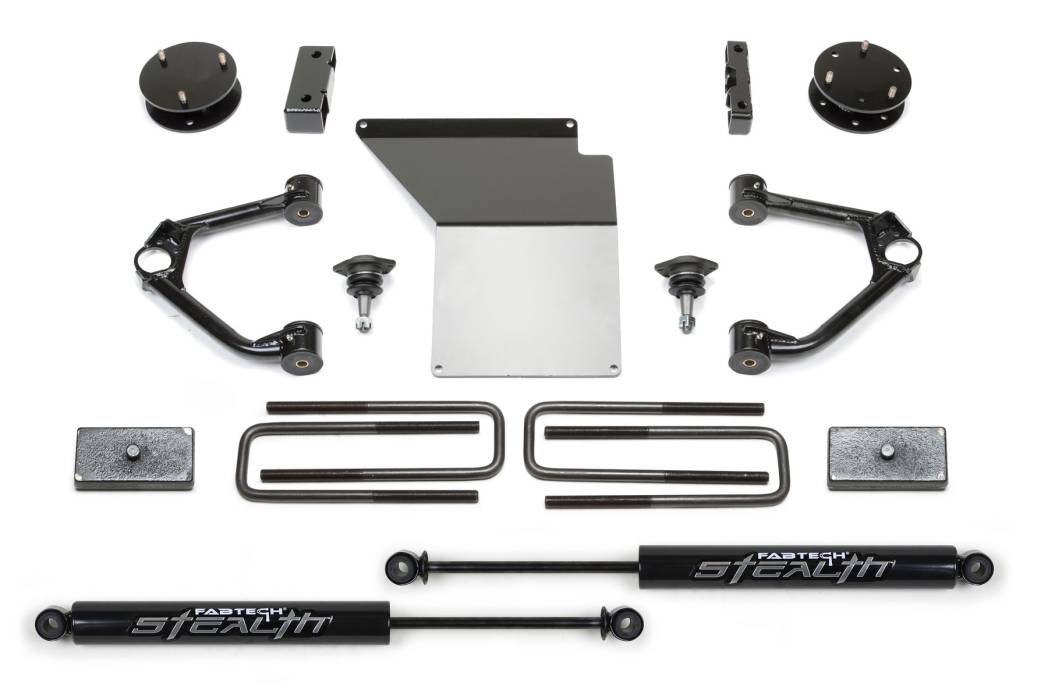

FEATURES
- Replacement DOM Upper Tubular Control Arms
- Extended Range Ball Joints
- Front Differential Skid Plate
- Rear Block & U-bolt Kit
PART NUMBERS
QTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS21186 | COMPONENT BOX W/ STEALTH SHOCKS |
FOOTNOTES
8. Will not fit all wheel drive models.
14. Cannot use OEM wheel and tire.
17. Does not fit standard cab.
Application List
2007-2018 GMC Sierra 1500 2WD/4WD
Tires & Wheels
Tire Size – 275/65R18 Wheel Size – 18×8 w/ 4 1/2in BS w/minor trimming
Tire Size – 295/55R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
Details
- K1059M
- K1059M
- 674866091399
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 73.2 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
