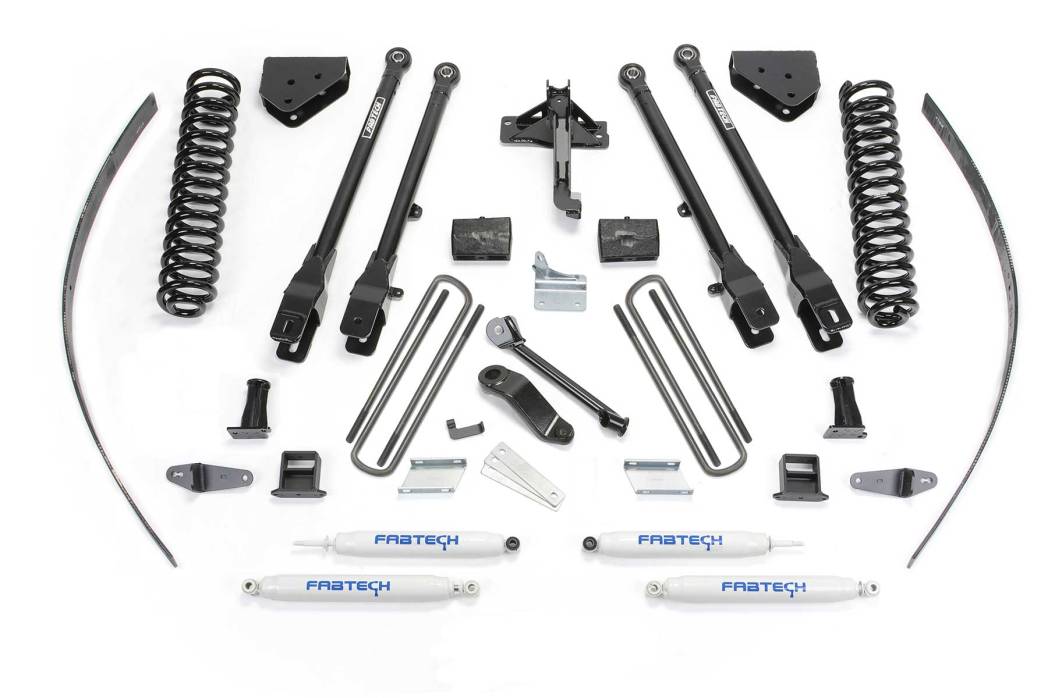

FTSK2126 | Fabtech 8 Inch 4 Link System With Coils and Performance Shocks (2008-2016 F250 Super Duty 4WD with Factory Overload)

2008-2016 Ford F250 Super Duty 4WD | With Factory Overloads

K2126
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $4,226.73
Qty:

Description

2008-16 FORD F250 4WD

At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our replacement Coil Springs. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift is an Add-a-leaf and block & u-bolt kit.

FEATURES

  • 2" OD Heavy Wall Links
  • Fabtech Heavy Duty 5 Ton Joints®
  • Fabtech Front Coil Springs
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Add-a-Leaf
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22025BK COIL BOX KIT
1 FTS22140 COMPONENT BOX 1
1 FTS22080BK COMPONENT BOX 2
1 FTS22105 REAR BLOCK & ADD-A-LEAF KIT
2 FTS7189 FRONT PERFORMANCE SHOCKS
2 FTS7266 REAR PERFORMANCE SHOCKS

FOOTNOTES

27. Front drive shaft modification may be required to clear exhaust on gas motor.

Application List

2008-2016 Ford F250 Super Duty 4WD With Factory Overloads

Tires & Wheels

Tire Size – 355/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 37/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 329.2 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
