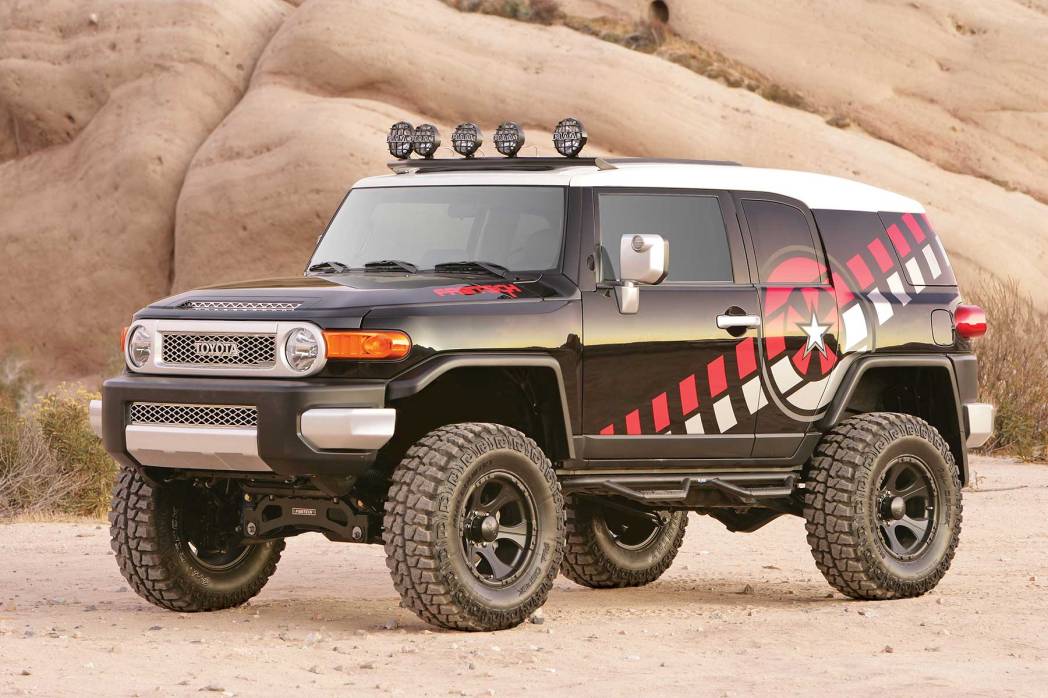

FTSK7006 | Fabtech 6 Inch Basic System With Performance Shocks (2006-2009 FJ Cruiser 4WD)

2006-2009 Toyota FJ Cruiser

K7006
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Pricing: $4,389.24
Qty:

Description

6″ BASIC SYSTEM W/ PERFORMANCE SHOCKS – K7006

2006-09 TOYOTA FJ 2WD/4WD

Fabtech’s FJ system features extended length steering knuckles attaching to one piece lower control arm crossmembers for a full 6 inches of lift to clear 35" tires. Front lower crossmembers feature adjustable alignment cams along with an integrated 1/4" thick steel differential skid plate. The Basic system retains the front strut assembly for a smooth highway ride with ease of installation. The Basic rear suspension systems include tubular upper and lower link arms, utilizing the stock rear coil springs for a supple highway ride with excellent offroad articulation. Installation does not require relocation of the Rack and Pinion or disassembly of the front strut assemblies. The stock front and rear driveshafts are retained due to Fabtech’s precise suspension geometry.

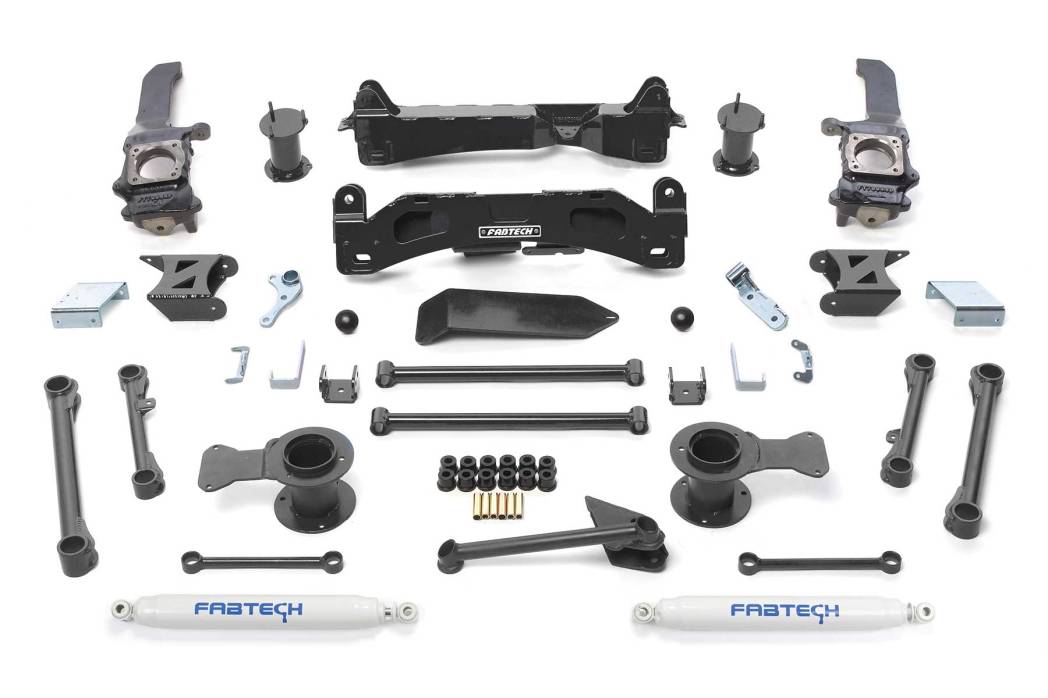

FEATURES

  • Heavy Duty 1/4" Thick, High Arched Crossmember
  • Ductile Iron Steering Knuckles
  • Heavy Duty 1/4" Thick Steel Skid Plate
  • Front Shock Spacer
  • Impact Struts
  • Sway Bar links
  • Rear Upper & Lower Link Arms
  • Rear Coil Spring Spacers

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS26016BK COMPONENT BOX 1
1 FTS26017BK COMPONENT BOX 2
1 FTS26010BK COILOVER SPACER KIT
1 FTS26018BK REAR BOX KIT
2 FTS7237 REAR PERFORMANCE SHOCKS

FOOTNOTES

68. Kit does not fit models with factory electronic controlled shocks.

Application List

2006-2009 Toyota FJ Cruiser

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 300.7 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
