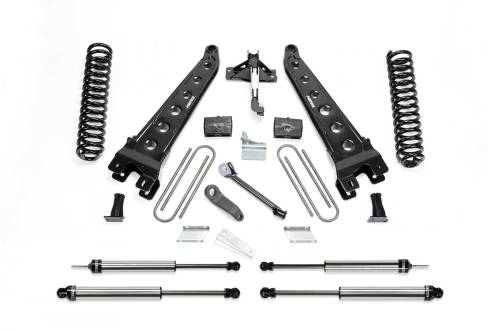

FTSK2131DL | Fabtech 6 Inch Radius Arm System With Coils and DLSS Shocks (2008-2016 F350, F450 Super Duty 4WD 8 Lug)

2008-2016 Ford F350 Super Duty 4WD | 2011-2013 Ford F450 Super Duty 4WD 8 Lug

K2131DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $4,760.01
Qty:

Description

2008-16 FORD F350 4WD
2011-13 FORD F450 4WD [8 LUG]

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift includes Fabtech Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift includes a Block & U-bolt kit.

FEATURES

  • Fabtech Replacement Radius Arms
  • Fabtech Front Coil Springs
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Block & U-bolt kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22024BK COIL BOX KIT
1 FTS22139 COMPONENT BOX
1 FTS22103 REAR BLOCK KIT
2 FTS810382 FRONT DIRT LOGIC 2.25 NON RESI
2 FTS810052 REAR DIRT LOGIC 2.25 NON RESI

FOOTNOTES

3. Non dually models only.
27. Front drive shaft modification may be required to clear exhaust on gas motors.

Application List

2008-2016 Ford F350 Super Duty 4WD
2011-2013 Ford F450 Super Duty 4WD 8 Lug

Tires & Wheels

Tire Size – 315/70R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 270.7 lbs.
  • W24.0000” x H12.0000” x L48.0000”
