FTSK2129 | Fabtech 8 Inch 4 Link System With Coils and Rear Leag Springs and Performance Shocks(2008-2016 F250, F350 Super Duty 4WD)
2008-2016 Ford F250 Super Duty 4WD | 2008-2016 Ford F350 Super Duty 4WD
Description
2008-16 FORD F250/F350 4WD
2011-13 FORD F450 4WD [8 LUG]
At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our replacement Coil Springs. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift is replacement Leaf Springs & u-bolt kit.

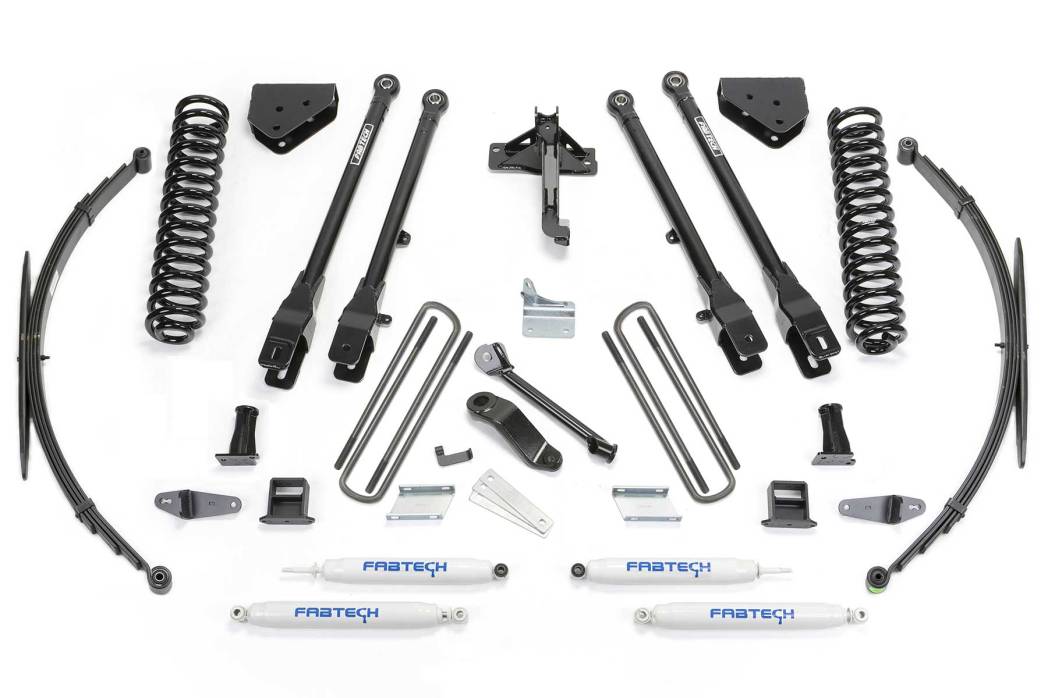

FEATURES
- 2" OD Heavy Wall Links
- Fabtech Heavy Duty 5 Ton Joints®
- Fabtech Front Coil Springs
- Trac Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Leaf Springs
- Rear U-bolt Kit
PART NUMBERS
OTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS22025BK | COIL BOX KIT |
1 | FTS22140 | COMPONENT BOX 1 |
1 | FTS22080BK | COMPONENT BOX 2 |
1 | FTS22114 | REAR LEAF SPRING KIT |
2 | FTS7189 | FRONT PERFORMANCE SHOCKS |
2 | FTS7266 | REAR PERFORMANCE SHOCKS |
FOOTNOTES
3. Non dually models only.
27. Front drive shaft modification may be required to clear exhaust on gas motor.
29. Rear leaf springs may reduce load carrying capacity.
Application List
2008-2016 Ford F350 Super Duty 4WD
2008-2013 Ford F450 Super Duty 4WD 8 Lug
Tires & Wheels
Tire Size – 37/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming
Details
- K2129
- K2129
- 674866030138
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 547.6 lbs.
- W24.0000” x H12.0000” x L48.0000”
- $300.00
- Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
