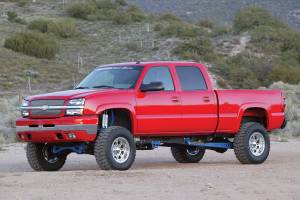

FTSK1014DL | Fabtech 6 Inch Performance System With Dirt Logic Shocks (2001-2010 Silverado, Sierra 2500 HD, 3500 HD)

2001-2010 Chevrolet Silverado 2500 HD, 3500 HD | 2001-2010 GMC Sierra 2500 HD, 3500 HD

K1014DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $5,327.68
Qty:

Description

DESCRIPTION

2001-10 CHEVY SILVERADO 2500HD/3500HD | GMC SIERRA 2500HD/3500HD 2WD/4WD

Our 6" system for 2001-10 GM HD’s has been designed to provide superior suspension performance for daily driving or for offroad. This is accomplished using our proven one piece lower control arm crossmembers and extended length steering knuckles with a multitude of shock absorber options. The 1/4" thick arched lower control arms crossmembers include an integrated front differential skid plate, crossmembers support tubes and rear impact struts to distribute front suspension impact loads through the frame evenly. A new knuckle design was introduced in 2007 with this system that provides reduced track width to keep the tires under the fenders. This system also includes torsion bar drop mounts, extended length sway bar links with urethane bushings, front and rear bump stop brackets, and rear blocks.

FEATURES

  • Heavy Duty 1/4" Thick, High Arched Crossmember
  • Front Differential Skid Plate
  • Ductile Iron Steering Knuckles
  • Torsion Bar Drop Brackets
  • Impact Struts
  • Billet Sway Bar End Links
  • Rear Block & U-bolt Kit

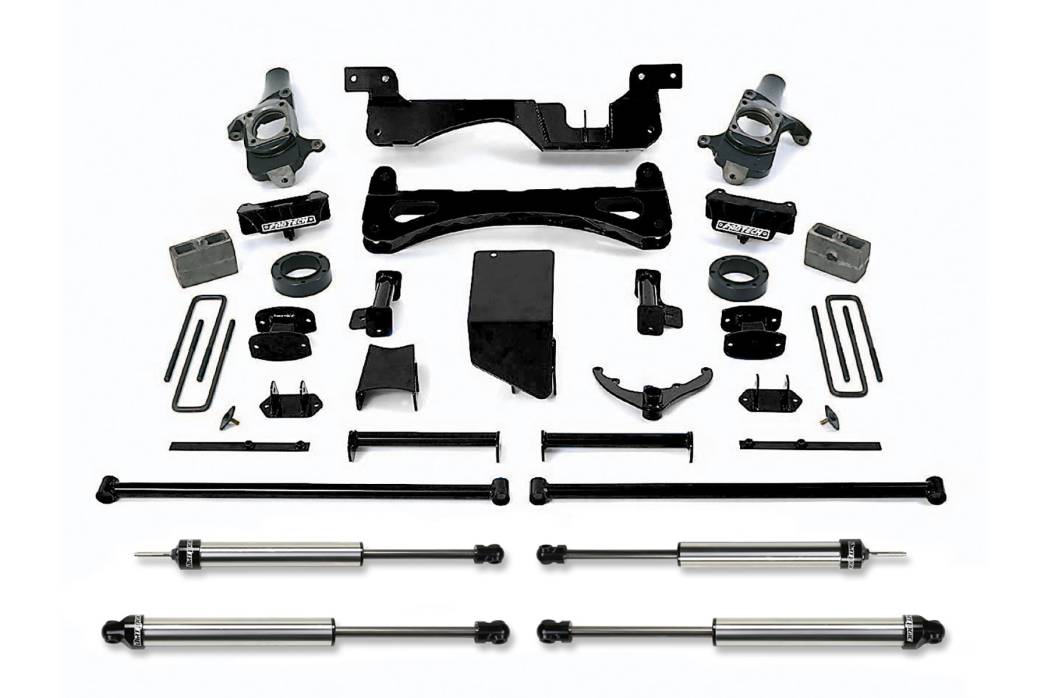

PART NUMBERS

QTY PART # DESCRIPTION
1 FTS21008BK COMPONENT BOX 1
1 FTS21009BK COMPONENT BOX 2
2 FTS810172 FRONT DIRT LOGIC 2.25 NON RESI
2 FTS810182 REAR DIRT LOGIC 2.25 NON RESI

FOOTNOTES

3. Non dually models only.
4. Larger tires cannot be installed on OEM wheels.
12. Does not fit models with Quadrasteer.
14. Can not use OEM wheel & tire.
15. Will experience some loss of turning radius.
50. Installation requires welding.

Application List

2001-2010 Chevrolet Silverado 2500 HD 2WD/4WD
2001-2010 Chevrolet Silverado 3500 HD 2WD/4WD
2001-2010 GMC Sierra 2500 HD 2WD/4WD
2001-2010 GMC Sierra 3500 HD 2WD/4WD


FOOTNOTES
3. Non dually models only.
4. Larger tires cannot be installed on OEM wheels.
12. Does not fit models with Quadrasteer.
14. Can not use OEM wheel & tire.
15. Will experience some loss of turning radius.
50. Installation requires welding.

Tires & Wheels

Tire Size – 315/75R16 Wheel Size – 16×8 w/ 4 5/8in BS w/minor trimming
Tire Size – 315/70R17 Wheel Size – 17×8 w/ 4 5/8in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18×8 w/ 5in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×8.5 w/ 4 3/4in BS w/minor trimming

Application List

2001-2010 Chevrolet Silverado 2500 HD 2WD/4WD
2001-2010 Chevrolet Silverado 3500 HD 2WD/4WD
2001-2010 GMC Sierra 2500 HD 2WD/4WD
2001-2010 GMC Sierra 3500 HD 2WD/4WD
