FTSK5000 | Fabtech 6 Inch Performance System With Performance Shocks (2003-2008 H2 4WD with Rear Coil Springs)

2003-2008 Hummer H2 4WD | With Rear Coil Springs

K5000
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $5,312.18
Qty:

Description

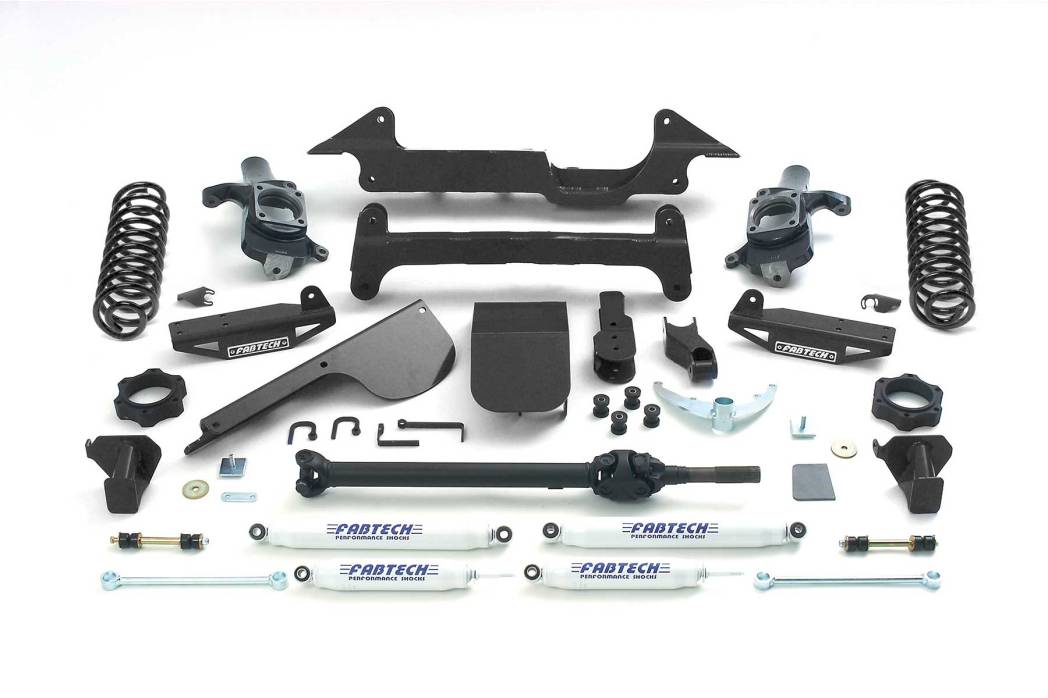

6″ PERFORMANCE SYSTEM W/ PERFORMANCE SHOCKS – K5000

Our Hummer system is constructed much like all of our IFS systems with extended steering knuckles and high clearance crossmembers but the similarities stop there. To properly address the H2’s fulltime transfer case we include a CV style front driveshaft with this system to provide smooth driveline operation. Also unique to this system is two 1/4" thick skid plates, one for the front differential and one for the transfer case. Rear lift comes from replacement coil springs that are driver and passenger specific.

  • Extended Length Ductile Iron Spindles
  • 1/4" Thick High Arched Crossmembers
  • Two 1/4" Thick Skid Plates
  • Front CV Driveshaft
  • Rear Coil Springs
OTY PART # DESCRIPTION
1 FTS27003BK COMPONENT BOX 1
1 FTS27004BK COMPONENT BOX 2
1 FTS27005BK COMPONENT BOX 3
2 FTS7191 FRONT PERFORMANCE SHOCKS
2 FTS7266 REAR PERFORMANCE SHOCKS

FOOTNOTES

61. Includes front CV Driveshaft.

Application List

2003-2008 Hummer H2 with Rear Coil Springs

Tires & Wheels

Tire Size – 37/12.50R17 Wheel Size – 17×10 w/ 4 5/8in BS w/minor trimming
Tire Size – 37/13.50R20 Wheel Size – 20×10 w/ 5in BS w/minor trimming
Tire Size – 38/15.50R18 Wheel Size – 18×10 w/ 5in BS w/minor trimming
Tire Size – 40/13.50R17 Wheel Size – 17×10 w/ 4 5/8in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 354.3 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
