FTSK2147DL | Fabtech 10 Inch Radius Arm System With Coils and DLSS Shocks (2011-2016 F250 Super Duty 4WD)

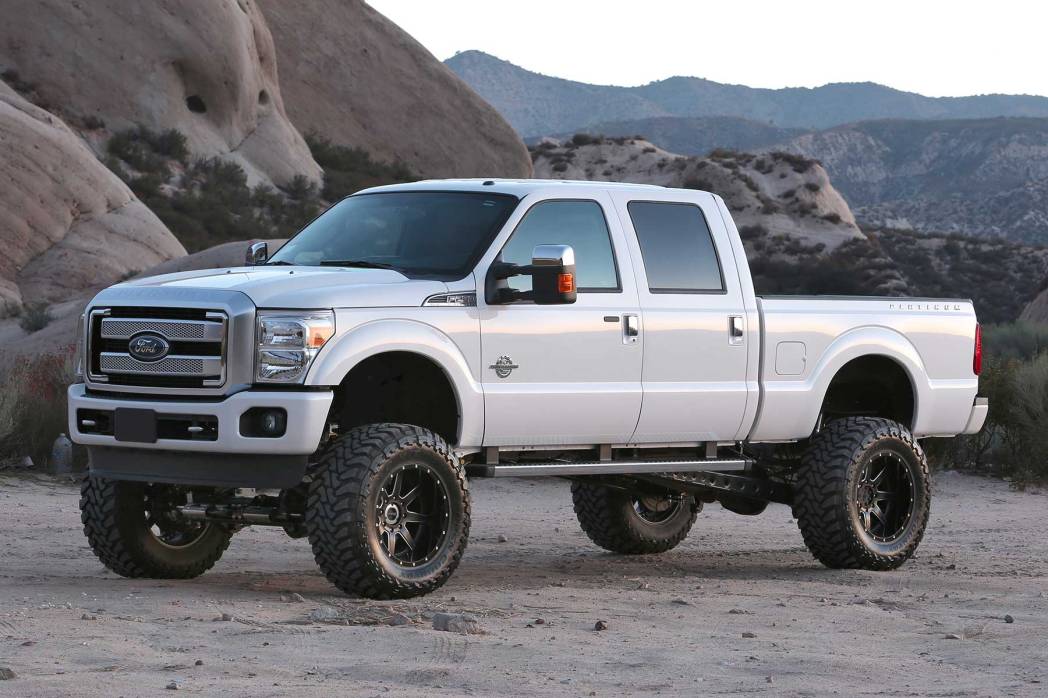

2011-2016 Ford F250 Super Duty 4WD
K2147DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing:
$6,391.89
Description
2011-16 FORD F250 4WD

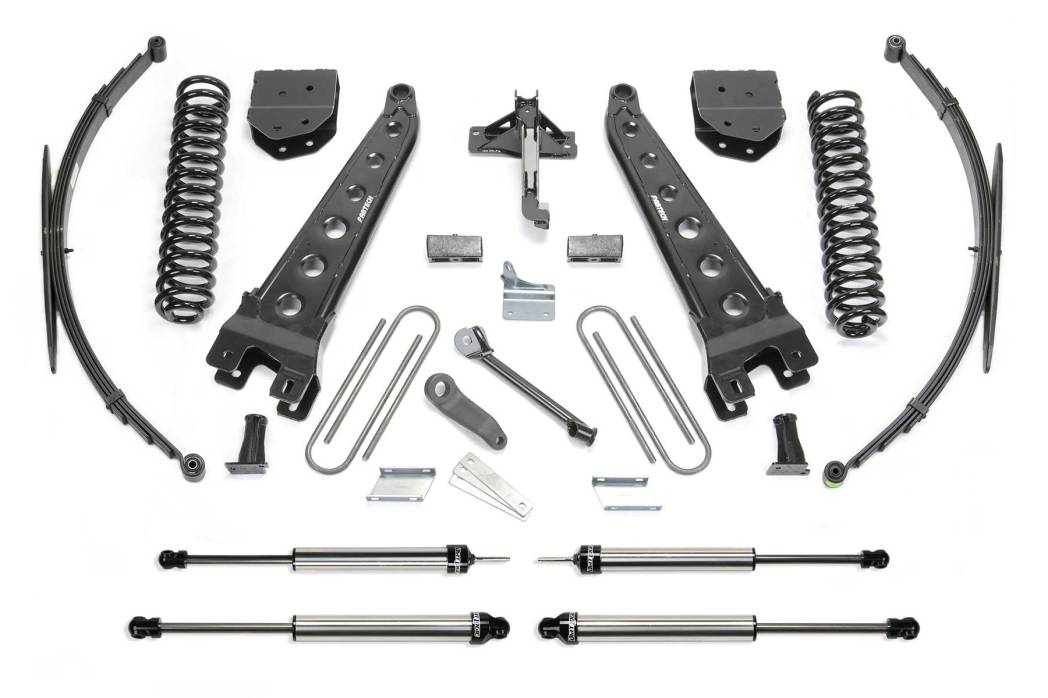

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift includes Fabtech Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift comes from replacement Leaf Springs and a Block & U-bolt kit.
FEATURES
- Fabtech Replacement Radius Arms
- Front Coil Springs
- Trac Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Leaf Springs
- Rear Block & U-bolt Kit
PART NUMBERS
| OTY | PART # | DESCRIPTION |
|---|---|---|
| 1 | FTS22081BK | COMPONENT BOX 1 |
| 1 | FTS22144 | COMPONENT BOX 2 |
| 1 | FTS22107 | REAR BLOCK & LEAF SPRING KIT |
| 2 | FTS810392 | FRONT DIRT LOGIC 2.25 SHOCK |
| 2 | FTS810652 | REAR DIRT LOGIC 2.25 SHOCK |
FOOTNOTES
27. Front drive shaft modification may be required to clear exhaust on gas motor.
29. Rear leaf springs may reduce load carrying capacity.
Application List
2011-2016 Ford F250 Super Duty 4WD
Tires & Wheels
Tire Size – 40/12.50R17 Wheel Size – 17×9 w/ 4 5/8in BS w/minor trimming
Tire Size – 40/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming
Tire Size – 40/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming
Details
- K2147DL
- K2147DL
- 674866097117
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 578.4 lbs.
- W24.0000” x H12.0000” x L48.0000”
- $300.00
- Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
