FTSK1026DL | Fabtech 6 Inch Performance System W Dirt Logic 4.0 Coiloivers and Rear (2007-2013 Silverado, Sierra 1500 4WD)

2007-2013 Chevrolet Silverado 1500 4WD | 2007-2013 GMC Sierra 1500 4WD

K1026DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $6,832.02
Qty:

Description

DESCRIPTION

2007-13 CHEVY SILVERADO 1500 | GMC SIERRA 1500 4WD

Our 6" Suspension systems for the T900 platform uses our industry leading crossmember and spindle technology. Fabtech pushes the envelope with superior ride height to properly clear 35" tall tires. Extensive design work was given to the extended length steering knuckles to keep the track width near stock with superior turning radius for maneuverability in tight spots. Lower control arm crossmembers are strengthened with cross tubes backed up by tubular frame struts to distribute front suspension impact loads. The front differential is protected with a tightly formed 1/4" thick steel skid plate. Rear suspension lift is accomplished via a block and add-a-leaf system. The Performance system offers Dirt Logic 4.0 Adjustable Coilover shock in place of the factory front coilover assembly. This system has been properly designed to work with the factory Stabilitrak® safety functions without reprogramming the vehicle’s computer.

FEATURES

  • Heavy Duty 1/4" Thick, High Arched Crossmember
  • Front Differential Skid Plate
  • Ductile Iron Steering Knuckles
  • Impact Struts
  • Rear Add-a-leaf
  • Rear Block & U-bolt Kit

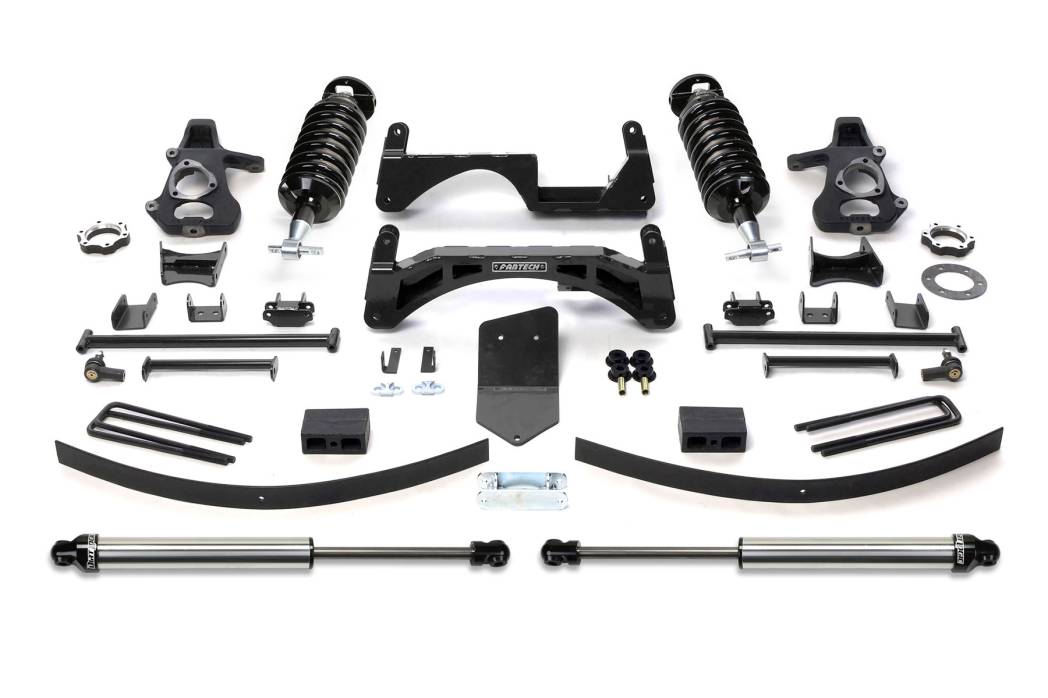

QTY PART # DESCRIPTION
1 FTS21040BK COMPONENT BOX 1
1 FTS21046BK COMPONENT BOX 2
2 FTS835032 FRONT DIRT LOGIC 4.0 COILOVERS
2 FTS810562 REAR DIRT LOGIC 2.25 NON RESI

FOOTNOTES

1. Will not fit models with Factory AutoRide shocks.
8. Will not fit all wheel drive models.
17. Does not fit standard cab models.

Application List

2007-2013 Chevrolet Silverado 1500 4WD
2007-2013 GMC Sierra 1500 4WD

Tires & Wheels

Tire Size – 35/12.50R17 Wheel Size – 17×8 w/ 5in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 419.7 lbs.
  • W24.0000” x H12.0000” x L48.0000”
