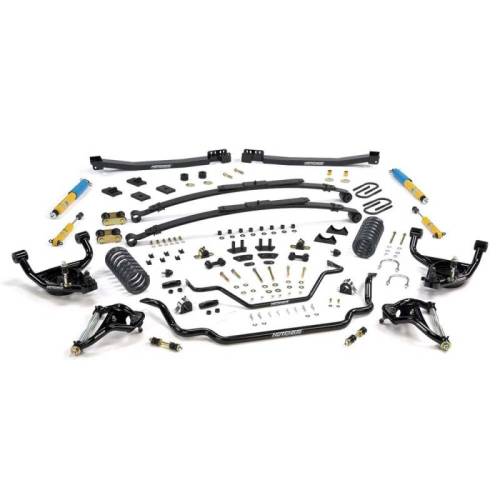

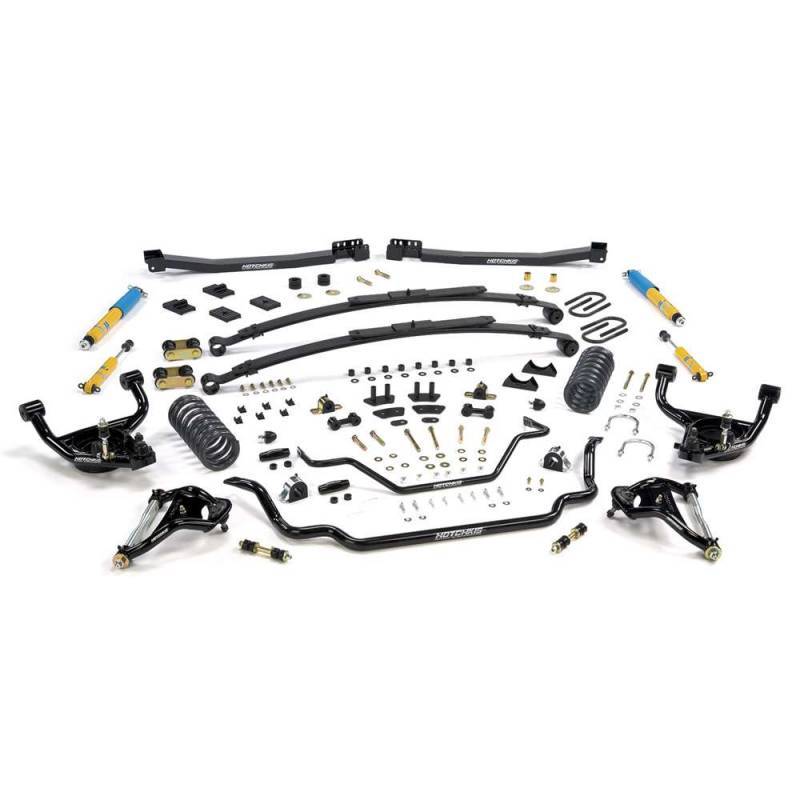

80016-27 Total Vehicle Suspension System Stage 2

Chevrolet
1977-1981 Camaro with Big Block

80016-27
Please Call for Availability
1-800-606-3767
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)

Description

Applications: 1977-1981 Camaro Coupes with Big Block motors. Recommended for Big Block Cars and Pontiac 7.5L/455 CI Big Block. Pontiac Motors Under 7.5L/455 CI and Big Blocks with Aluminum Heads Should Use Small Block Application

Hotchkis Sport Suspension 80016-27 Stage 2 TVS Kit Extreme with 2 in. drop for 1977-1981 Camaro Coupes with Big Block motors. Includes Adjustable Rear Sway Bars 1 3/8 in. Front and 7/8 in. in rear with Chassis Max Sway Bar Brace 2 in. Lowered Sport Springs 1.5 in. Lowered Leaf Springs (3 Inch Kit Also Available) and Front and Rear Hotchkis Tuned/Bilstein Shocks Sub Frame Connectors (Chassis Max Brace Also Included on Convertible Kits) all necessary Hardware and Bushings with Heavy Duty Tie Rod Sleeves also included. One Convenient Kit for the ultimate handling GM F-Body Camaro nothing beats the Hotchkis Sport Suspension Stage 2 Total Vehicle System. This kit has been rigorously designed and tested on the track yet is very comfortable for your local cruise in. Every aspect of the suspension has been re engineered for the maximum performance and is being offered in a complete tuned package. In front we start out with Tubular Upper and Lower Control Arms which increase caster and improves the camber curve creating more front end grip and traction. Heavy duty tie rod sleeves hold the alignment while 2 in. (3 in. also available) lowered sport springs and Hotchkis Tuned/Bilstein shocks improve vehicle control and stance. A massive 1 3/8 in. front sway bar and 7/8 in. adjustable rear sway bar reduce body roll and improve handling. To improve traction and reduce wheel hop the rear gets a 1.5 in. (3 in. also available) multi leaf drop spring which features a Hotchkis exclusive design that utilizes an overload spring to reduce axle wrap up. The kit comes complete with heavy duty shackles u-bolts pads and all necessary hardware. To stiffen the chassis Hotchkis includes sub frame connectors and a rear sway bar cross member creating a complete package. This system is a proven autocross winner and designed for maximum performance improvement in a installer friendly kit. PROUDLY MADE IN THE USA

Features and Benefits:
Engineered To Work Together As Suspension Package
No Mixing and Matching Parts. One Convenient Kit
Tubular Upper and Lower Control Arms
1 3/8 in. Front and 7/8 in. Adjustable Rear Sway Bar
2 in. Lowered Sport Springs, 1.5 in. Lowered Leaf Springs
Front and Rear Hotchkis Tuned/Bilstein Shocks
Complete Hardware and Bushings

Product Attributes
Coil Spring Quantity 2 Front
Includes Leaf Spring Bushings Yes
Includes Sway Bar Bushings Yes
Includes End Link Bushings Yes
Bushing Material Polyurethane
Bushing Color Black

Vehicle Fitments

1977-1981 Chevrolet Camaro

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 125.0 lbs.
  • W12.0000” x H48.0000” x L12.0000”
