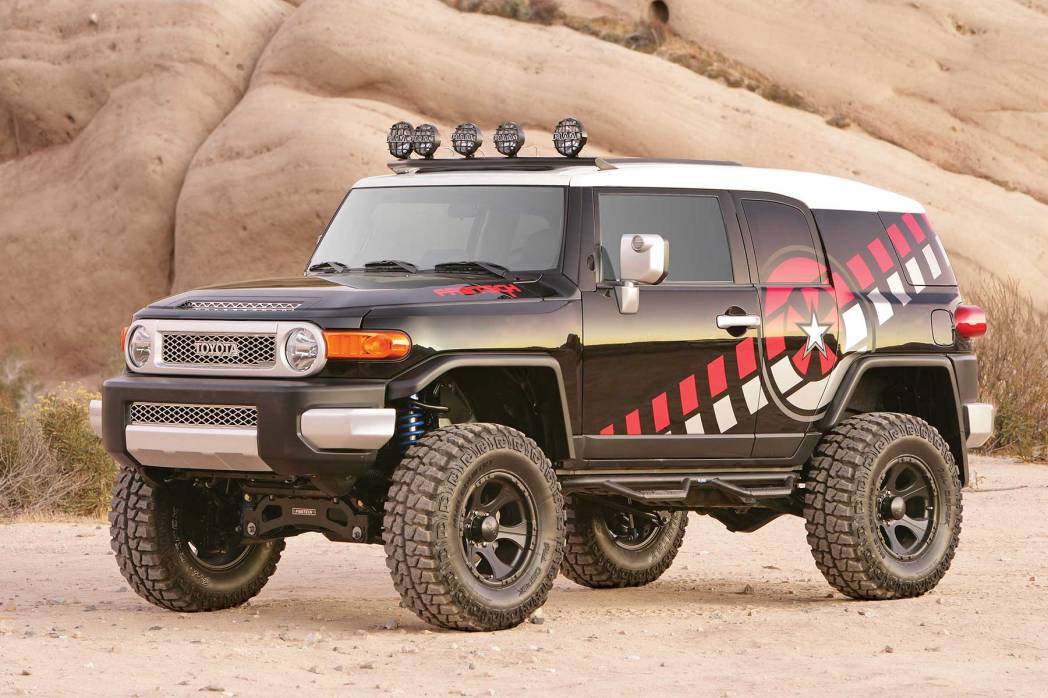

Fabtech’s FJ system features extended length steering knuckles attaching to one piece lower control arm crossmembers for a full 6 inches of lift to clear 35” tires. Front lower crossmembers feature adjustable alignment cams along with an integrated 1/4” thick steel differential skid plate. The Basic system retains the front strut assembly for a smooth highway ride with ease of installation. The Performance system includes Fabtech’s Dirt Logic 2.5 Coilover shocks, replacing the stock front strut assemblies. The rear suspension systems include tubular upper and lower link arms, utilizing the stock rear coil springs for a supple highway ride with excellent offroad articulation. Installation does not require relocation of the Rack and Pinion or disassembly of the front strut assemblies. The stock front and rear driveshafts are retained due to Fabtech’s precise suspension geometry.

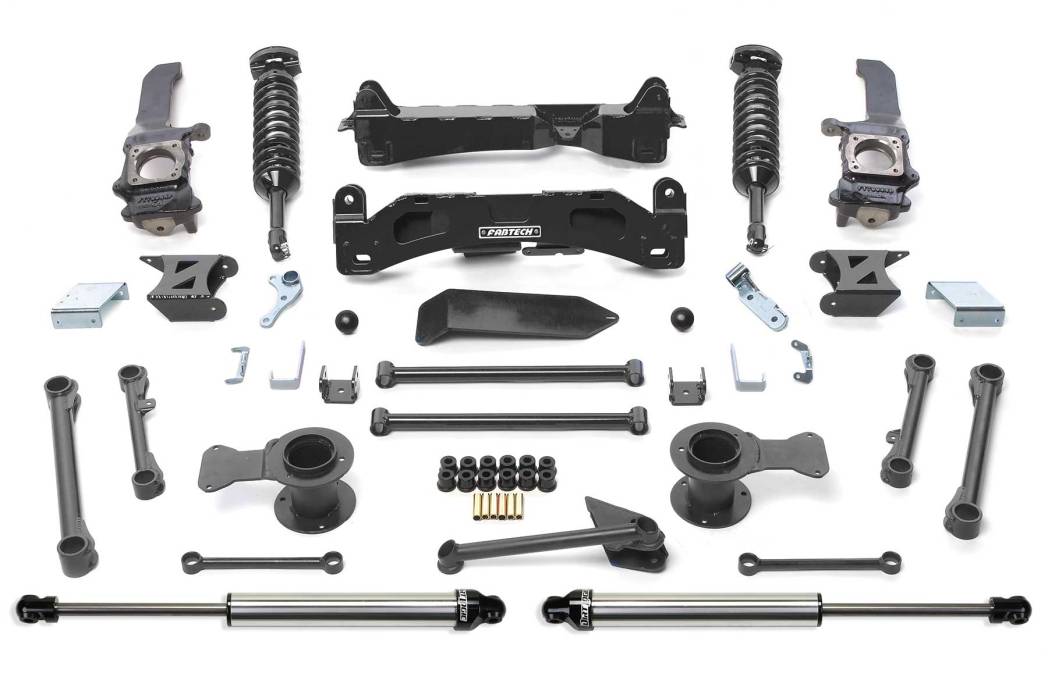

FEATURES

• Heavy Duty 1/4″ Thick, High Arched Crossmember
• Ductile Iron Steering Knuckles
• Heavy Duty 1/4" Thick Steel Skid Plate
• Front Dirt Logic 2.5 Coilovers
• Impact Struts
• Sway Bar links
• Rear Upper & Lower Link Arms
• Rear Coil Spring Spacers

PART NUMBERS

FOOTNOTES

68. Kit does not fit models with factory electronic controlled shocks.
