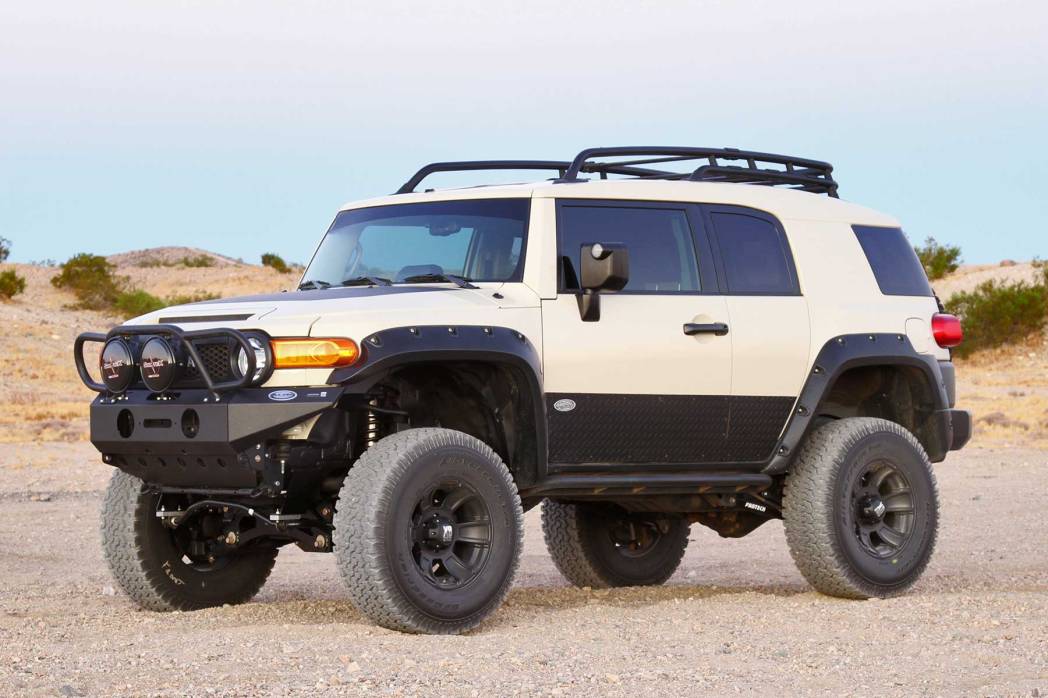

FTSK7025DL | Fabtech 6 Inch Performance System With Dirt LogicSS 2.5 Coiloverss and Rear DLSS (2010-2013 FJ Cruiser 4WD)

2010-2013 Toyota FJ Cruiser 4WD

K7025DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Pricing: $7,221.75
Qty:

Description

6″ PERFORMANCE SYSTEM W/ FRONT DIRT LOGIC 2.5 COILOVERS & REAR DIRT LOGIC SHOCKS – K7025DL

2010-13 TOYOTA FJ 2WD/4WD

Fabtech’s FJ system features extended length steering knuckles attaching to one piece lower control arm crossmembers for a full 6 inches of lift to clear 35" tires. Front lower crossmembers feature adjustable alignment cams along with an integrated 1/4" thick steel differential skid plate. The Performance system includes Fabtech’s Dirt Logic 2.5 Coilover shocks, replacing the stock front strut assemblies. The Performance rear suspension systems include tubular upper and lower link arms, utilizing the stock rear coil springs for a supple highway ride with excellent offroad articulation. Installation does not require relocation of the Rack and Pinion or disassembly of the front strut assemblies. The stock front and rear driveshafts are retained due to Fabtech’s precise suspension geometry.

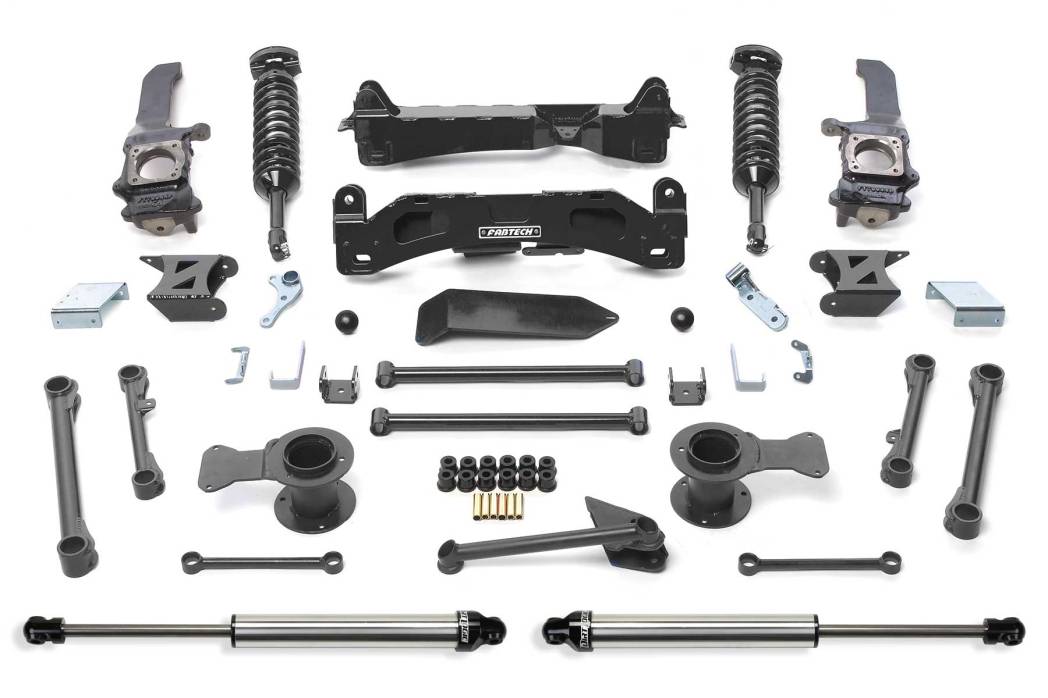

  • Heavy Duty 1/4" Thick, High Arched Crossmember
  • Ductile Iron Steering Knuckles
  • Heavy Duty 1/4" Thick Steel Skid Plate
  • Front Dirt Logic 2.5 Coilovers
  • Impact Struts
  • Sway Bar links
  • Rear Upper & Lower Link Arms
  • Rear Coil Spring Spacers

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS26032 COMPONENT BOX 1
1 FTS26033 COMPONENT BOX 2
1 FTS26059 FRONT DIRT LOGIC 2.5 COILOVERS
1 FTS26018BK REAR BOX KIT
2 FTS810542 REAR DIRT LOGIC 2.25 NON RESI

FOOTNOTES

68. Kit does not fit models with factory electronic controlled shocks.

Application List

2010-2013 Toyota FJ Cruiser 4WD

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 358.2 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
