FTSK2146DL | Fabtech 6 Inch 4 Link System With DLSS Coilovers and Rear Shocks (2011-16 F350, 450 Super Duty 4WD 8 LUG)

2011-2016 Ford F350 Super Duty 4WD | 2011-2013 Ford F450 Super Duty 4WD 8 Lug

K2146DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Pricing: $9,993.71
Qty:

Description

2011-16 FORD F350 4WD
2011-13 FORD F450 4WD [8 LUG]

At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our front Dirt Logic 4.0 Coilover conversion. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift is a Block & U-bolt kit.

FEATURES

  • 2" OD Heavy Wall Links
  • Fabtech Heavy Duty 5 Ton Joints®
  • Front Dirt Logic 4.0 Coilovers
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Block & U-bolt Kit

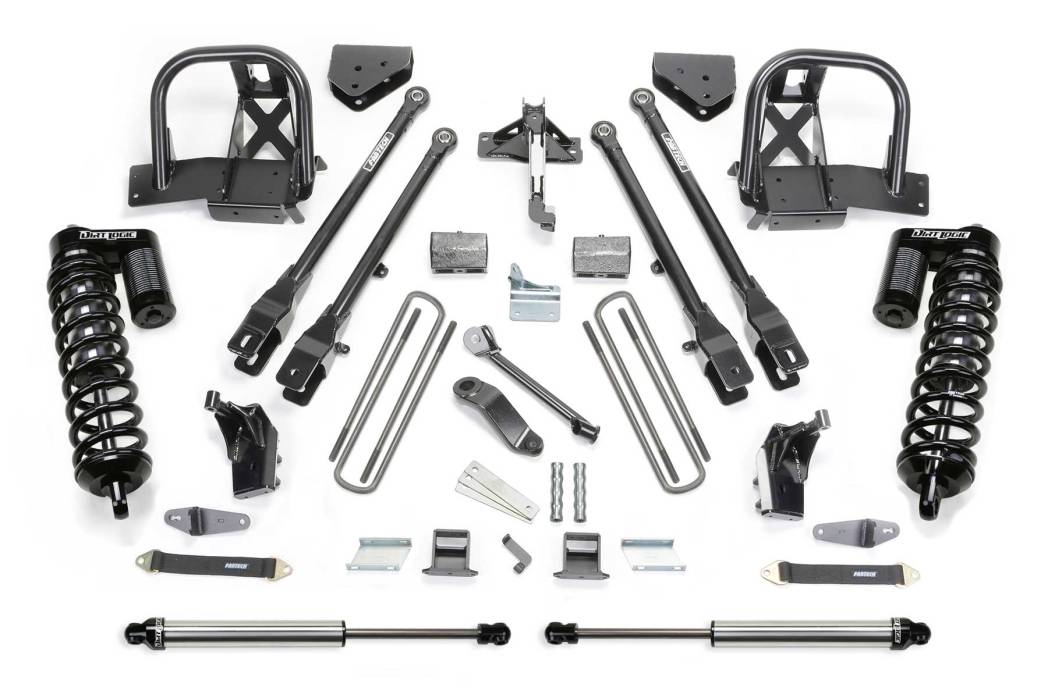

OTY PART # DESCRIPTION
1 FTS22140 COMPONENT BOX 1
1 FTS22143 COMPONENT BOX 2
1 FTS22080BK COMPONENT BOX 3
2 FTS835002 FRONT DIRT LOGIC 4.0 COILOVER
1 FTS22103 REAR BLOCK KIT
2 FTS810052 REAR DIRT LOGIC 2.25 NON RESI

FOOTNOTES

3. Non dually models only.
27. Front drive shaft modification may be required to clear exhaust on gas motors.

Application List

2011-2016 Ford F350 Super Duty 4WD
2011-2013 Ford F450 Super Duty 4WD 8 Lug

Tires & Wheels

Tire Size – 315/70R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 452.4 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
