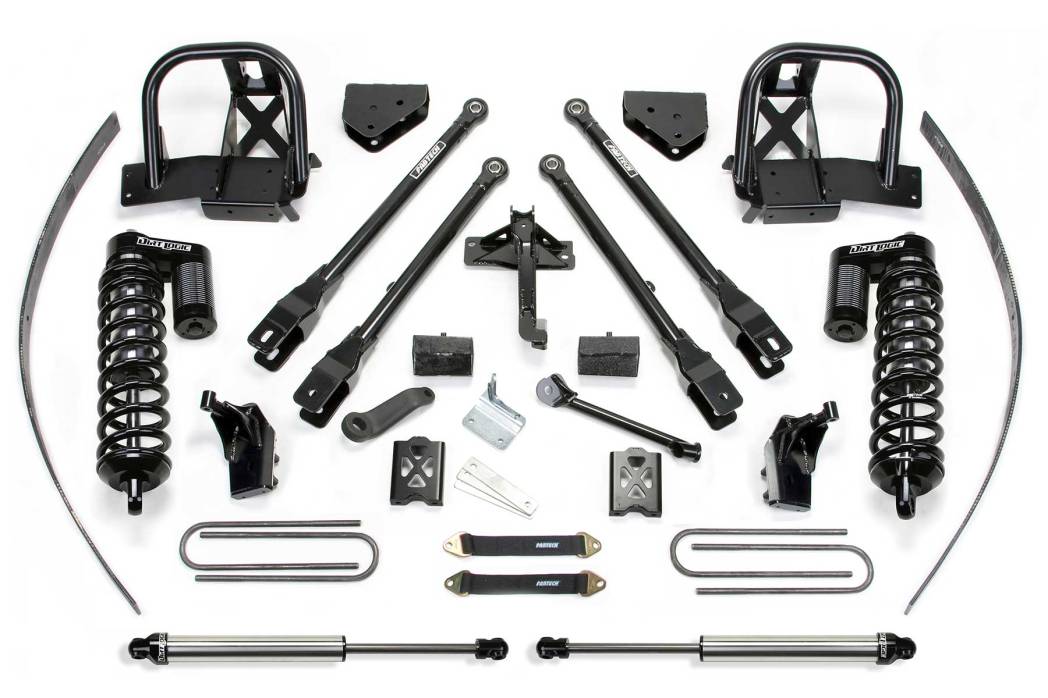

FTSK2142DL | Fabtech 8 Inch 4 Link System With DLSS Coilovers and Rear Shocks (2011-2016 F250 Super Duty 4WD with Factory Overload)

2011-2016 Ford F250 Super Duty 4WD | With Factory Overloads

K2142DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $10,169.07
Qty:

Description

2011-16 FORD F250 4WD

At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our front Dirt Logic 4.0 Coilover conversion. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift is an Add-a-leaf and block & u-bolt kit.

FEATURES

  • 2" OD Heavy Wall Links
  • Fabtech Heavy Duty 5 Ton Joints®
  • Front Dirt Logic 4.0 Coilovers
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Add-a-Leaf
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22140 COMPONENT BOX 1
1 FTS22143 COMPONENT BOX 2
1 FTS22080BK COMPONENT BOX 3
2 FTS835012 FRONT DIRT LOGIC 4.0 COILOVER
1 FTS22105 REAR BLOCK & ADD-A-LEAF KIT
2 FTS810052 REAR DIRT LOGIC 2.25 NON RESI

FOOTNOTES

27. Front drive shaft modification may be required to clear exhaust on gas motor.

Application List

2011-2016 Ford F250 Super Duty 4WD With Factory Overloads

Tires & Wheels

Tire Size – 355/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 37/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 494.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
