FTSK2151DL | Fabtech 10 Inch Radius Arm System With DLSS 4.0 Coilovers and Rear Shocks DLSS (2011-2016 F250 Super Duty 4WD)
2011-2016 Ford F250 Super Duty 4WD
K2151DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing:
$10,376.28
Description
2011-16 FORD F250 4WD
Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift includes Dirt Logic 4.0 Coilovers. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift comes from replacement Leaf Springs.

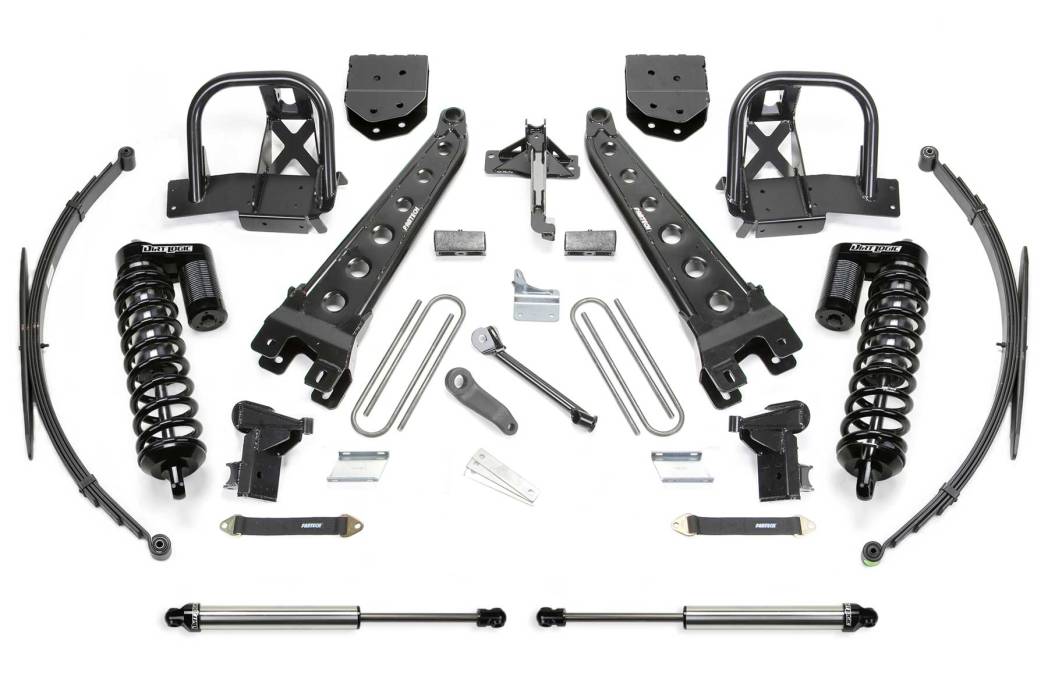

FEATURES
- Fabtech Replacement Radius Arms
- Front Dirt Logic 4.0 Coilovers
- Trac Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Leaf Springs
PART NUMBERS
| OTY | PART # | DESCRIPTION |
|---|---|---|
| 1 | FTS22144 | COMPONENT BOX 1 |
| 1 | FTS22146 | COMPONENT BOX 2 |
| 2 | FTS835012 | FRONT DIRT LOGIC 4.0 COILOVER |
| 1 | FTS22107 | REAR BLOCK & LEAF SPRING KIT |
| 2 | FTS810652 | REAR DIRT LOGIC 2.25 NON RESI |
FOOTNOTES
27. Front drive shaft modification may be required to clear exhaust on gas motor.
29. Rear leaf springs may reduce load carrying capacity.
Application List
2011-2016 Ford F250 Super Duty 4WD
Details
- K2151DL
- K2151DL
- 674866097155
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 734.4 lbs.
- W24.0000” x H12.0000” x L48.0000”
- $300.00
- Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
