FTSK2153DL | Fabtech 10 Inch Radius Arm System With DLSS 4.0 Coilovers and Rear Shocks DLSS (2011-2016 F350 Super Duty 4WD)

2011-2016 Ford F350 Super Duty 4WD | 2011-2013 Ford F450 Super Duty 4WD 8 Lug

K2153DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $10,376.28
Qty:

Description

2011-16 FORD F350 4WD
2011-13 FORD F450 4WD [8 LUG]

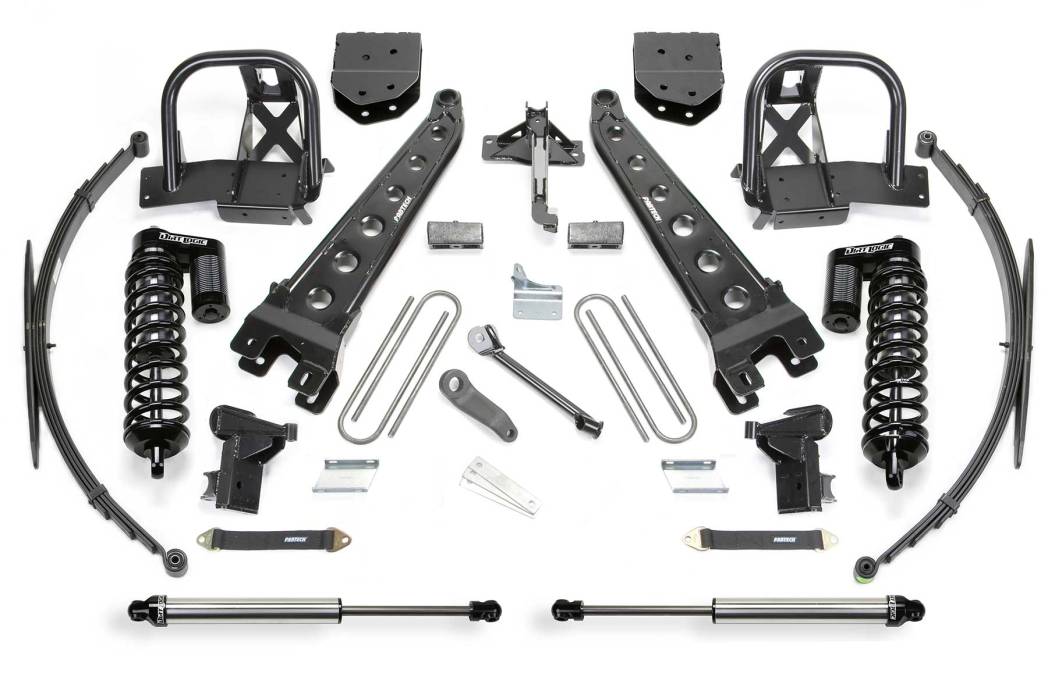

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift includes Dirt Logic 4.0 Coilovers. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift comes from replacement Leaf Springs.

FEATURES

  • Fabtech Replacement Radius Arms
  • Front Dirt Logic 4.0 Coilovers
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Leaf Springs

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22144 COMPONENT BOX 1
1 FTS22146 COMPONENT BOX 2
2 FTS835012 FRONT DIRT LOGIC 4.0 COILOVER
1 FTS22108 REAR BLOCK & LEAF SPRING KIT
2 FTS810652 REAR DIRT LOGIC 2.25 NON RESI

FOOTNOTES

3. Non dually models.
27. Front drive shaft modification may be required to clear exhaust on gas motor.
29. Rear leaf springs may reduce load carrying capacity.

Application List

2011-2016 Ford F350 Super Duty 4WD
2011-2013 Ford F450 Super Duty 4WD 8 Lug

Tires & Wheels

Tire Size – 40/12.50R17 Wheel Size – 17×9 w/ 4 5/8in BS w/minor trimming
Tire Size – 40/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 743.4 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
