FTSK2154DL | Fabtech 10 Inch 4 Link System With DLSS 4.0 Coilovers and Rear Shocks DLSS (2011-2016 F350 Super Duty 4WD )

2011-2016 Ford F350 Super Duty 4WD | 2011-2013

K2154DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $11,006.58
Qty:

Description

2011-16 FORD F350 4WD
2011-13 FORD F450 4WD [8 LUG]

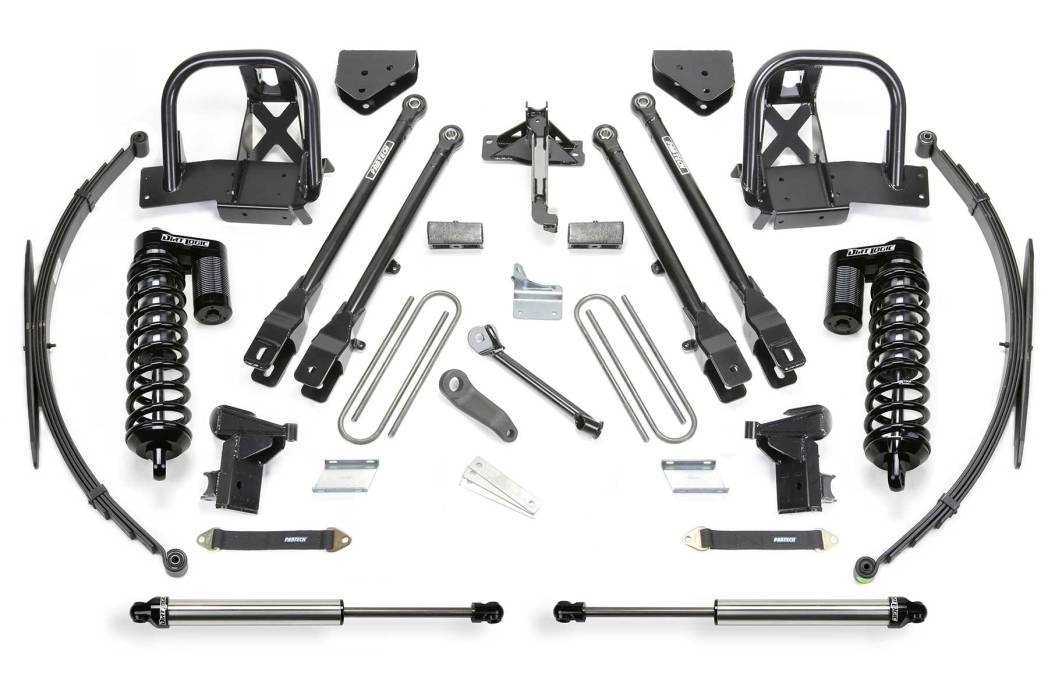

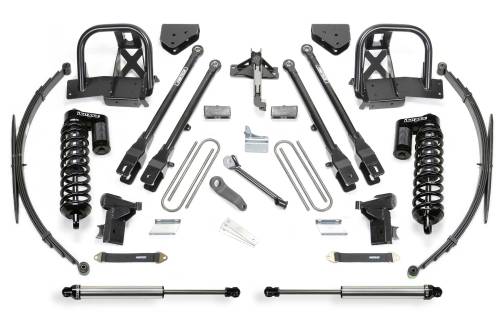

At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our front Dirt Logic 4.0 Coilovers. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift comes from replacement Leaf Springs and a Block & U-bolt kit.

FEATURES

  • 2" OD Heavy Wall Links
  • Fabtech Heavy Duty 5 Ton Joints®
  • Front Dirt Logic 4.0 Coilovers
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Leaf Springs
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22145 COMPONENT BOX 1
1 FTS22093BK COMPONENT BOX 2
1 FTS22146 COMPONENT BOX 3
2 FTS835012 FRONT DIRT LOGIC 4.0 COILOVER
1 FTS22108 REAR BLOCK & LEAF SPRING KIT
2 FTS810652 REAR DIRT LOGIC 2.25 NON RESI

FOOTNOTES

3. Non dually models.
27. Front drive shaft modification may be required to clear exhaust on gas motor.
29. Rear leaf springs may reduce load carrying capacity.

Application List

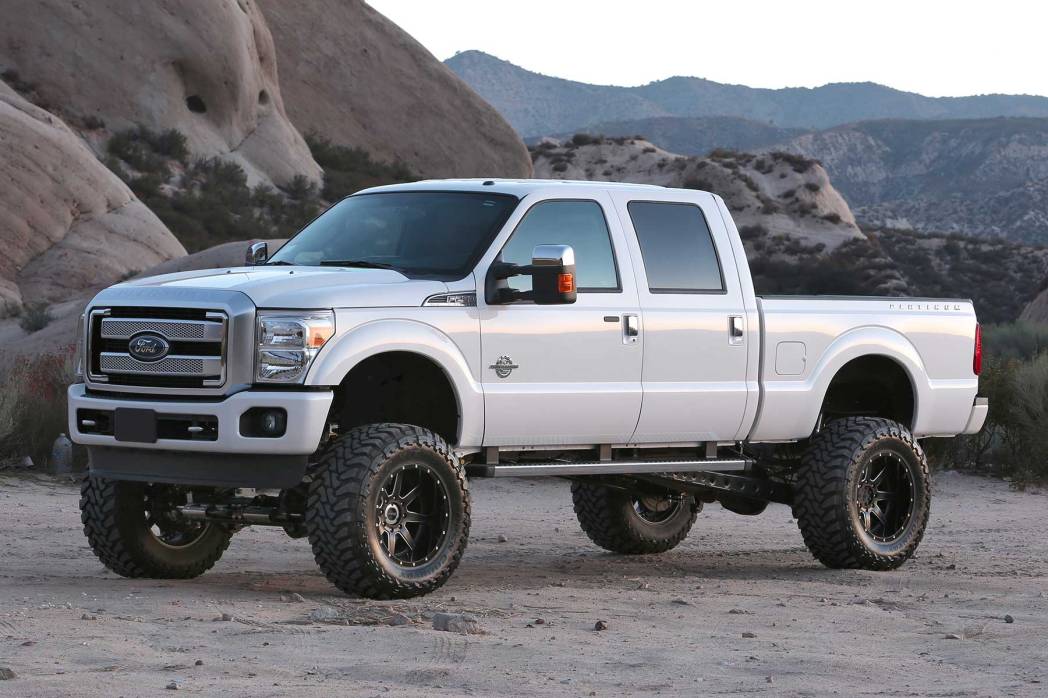

2011-2016 Ford F350 Super Duty 4WD

Tires & Wheels

Tire Size – 40/12.50R17 Wheel Size – 17×9 w/ 4 5/8in BS w/minor trimming
Tire Size – 40/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 762.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • $300.00
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
