69-2535 | ReadyLift 3.5 Inch SST Suspension Lift Kit (2011-2016 F350 Super Duty DRW | 2 Piece Drive Shaft)

2011-2016 Ford F350 Super Duty 4WD DRW | 2-PC DRIVE SHAFT ONLY

69-2535
Pricing: $1,039.94
Qty:
Free Ground Shipping | Exclusions Apply*

Description

3.5" SST LIFT KIT - FORD SUPER DUTY F250/F350 4WD DRW (2-PC DRIVE SHAFT ONLY) 2011-2016

ReadyLIFT Suspension has engineered a line of suspension products made to fit the 2011-2016 Ford Super Duty (with dually rear spring pack) equipped with diesel engines. Our 2011-2016 F250 4WD 3.5"F/3.0"R SST Lift Kit provides the exact amount of front and rear lift while allowing for wheel and tire combinations up to 35" and keeping the smooth OEM ride and drivability. The 69-2535 3.5"F/3.0"R SST Lift Kit includes 3.5" powdercoated steel coil spring spacers, sound isolators, shock extensions, sway bar frame mount spacers, bump stop extensions, carrier bearing spacer, track bar relocation bracket, radius arm drop brackets and OEM-style 5.0" Rear Lift Blocks with longer u-bolts for the dually rear spring pack. This is a great looking mild lift system that will maintain your factory ride! This great new system made to fit the 2011-2016 Ford F250 4WD with dually rear springs specifically incorporates more than just front leveling or a simple lift. Our popular 3.5" coil spacers and sound isolators retains that great OEM ride and quiet sound. Shock extensions allow you to retain the use of those great riding brand new front shocks rather than having to replace them with cheap aftermarket versions. Radius arm drop brackets and a new track bar relocation bracket keeps the suspension geometry in tact. In addition, Ford changed the front suspension on the new 2011-2016 F250 trucks and, in order to level the truck, the front sway bar frame mounts must be spaced downward. ReadyLIFT designed new sway bar mount spacers just for this reason, something you won't get with other kits. Our bumpstop extensions allows you to retain the factory distance between the bump stop and axle while a provided carrier bearing spacer gives you the opportunity to adjust your driveshaft angle as needed. The use of OEM-style cast iron 5.0" rear lift blocks (3.0" lift) in conjunction with the the 3.5" front lift will make the 2011-2016 Ford Super Duty sit with a lifted stance and approximately a 0.75" rake. ReadyLIFT's 3.5" SST Lift Kit for the 2011-2016 Ford F250 4WD Super Duty trucks is a safe, easy way to lift your Super Duty while maintaining your factory ride. Why spend thousands of dollars for an elaborate mega-lift kit that takes extensive time to install while destroying your ride when you can save money and get a great lift height that rides great and looks awesome while achieving exactly what you wanted to do. ReadyLIFT Smart Suspension Technology is used to make this kit very user friendly to install, requiring no cutting or drilling. Like all other ReadyLIFT kits, the 69-2535 F250 3.5" SST Lift Kit is guaranteed for life against manufacturing defects.

NOTE:
Does not work with the new 2011-2016 Super Duty with the 6.2 liter gas engine. Front height will differ.
The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs.
Use of this type of air bag system will void all block warranties and can cause failure of the block bump stop tang.

Application List

2011-2016 Ford F-350 Super Duty 4wd

Tires & Wheels

37" Maximum tire diameter
37x12.50 for no rub on a 9" wide wheel with 0 offset
18" - 37X12.5R18
20" - 37X12.5R20
22" - 325/60R22

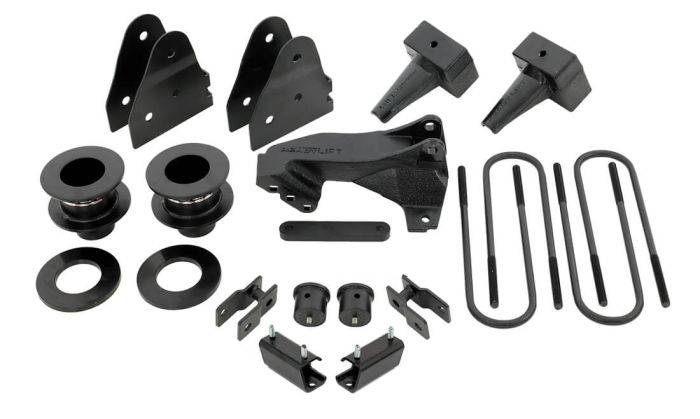

Components

Two coil spring spacers with poly sound isolators
Two front shock extensions.
Radius arm drop brackets.
Two front sway bar mount spacers.
One front track bar relocation bracket
Two OEM style cast rear lift blocks with longer u-bolts and hardware.
Two bump stop extensions.
Extended length front brake line brackets.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 84.0 lbs.
  • W20.0000” x H18.0000” x L28.0000”
  • Free Ground Shipping | Exclusions Apply*
