DJM2045H-35 | DJM Suspension 3 Inch Front / 5 Inch Rear Lowering Kit (1973-1987 C10 Pickup 2WD with 1.25 Inch Rotors)

1973-1987 Chevrolet, GMC C10 Pickup 2WD | 1.25 inch Thick Brake Rotors

DJM2045H-35
Pricing: $902.46
Qty:
Free Ground Shipping | Exclusions Apply*

Description

1973 – 1987 C10 Complete 3 Inch Front/5 Inch Rear Kit (1.25″ rotor)

The good old drop spindle, as classic as the truck it’s self, sports a 3″ drop in the front. Whats important here is to be sure to measure the width of your brake rotor. You will have either a 1″ or 1.25″ rotor. If you have a 1″ rotor use (DJM2045L-3/5).

The rear is a simple flip kit where you move the axle from beneath the leaf spring to on top of the leaf spring. No “C-section” required on your C-10 because the frame has plenty of relief built in and even though you’ve “flipped it you still have plenty of travel! Tech Tip: If your U-bolts are in bad shape, a very real possibility on a 30 - 40+ year old truck, you may consider this kit DJM2045H-3/5LTD. Same as this kit with a flip kit that includes new U-bolts and leaf spring spring plates!

Recommended parts

  • Shock number 1409
  • Shock number 2100

Application List

1973-1987 Chevrolet C-10 Pickup 2WD
1973-1987 GMC C-10 Pickup 2DW

* 1.25 Inch Thick Brake Rotors

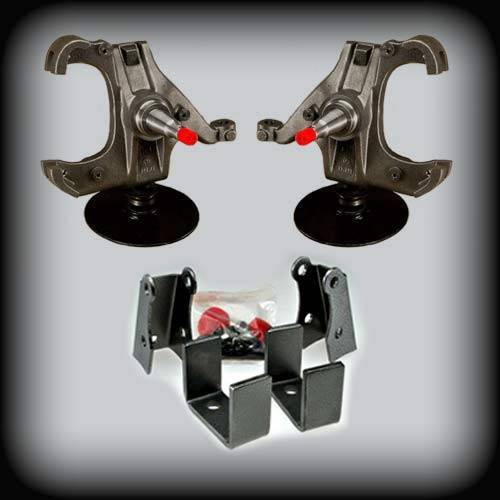

Components

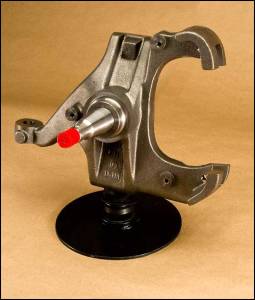

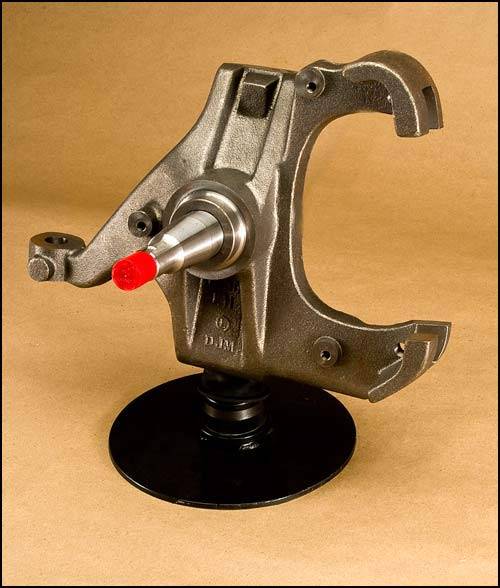

DS2045H-3 3 Inch Front Drop Spindles

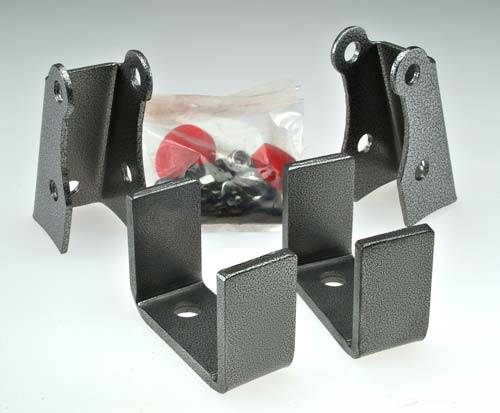

FK1024-5 5 Inch Rear Flip Kit

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 75.0 lbs.
  • W12.0000” x H12.0000” x L36.0000”
  • Free Ground Shipping | Exclusions Apply*
