DJM2045L-55 | DJM Suspension 5 Inch Front / 5 Inch Rear Lowering Kit (1973-1987 C10 Pickup 2WD with 1.0 Inch Rotors)

1973-1987 Chevrolet, GMC C10 Pickup 2WD | 1.0 inch Thick Brake Rotors

DJM2045L-55
Pricing: $887.10
Qty:
Free Ground Shipping | Exclusions Apply*

Description

1973 – 1987 C10 Complete DJM 5/5 Kit
Note: Measure the width of your disc brake rotor - why? read below

The good old drop spindle, as classic as the truck it’s self, sports a 3" drop in the front. Whats important here is to be sure to measure the width of your brake rotor. You will have either a 1" or 1.25" rotor. If you have a 1.25" rotor use (DJM2045H-5/5). Pair the spindles up with a set of 2" engineered DJM drop springs, combined you end up with about 5" of total drop in the front!

The rear is a simple flip kit where you move the axle from beneath the leaf spring to on top of the leaf spring. No “C-section” required on your C-10 because the frame has plenty of relief built in and even though you’ve “flipped" it you still have plenty of travel! Tech Tip: If your U-bolts are in bad shape, a very real possibility on a 30 - 40+ year old truck, you may consider this kit DJM2045L-5/5 LTD. Same as this kit with a flip kit that includes new U-bolts and leaf spring spring plates!

Vehicle Applications

1973-1987 Chevrolet C-10 Pickup 2wd
1973-1987 GMC C-10 Pickup 2wd

* 1.0 Inch Thick Brake Rotor

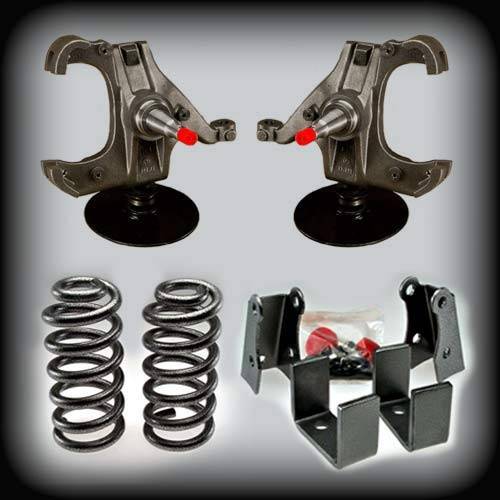

Components

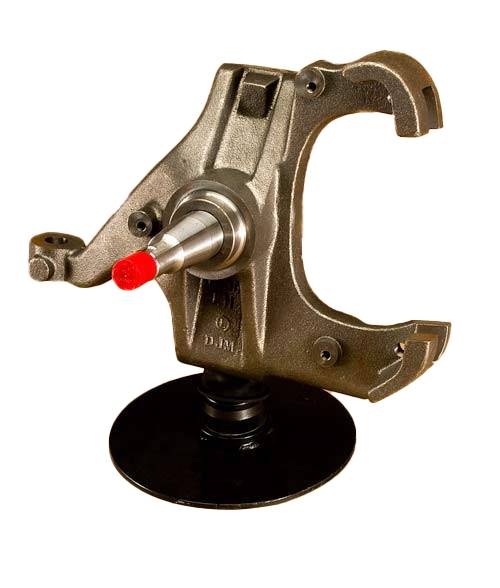

DS2045L-3 3 Inch Front Drop Spindles

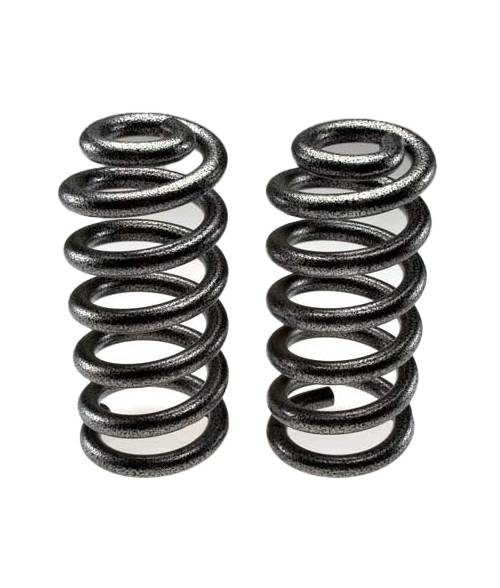

CS2353-2 2 Inch Front Lowering coils

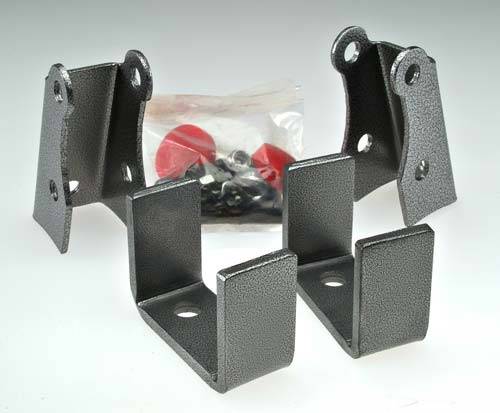

FK1024-5 5 Inch Rear Flip Kit

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 75.0 lbs.
  • W12.0000” x H12.0000” x L36.0000”
  • Free Ground Shipping | Exclusions Apply*
